Auto Parts Custom Fender

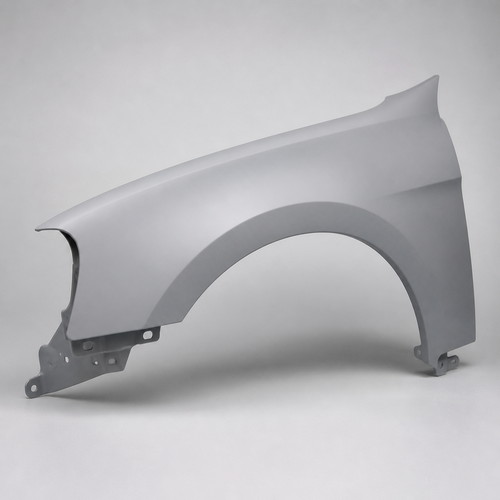

When a vehicle leaves the assembly line, the parts most exposed to flying gravel, road salt and standing water are the ones buyers notice last and replace most often. An Auto Parts Custom Fender is the plastic shield that sits between the tyre and the body, and it earns its place by absorbing punishment that would otherwise reach painted steel and wiring. P&M, based in Yuyao, Ningbo, Zhejiang, China — the region known as the Mould City, Plastic Kingdom — builds these components from the tooling up, so the geometry, material grade and surface texture are decided together rather than assembled from whatever a catalogue offers. A front fender liner must follow a complex wheel-arch curve while leaving clearance for suspension travel; a rear unit on a light truck has to cope with heavier debris loads and a body-on-frame gap that changes as the chassis flexes. Our engineers work from CAD, PRO-E and UG data, typically producing a design layout in one to three days, then move straight into 3D printing for fit checks before any steel is cut. Because the same team designs the mould, machines it, moulds the part and finishes it, an Auto Parts Custom Fender project moves through a single one-stop chain: 3D design, 3D printing, mould making, plastic injection, product assembly, surface printing and spraying. That continuity matters when a buyer needs a runner revised or a locating tab moved, since the change is handled by the people who already know the part.

P&M Auto Parts Custom Fender Molding Introduction

The materials chosen for a fender or mudguard decide how it behaves in the real world. Polypropylene (PP) is the workhorse: it is light, chemically resistant and tolerates the flex that a large panel experiences when it is pushed onto clips. TPO blends add low-temperature impact strength and a finer paint finish, which is why painted fender extensions and wheel-arch trims often use it. ABS offers a stiffer, glossier surface and takes graining and paint well but needs impact modification; PC-ABS combines that stiffness with toughness, making it a common choice for visible trims that must resist stone chips without cracking. Glass-filled grades — typically PP or PA with short glass fibres — raise stiffness and heat resistance for brackets, mounting bosses and structural sections of a liner where deflection must stay minimal. UV stabilisers and carbon-black masterbatch are routinely compounded into the resin, because a part that lives in sun and spray must resist chalking, colour shift and embrittlement over years of service rather than months.

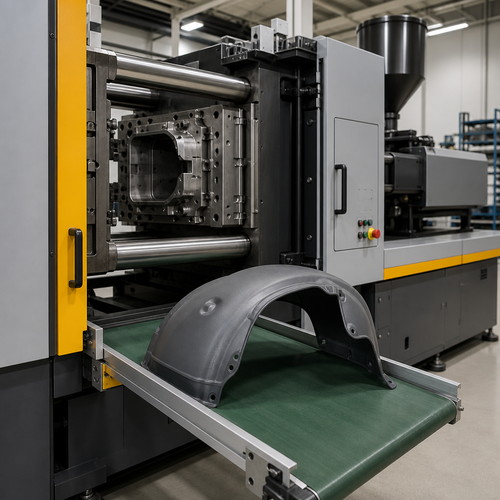

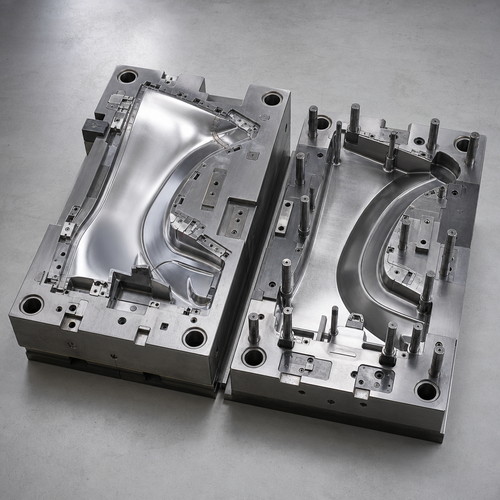

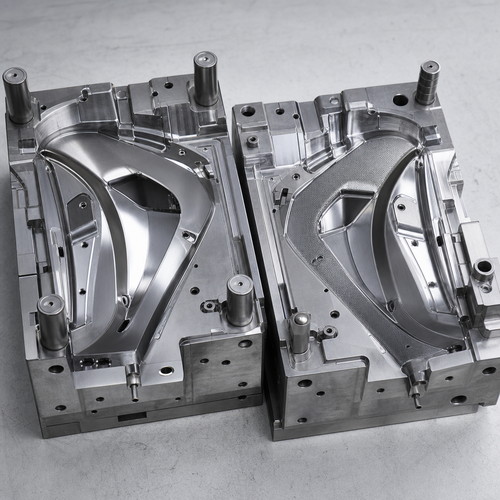

Mould design for these parts is where the real engineering sits. Fenders and mud flaps are large, thin-walled and often asymmetric, so gate position, cooling layout, warpage control and ejection all interact. P&M builds tools to +/-0.1mm precision and supports one-cavity, multi-cavity or mixed layouts in which different products are produced in the same mould, which is useful when a family of left and right or front and rear variants shares a tooling budget. Hot runner systems keep material flowing and reduce sprue waste on high-volume liners; cold runner designs remain practical for smaller batches or short runs. Mould life of 50-100 million shots means a single tool can serve a long production program. Base and cavity materials are selected to match the resin and volume: P20 and 2738 for general work, 718 and NAK80 for polished or grained surfaces, and 2344, S136, 8407, SKD61 and H13 for harder, more abrasive or higher-volume applications, built to HASCO, DME or the customer's own standard. Processing covers milling, grinding, CNC, EDM, wire cutting, carving, lathes and surface finishing, with mould lead time of roughly 25 working days and production runs of 7-15 days.

Large panels are also unforgiving of a poorly balanced cooling circuit. Where a liner is thin at the lip and thick around a boss, uneven shrinkage pulls the part into a banana shape and the clips no longer line up with the body holes. Our answer is a cooling layout and ejection plan built in the design stage, with flow analysis to confirm fill pressure and weld-line positions before the cavity is cut. Wall thickness is kept as uniform as the geometry allows, ribs are added for stiffness instead of extra mass, and generous radii at corners spread the stress of a kerb strike. The result is an Auto Parts Custom Fender that keeps its shape through thousands of thermal cycles and does not have to be forced into place on the line.

Quality control follows the part from the first trial shot to the last carton. A pre-production sample is produced and approved before mass production, and the customer's sign-off on that sample governs the whole run; samples are guaranteed to hold the same quality as mass production, so what is approved early is what arrives later. Final inspection happens before shipment, covering dimensional checks, clip fit, surface texture and colour, and any painted or sprayed finish. Because design, tooling and moulding sit under one roof, a defect found at inspection can be traced back to a gate, a cooling line or a material batch and corrected without a third party in the loop. Buyers dealing with a first Auto Parts Custom Fender project also get practical engineering support: advice on which resin grade will survive a northern winter or a coastal salt spray, where a rib will pay for itself, and how to structure cavities so that a family of variants shares one tool.

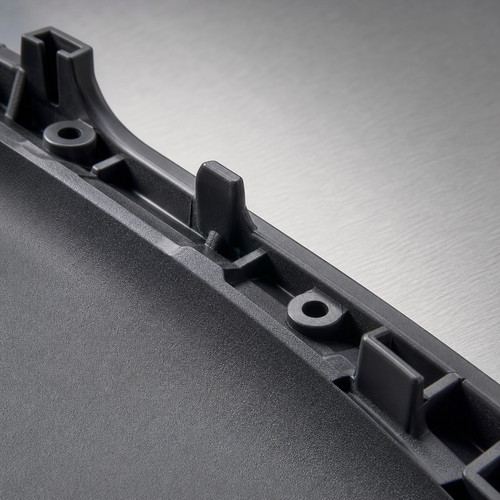

Moulded-in clips, locating tabs and mounting bosses are designed into the part rather than added later. Integrated clips reduce assembly time on the line, tabs control position so panels sit flush with body gaps, and bosses give fasteners a defined bearing surface. Getting the draft angles and radii right on those features prevents stress whitening and cracking during installation, which is exactly the kind of detail that separates a fender that survives ten winters from one that fails on the first.

P&M Auto Parts Custom Fender Molding(Specification)

P&M Auto Parts Custom Fender Molding Feature And Application

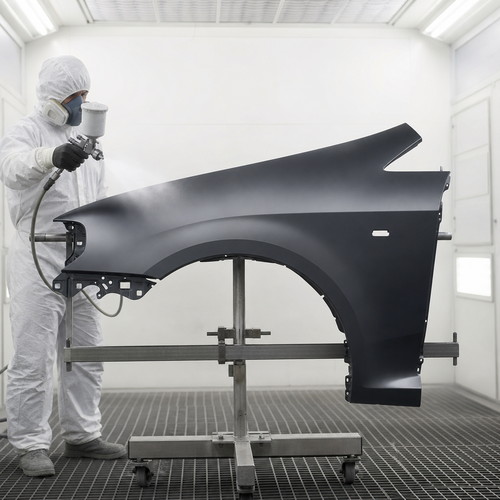

A well-made fender program is judged by a handful of measurable properties. Impact and stone-chip resistance comes from a combination of resin toughness, wall thickness and rib design, with TPO and glass-filled grades used where the part takes direct hits from gravel at speed. UV and weathering performance is controlled through stabiliser packages and, where the part is visible, a painted or grained finish that also hides scuffs. Painting, graining and surface finishing are handled in-house as part of the one-stop chain, so a buyer looking for a texture match to an existing interior or exterior grain can approve a sample rather than hope for one. Samples are guaranteed to match mass-production quality, and a pre-production sample is approved before mass production begins, with final inspection before shipment.

Supply flexibility is deliberately wide. Low-volume requirements — a short run for a restoration project, a batch of mud flaps for a niche off-road builder, replacement liners for a discontinued model — are served from cold-runner tooling with the same material and quality controls as a high-volume OEM program. Volume orders for OEM customers, fleet repair programs and aftermarket collision repair distributors run on hot runner, multi-cavity tools and can be scaled with capacity across injection moulding, blow moulding, die-casting and rotational moulding. CNC machining and metal products are available as a complementary capability when a project needs brackets or hardware alongside the plastic, but the core of every order is plastic: injection-moulded parts made from food-grade plastic raw materials, held to the same inspection standard regardless of batch size.

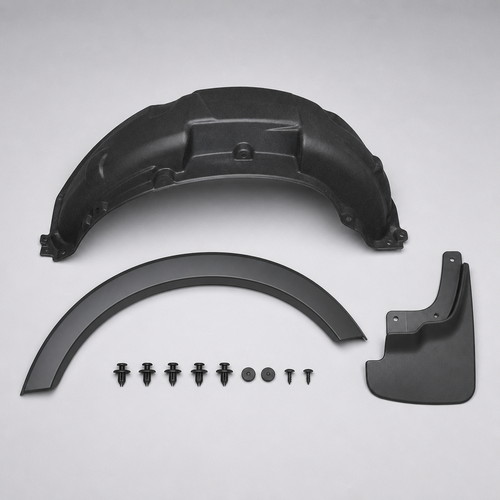

Where do these parts go? OEM programs use them as original body-side closures and wheel-arch trims. Aftermarket collision repair uses front and rear fender liners as direct replacements after impact damage. Off-road builds use fender extensions and heavy mud flaps to widen coverage once larger tyres and a lifted suspension are fitted. Classic-car restoration relies on custom tooling for models whose original panels are no longer available, where a scanned or re-drawn profile can be turned into a new mould. In each case the same engineering support applies: design review in CAD, PRO-E or UG, a sample for fit and finish approval, then production.

P&M's export experience since 2014, with domestic roots back to 2008 as Shundi Mould Factory, means buyer expectations in America, Europe, Germany, Japan and Australia are already well understood — about 90% of products are exported there. Trade terms cover FOB, CFR, CIF, EXW, FCA, DDP and DDU, with payment by T/T, L/C, PayPal, Western Union or Escrow, so a quotation can be structured to suit the buyer's own logistics and finance arrangements. Inquiries are answered within 24 hours.

Two practical points decide most sourcing decisions on parts of this size: whether the tool can be moved quickly and whether the supplier can keep quality stable once volume ramps. On timing, a mould lead time of roughly 25 working days puts a new Auto Parts Custom Fender into trial shots inside a normal model-year planning cycle, and production runs of 7-15 days keep replenishment short once the tool is qualified. On stability, a team of 51-100 people with its own trademark and dozens of patents, working from an existing library of fender, liner, trim and mud flap projects, means lessons already learned about clip retention and paint adhesion are applied on the next program rather than rediscovered.

Material availability is part of the service too. Food-grade plastic raw materials are used across the range, and where a buyer specifies a particular grade of PP, TPO, ABS, PC-ABS or glass-filled compound, that requirement is documented and held through the tooling trial so the approved sample and the production part share the same resin. Different products made in the same mould allow a distributor to order left and right liners, or several trim variants, from one tool, which lowers unit cost without lowering inspection standards.

If you are sourcing an Auto Parts Custom Fender, a wheel-arch trim, a mud flap set or a full family of front and rear liners, send P&M your drawing or sample today. Share your part profile, target material and expected volume, and our engineers will come back with a practical mould concept, a realistic lead time and a free quotation so you can compare the numbers against your current supplier. There is no charge for the initial review, and no obligation to proceed if the concept does not fit your program.

Customization Process

Factory&About US

NingBo Plastic Metal Product Co.,Ltd (P&M) is located in Yuyao, the so-called Mould City, Plastic Kingdom, in the southern tip of Hangzhou Bay Bridge,north of Shanghai, the east of Ningbo Port,tight double line of State Road 329 on land, sea and air trafic into a network to facilitate transport.

By the abundant technical strength,scientific management methods and good after-sales service, product deeply trusted and welcomed by customers from all over the world. P&M holds improved system of development and production, to achieve mold design, plastic products manufacturing and automatic production. Our main products is design and manufacturing of plastic mold, plastic product, metal product. 90% products of our enterprise are exported to America, Europe, Germany, Japan, Australia, etc. For many years, the company has been committed to the research of raw materials. The company has its own trademark and dozens of patents, providing more convenient technical support for mold making and product production. P&M started domestic business from 2008,named Shundi Mould Factory. And opened the international market from 2014. We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

P&M adheres to market-oriented to the quanlity of life and focus on quality service and continuous development of new products,determined to establish a better corporate image,and our friends at home and abroad to carry a wide range of business exchanges and cooperation, create brilliant.

Packing

Packaging according to your needs

1. By air ,it takes 3-7 days for delivery.

The goods can be shipped by DHL , Fedex , UPS .

2. By sea ,the delivery time is based on your port.

To South East Asian Countries takes about 5-12 days.

To Middle east countries takes about 18-25 days.

To European countries takes about 20-28 days.

To American countries takes about 28-35 days.

To Australia takes about 10-15 days.

To African countries takes about 30-35 days.

P&M Bike parts, centered around children, balances safety, health, and fun, aiming to add a bright color to children's beautiful childhood. We look forward to working together with you to serve our children.

The path of a child's growth is paved with bricks and tiles.

FAQ

1.Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2.How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Mould, Plastic Product, Metal Product, Dental Product, CNC machining.

4.Why should you buy from us not from other suppliers?

We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply: 3d design - 3d printing - mold making - plastic injection.

5.What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency: USD, EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6.What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Well-trained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
