Custom Deep Drawing Part

A buyer searching for a Custom Deep Drawing Part is rarely buying a stand-alone metal item. Engineers who request a Custom Deep Drawing Part from P&M (Ningbo Plastic Metal Products Co., Ltd.) are normally building a complete assembly, where a drawn metal cup, shell, cap or sleeve has to fit precisely against a plastic housing, locate an insert, or accept an overmolded feature. That is exactly where a plastic-focused manufacturer with a wider custom-parts capability becomes genuinely useful to an overseas buyer.

P&M is a professional injection mold manufacturer based in Yuyao, Ningbo, Zhejiang, China, the region known as the Mould City and Plastic Kingdom, near the southern end of Hangzhou Bay Bridge, north of Shanghai and east of Ningbo Port. Eighteen years of mold manufacturing technology and ten years of export experience support projects that combine metal forming and plastic molding inside one supply chain.

In practice, the deep-drawn component and the injection-molded part are developed together. Our engineers review the drawing, confirm the mating geometry, and decide which features belong on the metal shell and which belong on the plastic housing. Because tooling for both sides is built under one roof, tolerances, gate positions and assembly clearances are agreed before any steel is cut, which removes the risk of a mismatch that would otherwise be discovered only at pilot build. For a buyer, that single point of contact shortens the development loop and keeps responsibility for the finished assembly in one place.

P&M  Custom Deep Drawing Part Molding Introduction

P&M, formally Ningbo Plastic Metal Products Co., Ltd., grew out of Shundi Mould Factory, which began building molds for domestic customers in 2008. The company entered international markets in 2014 and today exports roughly 90% of its output to America, Europe, Germany, Japan and Australia. A team of 51-100 people, an own trademark and dozens of patents sit behind the work, but the practical advantage for an overseas buyer is simpler. Eighteen years of accumulated mold manufacturing technology are applied to every inquiry, and inquiries are answered within 24 hours.

The core of the business is injection molding, supported by blow molding, die-casting, rotational molding, CNC machining and metal products. That mix matters for drawn-part projects. A deep-drawn metal shell, cap or sleeve can be specified alongside the plastic housing it will live in, so the customer deals with one engineering team and one quality system instead of coordinating a metal stamper and a molder who never speak to each other. The deep drawing capability is offered as part of this broader custom-parts service, while the majority of production remains plastic and injection-molded.

The service chain runs from 3D design to 3D printing, mold making, plastic injection, product assembly, surface printing and spraying. Design work in CAD, PRO-E and UG typically takes one to three days. The main technologies on the floor are milling, grinding, CNC, EDM, wire cutting, carving, lathes and surface finishing. Mold and base materials include P20, 2738, 2344, 718, S136, 8407, NAK80, SKD61 and H13, built to HASCO, DME or the customer's own standard. Cavity configuration is flexible: one cavity, multi-cavity, or different products made in the same mold, with hot runner and cold runner options. Product material is food-grade plastic raw material where the application calls for it.

Material and standard choices are usually settled early, because they drive both cost and lead time. A housing might be molded in food-grade plastic raw material for a product that touches food or skin, while a structural bracket uses a technical grade selected for stiffness. On the metal side, the drawn shell can be pressed from a sheet grade that matches the required strength and corrosion resistance, and the mold itself is cut from P20, 2738, 2344, 718, S136, 8407, NAK80, SKD61 or H13 depending on production volume and surface finish. Tools can follow HASCO, DME or a customer drawing, so an overseas buyer can keep existing spare-part standards without redesigning the mold base.

Quality control follows a straightforward discipline. A pre-production sample is approved before mass production, final inspection happens before shipment, and samples are guaranteed to the same quality as mass production. Mold precision is held at +/-0.1mm, mold life runs 50-100 million shots, mold lead time is about 25 working days and production time is 7-15 days. Trade terms cover FOB, CFR, CIF, EXW, FCA, DDP and DDU, with payment by T/T, L/C, PayPal, Western Union or Escrow. Taken together, these are the mechanics that let a buyer place a drawn and injection-molded project with a single partner and plan tooling, pilot samples and mass production on a predictable schedule.

The project behind a Custom Deep Drawing Part normally starts with a short technical conversation about which process carries which feature. Thin-walled metal shells offer stiffness, shielding and a premium feel, while molded plastic gives design freedom, integrated snap fits, ribs, bosses and color. Mapping each requirement to the right process at the design stage is where most of the cost is either saved or lost. The engineering team reviews the part function, wall sections, angles, assembly method and expected volume before recommending a tooling route, and the customer receives a clear proposal that separates tooling from part price.

P&M  Custom Deep Drawing Part Molding(Specification)

P&M Custom Deep Drawing Part Molding Feature And Application

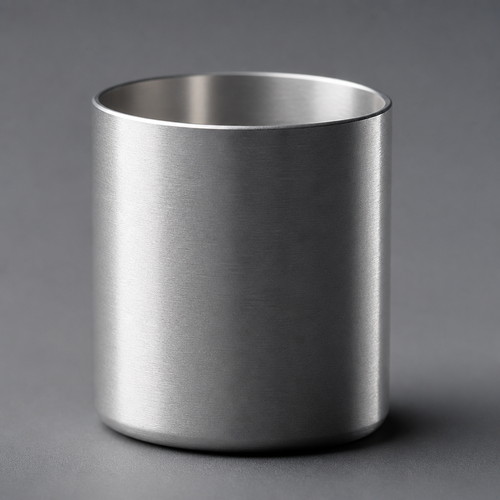

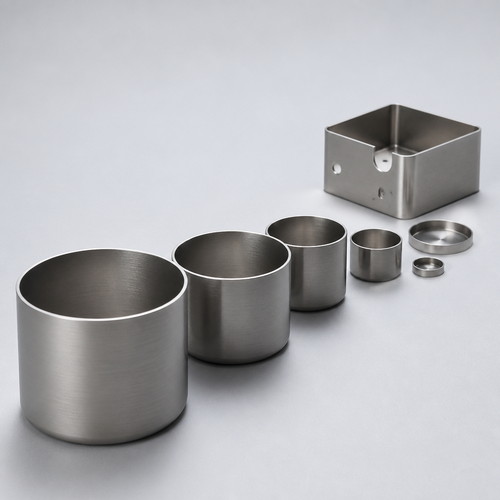

A Custom Deep Drawing Part from P&M is specified as part of a complete assembly rather than as an isolated metal item. The drawn metal component provides the structural shell, the sealing surface or the cosmetic exterior, while the injection-molded plastic housing, insert or overmolded feature provides mounting points, cable routing, insulation and color. Because both are engineered together, the interfaces line up on the first tool trial, and the buyer receives a tested sub-assembly instead of two parts that must be reconciled on the assembly line.

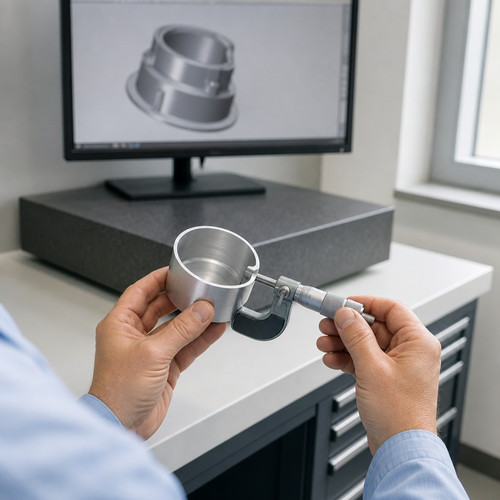

Tolerance discipline is central to this approach. Mold precision is controlled to +/-0.1mm, which is tight enough to hold concentricity between a drawn cup and a molded collar, to keep a threaded insert square to a plastic boss, and to guarantee that an overmolded sleeve grips the metal without flash or gapping. A pre-production sample is approved before mass production, final inspection takes place before shipment, and samples are guaranteed to the same quality as mass production, so the geometry validated on the bench is the geometry that arrives in the shipping carton.

Tooling speed is the second feature buyers notice. Mold lead time is about 25 working days, and production time runs 7-15 days, which means a new Custom Deep Drawing Part combined with a plastic housing can move from approved drawing to delivered production in a single season. Design work in CAD, PRO-E and UG takes one to three days, and the tool shop's milling, grinding, CNC, EDM, wire cutting, carving and lathe capacity keeps changes local rather than outsourced. With a mold life of 50-100 million shots and materials drawn from P20, 2738, 2344, 718, S136, 8407, NAK80, SKD61 and H13 to HASCO or DME standards, the same tool can serve a pilot run and a long production program.

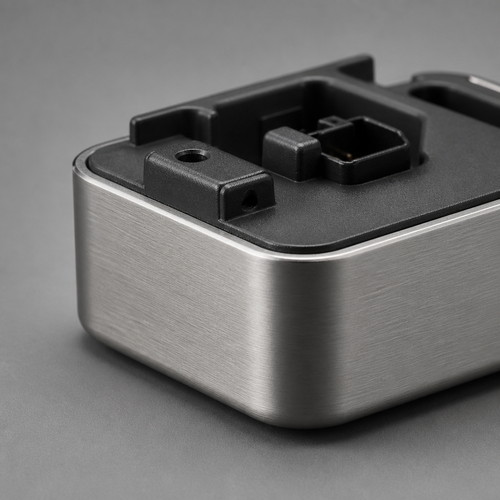

Where the metal and plastic must become one component, insert molding and overmolding are the natural answer. A drawn metal sleeve can be placed in the mold and encapsulated by food-grade plastic raw material, producing a handle, a bushing, a housing or a connector body with no secondary fastening. One cavity, multi-cavity or different products made in the same mold can be selected to match the volume, and hot runner or cold runner configurations are chosen to balance cycle time against material waste. For applications that do not need metal at all, deep-formed plastic parts deliver similar shapes in a single molding step with lower weight and no corrosion concern.

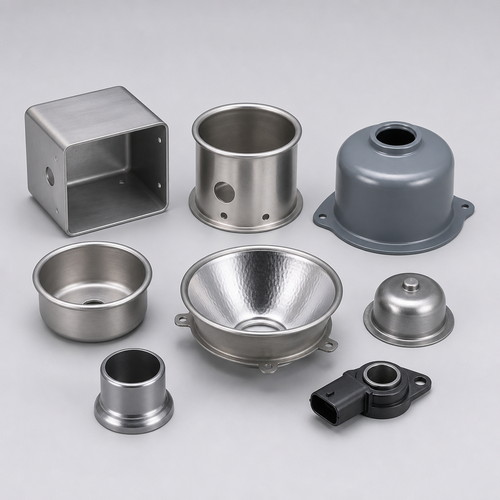

Applications follow the same logic across several industries. In automotive components, drawn shells and overmolded plastic covers protect sensors, connectors and small actuators. In electrical appliances, drawn caps mate with molded housings for motors, pumps and control units. Lighting housings use a drawn reflector or body with a molded plastic frame and diffuser. Hardware products such as fittings, brackets and decorative caps combine a drawn metal body with a molded grip or base. In industrial packaging, deep-drawn cups and sleeves pair with plastic inserts to hold, protect and present components during shipping.

Prototyping is available before any commitment. A 3D-printed model produced from the approved CAD data lets a buyer hold the geometry, check the fit against neighboring parts and present the concept internally without paying for steel. Once the design is frozen, the same file drives both the drawn-metal tooling and the injection mold, which keeps the two halves of the assembly consistent. Samples are guaranteed to match mass production quality, so the part approved in the meeting room is the part that ships.

Working with a single supplier also simplifies the paperwork behind an import program. Because the plastic housing and the drawn metal shell are produced under one roof, one set of inspection records, one packing specification and one set of shipping documents cover the whole assembly. Production time of 7-15 days sits comfortably inside a normal replenishment cycle, and the 24-hour response commitment means engineering questions raised during tooling are answered before they turn into delays. For buyers who order in seasonal waves, the ability to hold a mold and restart production later, backed by a mold life of 50-100 million shots, removes the cost of retooling every year.

The one-stop service chain from 3D design through 3D printing, mold making, plastic injection, product assembly, surface printing and spraying is what makes these combinations practical. Surface printing and spraying finish the part after molding, so a decorated plastic housing and a finished metal shell leave the factory as a matched set. Roughly 90% of products are exported to America, Europe, Germany, Japan and Australia, and eighteen years of mold technology plus a decade of export experience mean the documentation, packaging and trade terms are already familiar to international buyers. FOB, CFR, CIF, EXW, FCA, DDP and DDU are all available, and payment can be arranged by T/T, L/C, PayPal, Western Union or Escrow.

If you are developing a product that needs a drawn metal component married to an injection-molded plastic part, send your drawing, 3D model or sample to P&M. The engineering team will review the design, recommend the most cost-effective tooling route, and reply within 24 hours with a free quotation covering tooling, part price, lead time and delivery terms. Contact P&M today to start your Custom Deep Drawing Part project.

Customization Process

Factory&About US

NingBo Plastic Metal Product Co.,Ltd (P&M) is located in Yuyao, the so-called Mould City, Plastic Kingdom, in the southern tip of Hangzhou Bay Bridge,north of Shanghai, the east of Ningbo Port,tight double line of State Road 329 on land, sea and air trafic into a network to facilitate transport.

By the abundant technical strength,scientific management methods and good after-sales service, product deeply trusted and welcomed by customers from all over the world. P&M holds improved system of development and production, to achieve mold design, plastic products manufacturing and automatic production. Our main products is design and manufacturing of plastic mold, plastic product, metal product. 90% products of our enterprise are exported to America, Europe, Germany, Japan, Australia, etc. For many years, the company has been committed to the research of raw materials. The company has its own trademark and dozens of patents, providing more convenient technical support for mold making and product production. P&M started domestic business from 2008,named Shundi Mould Factory. And opened the international market from 2014. We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

P&M adheres to market-oriented to the quanlity of life and focus on quality service and continuous development of new products,determined to establish a better corporate image,and our friends at home and abroad to carry a wide range of business exchanges and cooperation, create brilliant.

Packing

Packaging according to your needs

1. By air ,it takes 3-7 days for delivery.

The goods can be shipped by DHL , Fedex , UPS .

2. By sea ,the delivery time is based on your port.

To South East Asian Countries takes about 5-12 days.

To Middle east countries takes about 18-25 days.

To European countries takes about 20-28 days.

To American countries takes about 28-35 days.

To Australia takes about 10-15 days.

To African countries takes about 30-35 days.

P&M Bike parts, centered around children, balances safety, health, and fun, aiming to add a bright color to children's beautiful childhood. We look forward to working together with you to serve our children.

The path of a child's growth is paved with bricks and tiles.

FAQ

1.Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2.How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Mould, Plastic Product, Metal Product, Dental Product, CNC machining.

4.Why should you buy from us not from other suppliers?

We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply: 3d design - 3d printing - mold making - plastic injection.

5.What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency: USD, EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6.What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Well-trained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
