Customized Polyurethane Shaped Parts

P&M has produced customized polyurethane shaped parts for more than fifteen years, serving OEMs in material handling, automation, automotive, and heavy equipment. Polyurethane is not a single compound but a family of materials: hardness, rebound, tear strength, and chemical resistance all shift with the formulation. That is why every customized polyurethane shaped parts project starts with the application rather than with a catalog number.

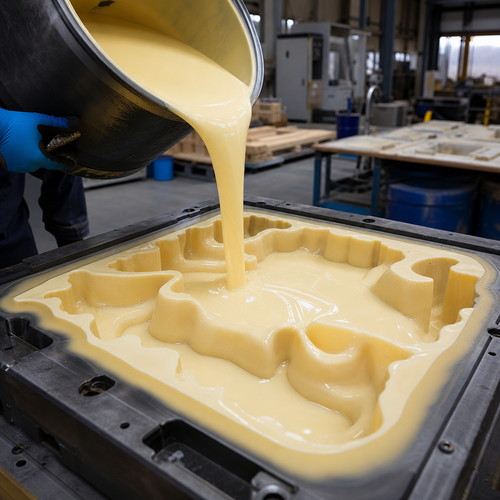

Our plant runs three production routes under one roof — cast polyurethane molding, reaction injection molding (RIM), and CNC machining of polyurethane stock shapes. That mix lets us quote the most economical method for each geometry: low-volume seals cast in silicone tooling, mid-volume rollers RIM-molded in aluminum tools, and prototypes machined from 90A sheet within 48 hours.

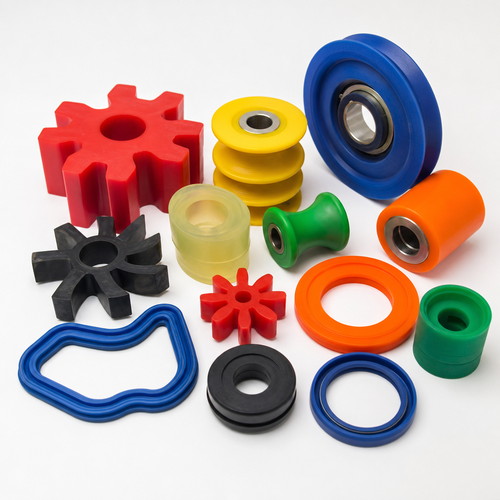

Typical parts include drive rollers, idler wheels, guide pads, gripper jaws, scraper blades, buffer bumpers, vibration isolators, pump liners, and wear strips. Tolerances run to ±0.05 mm on machined features and ±0.15 mm on molded ones, with hardness available from Shore 10A to Shore 80D. Metal inserts, shafts, and threaded fasteners can be bonded in place during molding.

Every shipment carries a material data sheet, a dimensional report, and a first-article inspection report. Buyers who need customized polyurethane shaped parts with repeatable quality rely on P&M for stable production, batch after batch.

P&M Customized Polyurethane Shaped Parts Molding Introduction

Understanding what you are actually buying is the first step in specifying customized polyurethane shaped parts correctly. Polyurethane sits between rubber and engineering plastic. It has the elasticity and rebound of rubber, yet it can be machined, bonded, and formulated to reach hardness levels that rubber elastomers cannot touch. Because the polymer backbone is built from polyol, isocyanate, and chain extender, small changes in those building blocks produce large changes in performance. A polyester-based system offers excellent oil and abrasion resistance but is vulnerable to hydrolysis in warm, humid conditions. A polyether-based system trades a little tensile strength for much better hydrolytic stability. MDI-based prepolymers generally give better dynamic performance than TDI systems, while PTMEG polyols raise resilience and low-temperature flexibility.

P&M helps each customer choose the right system for the environment the part will live in. Outdoor equipment exposed to rain and UV, hydraulic components soaking in oil, and food-line parts that face daily washdown all call for different formulations, additives, and colors. We also match the production process to the order profile. Casting is ideal when the part is thick, the volume is moderate, and inserts must be encapsulated. RIM suits larger, thinner, or more complex shapes where cycle time matters. CNC machining from cast sheet is unbeatable for prototypes, bridge production, and low-quantity replacement parts, because it eliminates tooling cost entirely.

Design work matters as much as material selection. Sharp internal corners, abrupt section changes, and deep undercuts all create stress risers that shorten service life. P&M engineers review CAD files and return specific recommendations: add radii, keep wall sections uniform, allow draft on molded features, and specify the tolerance only where it is functionally needed. This review usually happens within one business day, and it frequently removes cost before the tool is ever cut.

Durometer choice drives more field failures than any other single decision, so it deserves a rational approach rather than a guess. As a working guide, Shore 10A–30A suits soft gripper pads, suction faces, and vibration dampers where conformability matters more than load. Shore 40A–60A is the workhorse band for conveyor rollers, idler wheels, wipers, and general wear pads. Shore 70A–95A covers high-load rollers, scraper blades, sprockets, and pump liners where abrasion resistance and dimensional stability dominate. Above Shore 60D the material behaves more like an engineering plastic, which makes it a good fit for structural spacers, bushings, and impact plates. P&M will always confirm the grade with a physical sample when a program is sensitive to feel, noise, or grip.

Equally important is avoiding the classic specification mistakes. Over-specifying hardness to solve a wear problem usually transfers the failure to the shaft or the frame instead of fixing it. Under-specifying tolerance to save cost invites assembly problems and premature wear. Ignoring the operating temperature range — especially in ovens, dryers, and outdoor installations — can turn a good formulation into a brittle one. And reusing a rubber drawing without adjusting radii and draft leads to molded parts with internal stress. Reviewing these points before tooling is cut is the cheapest engineering a buyer will ever get, and it is part of every P&M quotation.

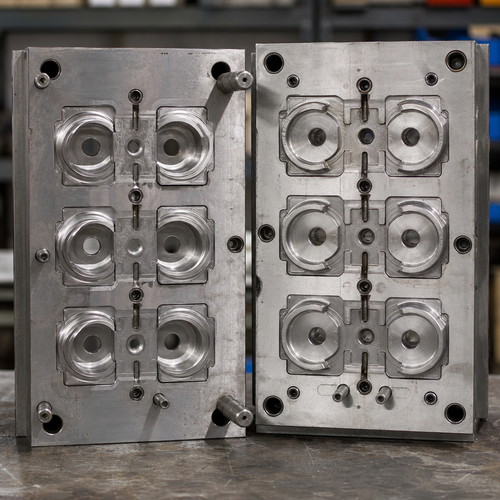

Tooling and lead time are transparent. Silicone molds for cast parts typically take 5–7 working days and cost far less than injection tooling. Aluminum RIM molds take 10–15 working days. Machined prototypes ship in 2–4 working days. Production runs then scale from a single piece to tens of thousands per year on the same documented process. Whether a program needs one emergency replacement roller or a multi-year supply agreement, customized polyurethane shaped parts from P&M are quoted with the same discipline: a drawing, a material grade, a tolerance range, and a delivery date.

P&M Customized Polyurethane Shaped Parts Molding(Specification)

P&M Customized Polyurethane Shaped Parts Molding Feature And Application

Feature highlights. Customized polyurethane shaped parts from P&M are specified for measurable reasons, not marketing language.

- Abrasion resistance. PU outlasts natural rubber by a wide margin in sliding and impact-abrasion service, which is why it dominates conveyor rollers, scraper blades, and slurry pump liners.

- Wide hardness range. Shore 10A to Shore 80D covers everything from gel-soft gripper pads to rigid load-bearing wheels, all from the same supplier.

- Oil, grease, and solvent tolerance. Polyester-based grades resist hydrocarbons far better than nitrile rubber at comparable hardness.

- Hydrolytic and UV options. Polyether grades plus stabilizers and pigments keep outdoor and washdown parts alive in humid, sunny environments.

- High load capacity with low compression set. Rollers and bushings hold their shape under continuous load instead of flattening like soft rubber.

- Tear and cut resistance. High tear strength prevents the chunking and edge cracking that kill cheap parts early.

- Noise and vibration damping. Rebound can be tuned so parts absorb impact energy — useful on packaging lines and automation grippers where noise and part damage are costly.

- Machinability. Tight features, flats, grooves, and keyways can be cut and finished after molding, which reduces tooling complexity.

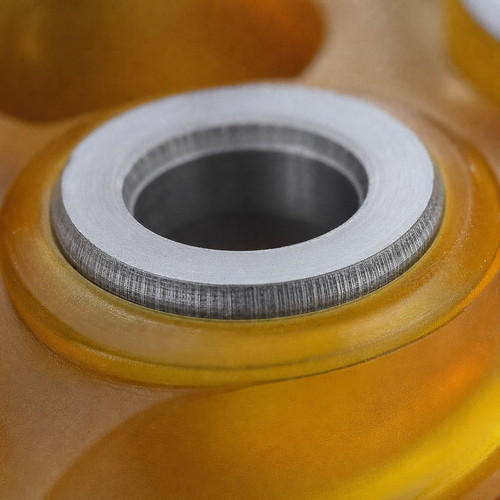

- Insert bonding. Steel shafts, aluminum cores, threaded studs, and bearings are molded in place, eliminating secondary assembly.

- Color and grade options. White, black, red, blue, and custom colors are available, plus food-contact and non-marking formulations.

- Traceability. Each batch is logged with the material lot, cure cycle, and inspection results.

Application fields. The list of industries that buy customized polyurethane shaped parts keeps expanding because the material solves problems rubber and metal cannot solve alone.

In material handling, PU drive rollers, idler wheels, and timing-belt pulleys drive packages without slipping or marking them. In packaging machinery, gripper jaws, suction-cup pads, and star wheels handle film, cartons, and bottles at high speed without crushing or scratching. Mining and aggregate operations use PU wear strips, screen panels, cyclone liners, and skirt rubber where steel would wear through in weeks. Hydraulic and pneumatic systems use PU seals, wipers, and rod seals that resist extrusion at pressure while surviving dirty oil.

Automotive and off-highway programs use suspension bump stops, coil-spring isolators, bushings, and ball-joint boots. Agricultural equipment uses PU scrapers, seed-metering wheels, and combine paddles that shrug off dust and crop residue. Food and beverage lines rely on FDA-compliant PU belts, rollers, and paddles that tolerate daily washdown and cleaning chemicals. Medical and lab equipment uses soft-touch PU handles, pads, and dampers where precise durometer control matters. Sports and consumer goods use skate wheels, caster wheels, and protective bumpers where rebound and appearance both count.

Polyurethane against the alternatives. Compared with natural or SBR rubber, PU typically lasts three to five times longer in abrasive sliding contact and holds its shape under load instead of creeping. Compared with steel, it is lighter, quieter, and far gentler on the products it touches, which is why it replaced metal in so many guide and roller positions. Compared with nylon and acetal, it absorbs shock, grips better, and resists impact without cracking. Compared with silicone, it delivers much higher tear strength and load capacity at a fraction of the cost. The honest caveats are heat and hot water: standard PU grades should be kept inside their rated temperature window, and continuous immersion above roughly 50 °C calls for a hydrolysis-stabilized polyether formulation. P&M states those limits up front, because a material recommended for the wrong environment is a failure waiting twelve months to appear on the customer's line.

Why buy from the manufacturer. Trading companies can move boxes, but they cannot change a formulation when a roller keeps failing after six weeks. Buying customized polyurethane shaped parts directly from P&M keeps engineering, mixing, molding, machining, and inspection inside one facility. When a part underperforms, the fix happens on our floor within days — a harder grade, a different polyol system, an added chamfer, a revised cure cycle — instead of becoming a claim that travels between three parties. Direct manufacturing also removes the margin stacking that inflates unit price, and it shortens the communication loop on drawing revisions, so a change request does not take two weeks to reach the person actually cutting the mold.

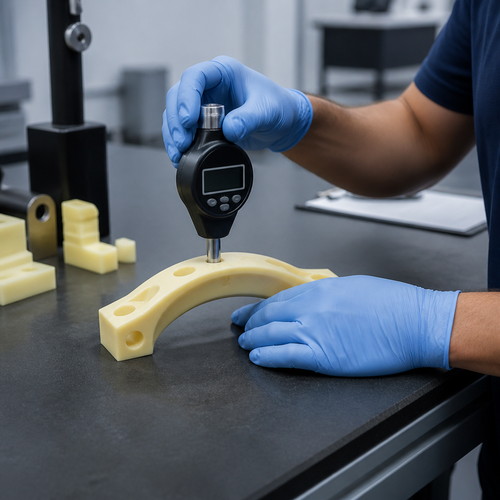

Quality control and documentation. Incoming prepolymer and curative are checked against the supplier certificate and our own hardness and viscosity tests. Mixed batches are logged with the material lot, mix ratio, and cure schedule, so any finished part can be traced back to its chemistry. In-process checks confirm hardness on every run, and final inspection measures critical dimensions against the approved drawing. Depending on the program, P&M issues first-article inspection reports, PPAP-style documentation, RoHS and REACH declarations, material data sheets, and batch-level test records. Parts are packed to protect machined faces and bonded inserts, then shipped with the inspection file so receiving inspection is fast.

Working with P&M. Send us a drawing or a sample, tell us the load, speed, temperature, and chemical exposure, and we will recommend a material grade and process route. Most quotes return within 24 hours. Sampling follows quickly — silicone molds in about a week, machined prototypes in days. After first-article approval, production runs on a locked process with documented inspections, so the tenth order matches the first. From a single machine guard pad to an annual program of thousands of rollers, P&M supplies customized polyurethane shaped parts with engineering support, honest lead times, and consistent quality.
