Application of automotive parts in injection molds

Automotive parts are one of the most widely used and demanding applications of injection molding technology. The trends of lightweighting, intelligentization, and cost reduction in modern automobiles have greatly promoted the application of plastics in automobiles, all of which rely heavily on precision and efficient injection molds.

The following is a comprehensive analysis of the application of automotive parts in injection molding.

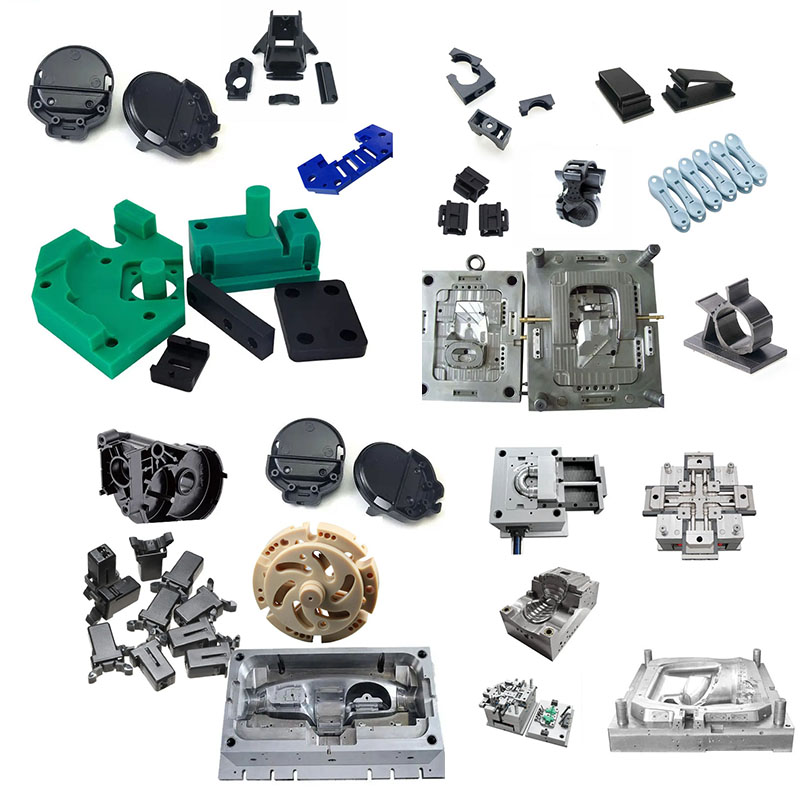

I. Application Scope: From Interior to Exterior, From Ordinary Parts to Core Components

Plastic injection molded parts are found in almost every corner of a car.

1. Interior Systems

Dashboard: Large, complex injection molded parts, typically using PP+EPDM-T20 (impact-resistant, low-temperature resistant). The molds are huge, requiring hot runners and multi-point tilting slides.

Door Panels: Similar to the dashboard, integrating armrests, map pockets, and other structures.

Center Console/Sub-Dashboard: Complex structure, containing numerous clips, mounting pillars, and surface finishes.

Air Conditioning Vents: High requirements for appearance and motion mechanisms; the molds require multiple slides and angled ejectors.

Steering wheel cover: Often uses an overmolded mold, first injection molding the frame, then covering it with soft TPU or PVC.

Various buttons, switches, and decorative strips.

2. Exterior System

Bumper: One of the largest injection molded parts. The mold is huge, often exceeding 2000mm, using an ultra-large hot runner system. The material is impact-resistant PP.

Grill: An exterior component, requiring high surface gloss and electroplating effects, commonly using ABS or PC/ABS.

Lamp covers: A representative transparent component, using PC material. The mold needs mirror polishing, with extremely high requirements for dust resistance and ventilation.

Side skirts, wheel arches, and rearview mirror housings: Exposed to the outdoors, requiring good weather resistance.

Door handles: Usually "two-tone" or "painted" injection molding, with high requirements for appearance and feel.

3. Engine Compartment and Functional Components

Hood: Requires high temperature resistance (~140℃) and oil resistance, commonly using PA66-GF30 (nylon with glass fiber).

Intake Manifold: Complex piping structure, often using "melt core injection molding" or "vibration friction welding" techniques, with PA66-GF35 materials.

Cooling Fan and Fan Cover: Requires high strength and fatigue resistance, commonly using PP-GF30 or PA-GF.

Fluid Management Components (e.g., radiator caps, oil reservoirs).

4. Electronic and Electrical Systems

Connectors and Sensor Housings: Representative precision small parts, using materials such as PBT and PA, requiring extremely high mold precision, often employing high-speed molds with 64 or more cavities per section.

Control Unit (ECU) Housing: Requires shielding, sealing, and heat dissipation.

III. Core Manufacturing Processes and Quality Control

Automotive injection molds adhere to strict industry standards (e.g., IATF 16949).

Advanced Process Quality Planning (APQP): Involves before mold design, conducting manufacturability design analysis in collaboration with the OEM.

Moldflow Analysis: A mandatory step. Simulates filling, cooling, and warpage to predict and resolve potential defects.

Precision Machining and Trial Molding: Machining is performed using 5-axis CNC, precision EDM, and wire EDM equipment. Multiple trial moldings (T0, T1, etc.) are conducted for debugging.

Production Part Approval Process (PPAP): Before mass production, a complete documentation package is submitted to the customer, demonstrating that the production process can stably produce qualified products.

Statistical Process Control (SPC): During mass production, key process parameters and product dimensions are monitored and statistically analyzed in real time to ensure process stability.

IV. Summary: How Injection Molds Shape Modern Automobiles

Achieving Lightweight Design: Replacing steel with plastic significantly reduces vehicle weight, saving energy and reducing emissions.

Increased Design Freedom: Plastics are easily molded into complex curved surfaces, achieving more aesthetically pleasing and aerodynamically superior shapes.

Integrated Functionality: Integrating multiple parts into a single injection molded part reduces assembly steps and improves reliability.

Cost Control: In mass production, the unit cost is extremely low, and the efficiency is far higher than metal processing.

Conclusion: The automotive industry is the core driving force behind the development of injection mold technology. A modern car contains thousands of plastic parts, behind which lie hundreds of precision and complex injection molds. These molds are not merely tools for "replicating" products, but also the core guarantee for achieving innovative automotive design, superior performance, and controllable costs. It can be said that without advanced injection molds, there would be no modern automotive industry.
