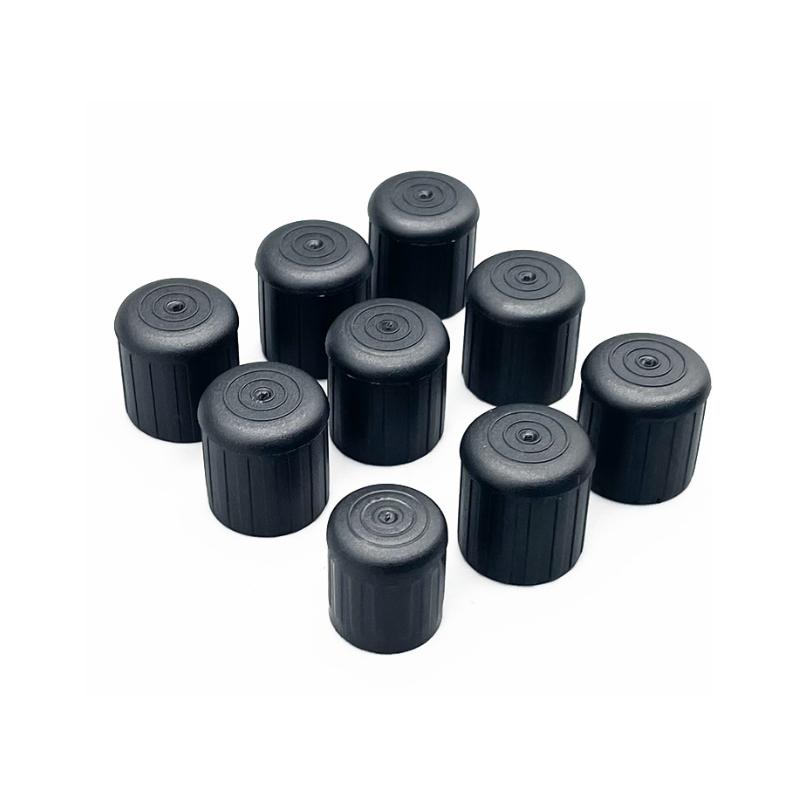

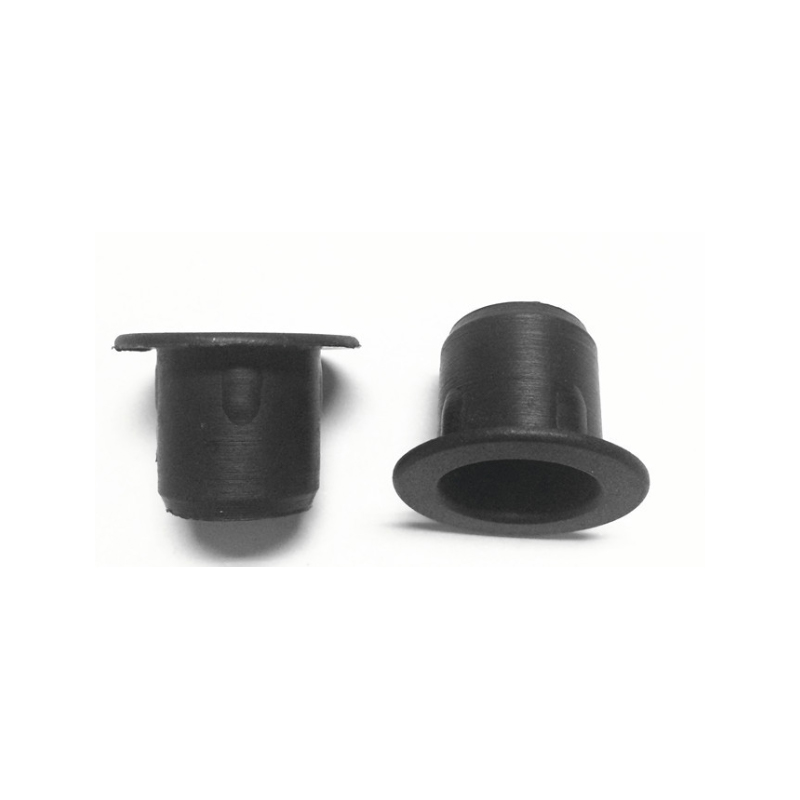

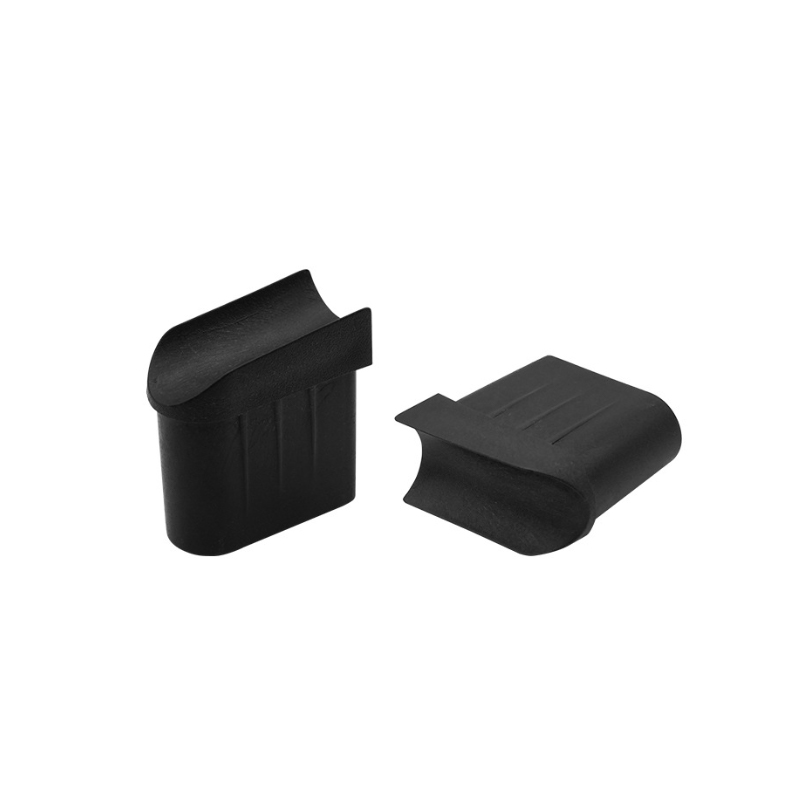

Plastic sleeve mold

At P&M, we specialize in designing and manufacturing high-precision plastic sleeve molds and components for critical mechanical applications. As a direct manufacturer, we provide complete solutions from custom mold design to injection molding, quality testing, and assembly services. We understand that sleeves and bushings must maintain precise dimensions, withstand wear, and perform reliably in demanding environments. Our expertise ensures your sleeve components meet the highest standards of quality and performance.

1. Precision Mold Design for Accurate Sleeve Components

Sleeves require exact engineering to maintain dimensional stability and functional performance. Our molds are designed with specialized features for precision sleeve manufacturing:

Key Mold Features:

Core-Cavity Systems: Precision-machined for perfect concentricity and wall thickness consistency

Ejection Systems: Specialized ejection pins and sleeves for damage-free part removal

Venting Systems: Precision venting to prevent air traps in long, thin-walled sections

Cooling Channels: Optimized cooling for uniform shrinkage and dimensional stability

Slide Actions: For complex features like grooves, flanges, and mounting points

We Design For:

Precision bushings and bearings

Electrical insulation sleeves

Guide rollers and spacers

Protective covers and liners

Mechanical component housings

2. Material Selection for Specific Performance Needs

The right material ensures proper wear resistance, dimensional stability, and environmental performance:

Preferred Materials & Applications:

Nylon (PA6, PA66): Excellent wear resistance and strength - ideal for bearings and bushings

Acetal (POM): Low friction and high dimensional stability - perfect for precision mechanical parts

Polycarbonate (PC): Impact resistance and electrical insulation - great for protective sleeves

PTFE-Filled Compounds: Superior lubricity and chemical resistance - for low-friction applications

PEEK: High temperature and chemical resistance - for demanding environments

UHMW-PE: Excellent wear resistance and low friction - for material handling applications

We help select materials based on wear requirements, temperature range, chemical exposure, and mechanical load demands.

3. Advanced Injection Molding Process

Our manufacturing process ensures every sleeve meets strict dimensional and performance requirements:

Quality Assurance Features:

Scientific Molding: Process parameter optimization for dimensional consistency

Insert Molding: Metal reinforcements and bearings molded in-place

Overmolding: Multiple material combinations for enhanced performance

Automated Production: Robotics for consistent quality and handling

Cleanroom Molding: ISO 7/8 environments for medical and electronic components

Key Advantages:

Consistent wall thickness

Excellent concentricity

Superior surface finish

Tight tolerance maintenance

Cost-effective production

4. Value-Added Services & Assembly

We provide complete manufacturing solutions beyond basic molding:

Additional Services:

CNC Machining: Secondary operations for critical dimensions

Surface Treatment: Lubricity enhancement and coating services

Quality Testing: Dimensional verification and performance testing

Assembly Services: Press-fitting and component assembly

Packaging: Custom packaging solutions

Quality Compliance:

Material certifications

First article inspections

Dimensional validation reports

Statistical process control data

Full traceability documentation

Why Choose Our Sleeve Solutions?

Technical Expertise: Deep knowledge of sleeve and bushing applications

Precision Focus: Tight tolerance capabilities for demanding applications

Material Knowledge: Right material selection for your specific needs

Quality Commitment: Every component thoroughly inspected

Complete Service: From design to delivered finished parts

We are plastic mold maker and can provide custom mold service, we can make injection molds, blow molds, rotational molds and die-casting molds.

For custom injection molds, we can provide professional custom injection molding services. Usually Plastic injection mold manufacturing Molding are manufactured using injection molding technology. The mold materials for injection molds can be chosen from P20, 718, S136, H13 and so on. The mold material reflects the mold life and product material requirements.

For parts that require blow molding production, we can also provide professional custom blow molding services.

Plastic injection mold manufacturing Injection Mould making

1.We communicate product design according to samples/drawings and your requirements.

2.After the product design is confirmed, we carry out the mold design, we provide all kinds of injection molds, blow molds, silicone molds, die-casting molds services.

3.Material procurement, steel cutting and mold basic tools.

4.Mold assembly

5.Mold inspection, tracking and controlling mold processing.

6. We will inform you the date of mold trial and send you the sample inspection report and injection parameters together with the sample.

7.Your instruction and confirmation of shipment.

8.Prepare the mold before packing.

Plastic injection mold manufacturing molding Specification

1. Professional manufacturer, design, production injection mould and stamping mould quality control

2. rich export experience plastic injection mould and stamping mould

3. Reasonable price of design mould

4. Cavities: single or as per your requirements cavity

5. Treatment: S45C Pretreat>25Hrc,And Nitriding

6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Moldbase :LKM available

7. Standard:DEM ,HUSKY,available

8. Hot runner: according to your demand

9. Life time: >300 Thousand Times

10. Package: Plywood case, anti-rust paint

Mold design：

Information you need to provide us

1. If you have drawings, 2D drawings, 3D drawings (preferably in STEP format).

2. If there are no drawings, you need to provide specific length, width, height and weight information. (It’s best to send us samples)

3. Should the mold be sent to your country, or leave the mold in our factory and we will help you produce the product.

4. Mold material requirements, cavity number requirements (you can tell us about the size of your injection molding machine)

5. Product material requirements and product quantity. (You can tell us about the use of the product and we can give you suggestions)

Transaction process:

Mold testing：

Once the mold is complete, I do a mold test. It usually takes about 3-5 days to complete. We need to assemble the mold, adjust the pressure data of the machine, and try production. We need to check whether there are problems during the normal production of the mold and make modifications.

Product packaging

Packaging according to your needs

1.By air ,it takes 3-7 days for delivery .The goods can be shipped by DHL ,Fedex ,UPS .

2.By sea ,the delivery time is based on your port .

To South East Asian Countries takes about 5-12 days

To Middle east countries takes about 18-25 days

To European countries takes about 20-28 days

To American countries takes about 28-35 days

To Australia takes about 10-15 days

To African countries takes about 30-35 days.

Factory

Video-1: (Factory Video)

Video-2: (Injection Molding)

Video-3: (Blow molding)

Video-4: (Blow molding)

Video-5: (Roll molding)

Customer satisfaction is our most important goal. We focus on communication and cooperation with our customers, always pay attention to their needs and provide quick response and quality customer service. Our injection production mold factory is committed to establishing long-term relationships and ensuring that our customers receive the best after-sales service during the purchase and use of our products, and we will definitely do our best to solve any problems for our customers.

FAQ

1. Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern.

Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3. What can you buy from us?

Mould,Plastic Product, Metal Product,Dental Product,CNC machining.

4. Why should you buy from us not from other suppliers?

Ningbo P&M Plastic Metal Product Co., Ltd. We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply:3d design - 3d printing - mold making - plastic injection.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6. What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Welltrained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
