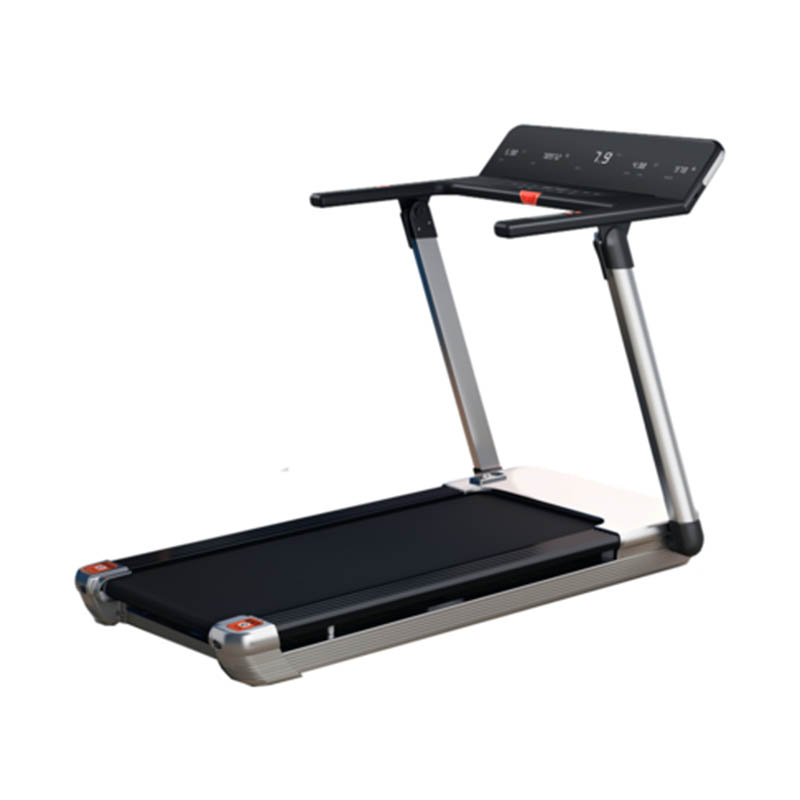

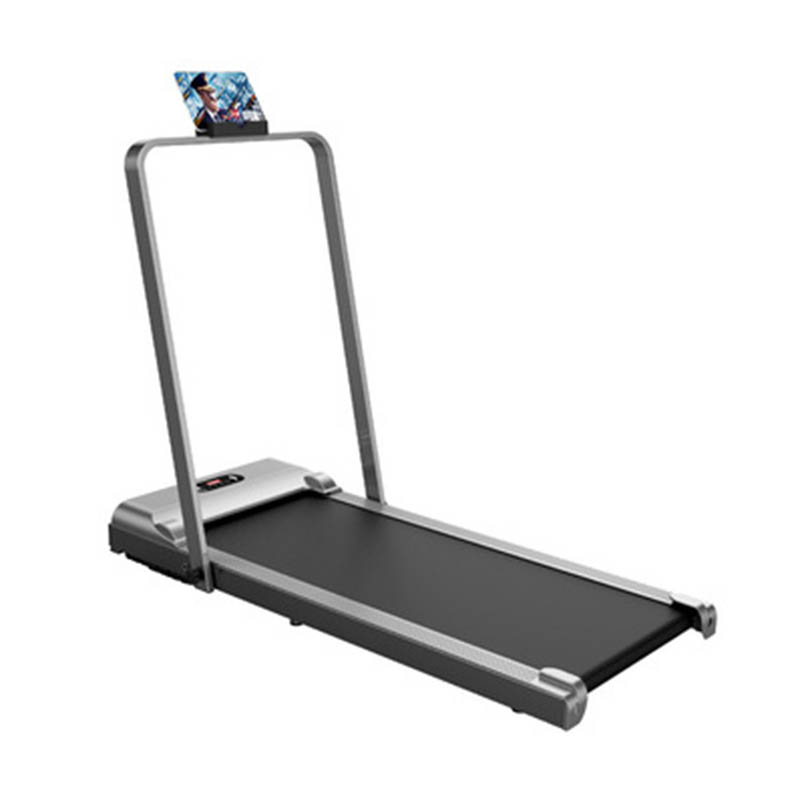

Walking Machine Moulding

We have relevant design and production capabilities, including CAD design, mold manufacturing, injection molding, plastic product production, assembly and other technologies. In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized Walking machine products to meet their specific needs.

For Walking machine products, we can only produce plastic shell + metal shell + electronic screen + skeleton. The plastic shell part is made of injection mold, the metal part needs to be made of die-casting mold, and the plastic skeleton is completed using blow molding mold.

Walking machine injection molds are mainly used for plastic shells and screens and metal part.

In terms of materials, because Walking machine products need to be durable, the materials generally choose ABS materials and PP materials. For electronic screens, optical materials are required, so the surface of the product needs to be mirrored. For example, the screen of the Walking machine uses optical material PC/PMMA, and antioxidants must be added to prevent the material from oxidizing and turning yellow. At the same time, these screen lenses need to be coated on the surface to prevent surface scratches. For the shell, most of them are currently made of PC material, and the surface is made into a mirror, which looks very high-end. There are also different plastic parts inside the Walking machine, some of which need to be flame retardant, and some require hardness, all of which we can provide. In short, as long as you want the material, we can provide it. We have a variety of raw material suppliers and can provide raw materials of any brand and any model.

In terms of Walking machine design, we have sufficient surface design experience and professional designers. We understand the structure of the human body and know what kind of curved surface design can make users use the Walking machine more comfortably and conveniently.

In terms of molds, the Walking machine is mainly composed of a plastic shell and a lens screen. For the plastic shell, you can choose to use 45#, p20, 718, 718H, S316, H13 to make the mold according to the customer's requirements for product life. But for the screen lens, the minimum requirement for the mold material is 718 mold material, and S136 mold material is generally selected. Only this material can make the screen lens achieve the effect of mirror light. We are experienced in this area and have made hundreds of lenses with different requirements to meet customer requirements.

Walking machine has corresponding metal parts. For metal parts, we have two ways to make them. The first one is injection aluminum mold, and the second one is die-casting mold. For injection aluminum mold, the aluminum material can only be melted into liquid and injected into the injection mold for molding. For such production, the mold cost will be more expensive, but the unit price of the product will be cheaper. For die-casting mold, the plate can only be placed on the die-casting mold and extruded. The mold is cheaper, but the structure of the part cannot be too complicated. The unit price of the product will be more expensive We can produce in both ways. We will give different quotation sheets for different production plans, let customers choose, and explain the advantages and disadvantages of the two methods. We are very experienced and have produced many similar products.

For Walking machine die-casting molds, they are mainly used for the metal frame of the Walking machine. In terms of materials, zinc alloy or aluminum is generally selected. We can also do sandblasting/electroplating to make the surface of the metal frame more advanced.

For the metal parts with a relatively long length, the die of extruded aluminum is basically used. The metal aluminum is extruded through the die into a profile, and the surface treatment is normally done and then cut to the desired size. In this way, the mold will be much cheaper, but the unit price of the product will be more expensive, because the product needs to be processed after production, which involves certain labor costs.

For the blow molding mold of the Walking machine, it is mainly for some large skeletons, and the material basically chooses PP material. Because the skeleton is relatively large, the blow molding mold is selected. The cost of such a mold will be much cheaper and can save a lot of costs.

We have a lot of experience in Walking machines, and we will give customers the best choice and the best production plan

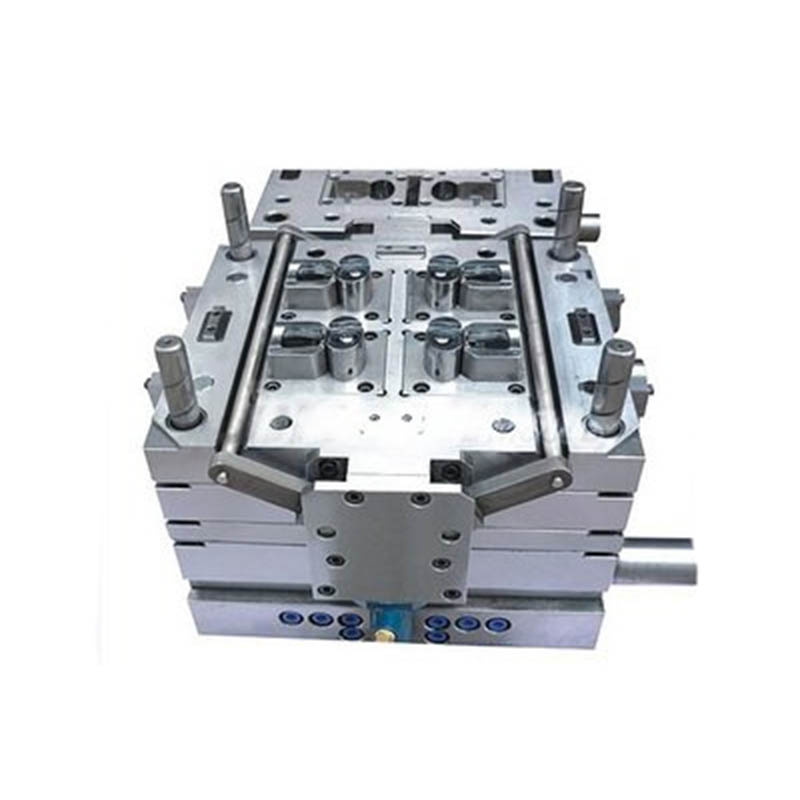

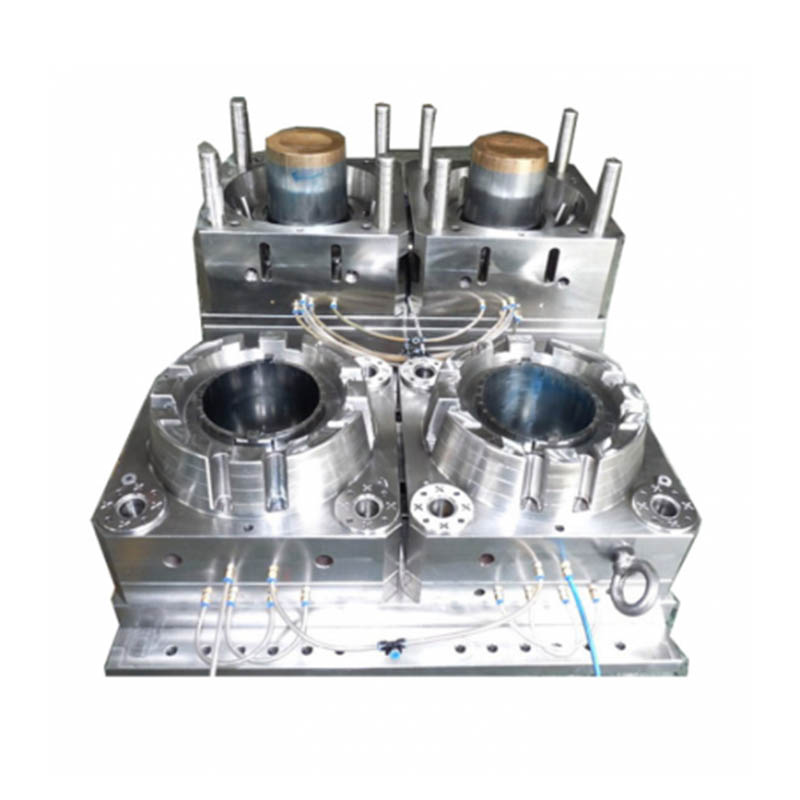

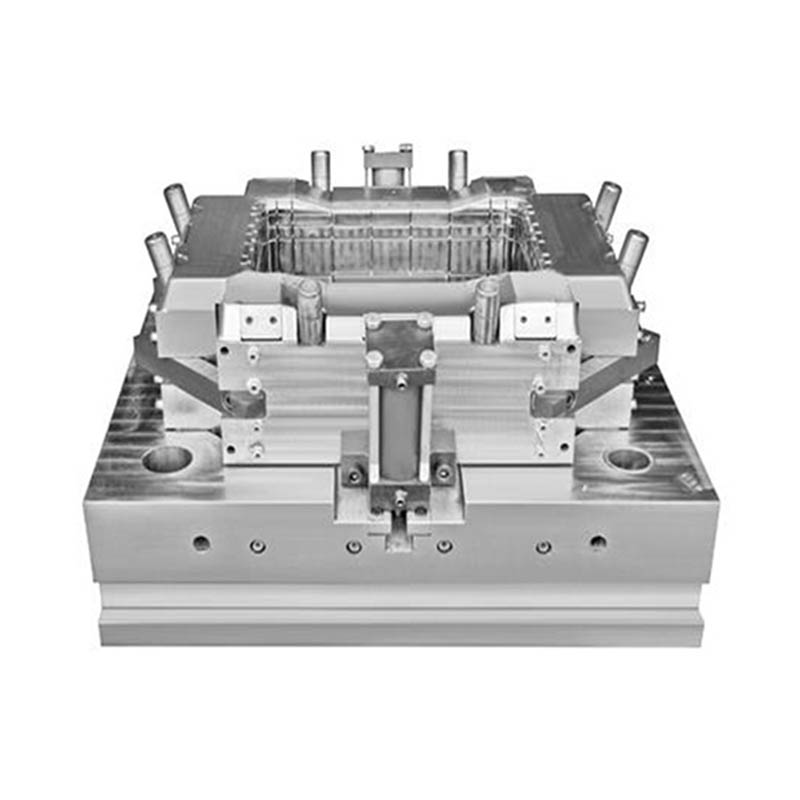

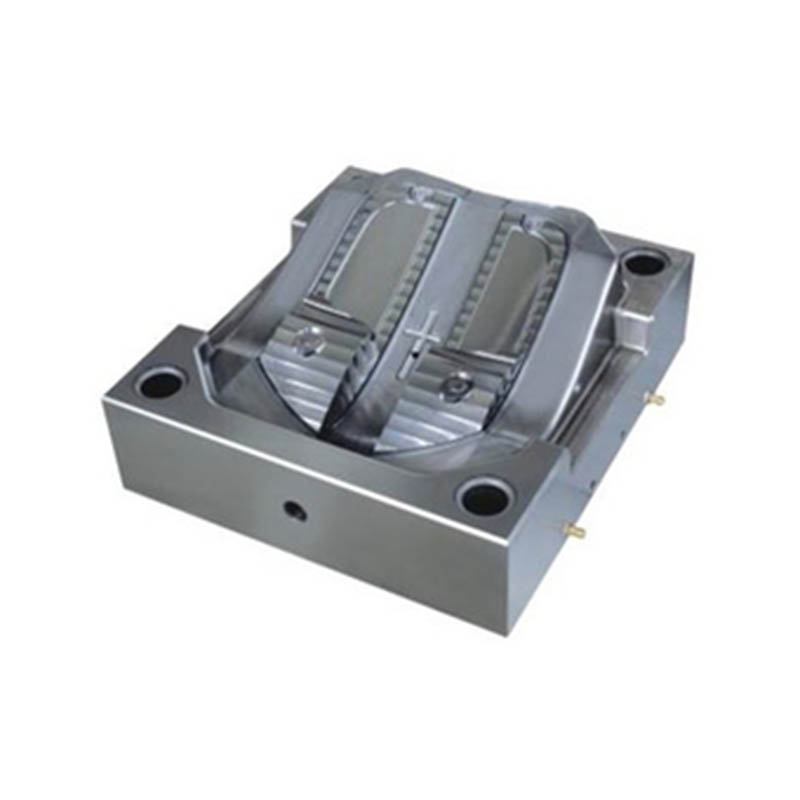

Walking machine mold

We are a Walking machine mold manufacturer, providing high-quality Walking machine mold manufacturing. As long as you want to customize/develop Walking machine products, you can find us. We have professional injection mold design and mature manufacturing technology to provide you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
