Custom headphone parts moulding

In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized custom headphone parts moulding products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For custom headphone parts moulding products, we can make corresponding plastic parts, which is mainly done through injection molds.

The injection molding process of custom headphone parts (such as headphone shells, earbuds, and internal acoustic structural components) is a model of high precision, high appearance requirements, and multi-material application. It combines the essence of consumer electronics, ergonomics and acoustic technology.

The following is a detailed professional process for the injection molding of custom headphone parts.

The entire process of injection molding for custom headphone parts

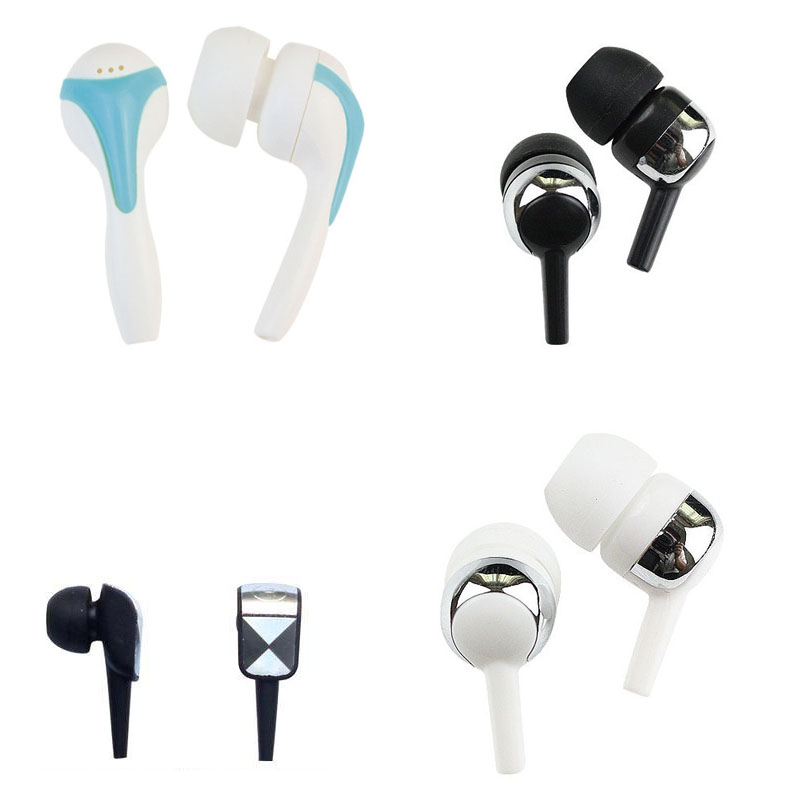

The components of headphones typically include the headphone cavity (shell), ear tips/ear caps, internal brackets, buttons, etc. The process is complex and has extremely high requirements.

Phase One: Design and Material Selection - The foundation of appearance level, feel and sound quality

This is the first step in determining the ultimate user experience of the headphones.

Structural Design and Acoustic design

Ergonomics: The shape of the cavity must fit the auricle to ensure wearing comfort and stability.

Internal structure: Precisely designed acoustic conduits, tuning holes, and speaker unit installation positions, all of which directly affect the sound quality.

Uniform wall thickness: Prevents shrinkage, ensuring structural strength and appearance.

Material selection - Diverse functions

Headphone cavity (shell)

ABS: The most commonly used, it has low cost, good strength, is easy to spray and electroplate, and can achieve various colors and effects.

PC: It is stronger and more impact-resistant, and is often used in sports or high-end headphones.

PC/ABS alloy: It has excellent comprehensive performance, balancing strength, heat resistance and processability.

Earplugs/ear caps

TPE/TPU (Thermoplastic Elastomer) : Absolute mainstream. It offers an extremely soft and comfortable touch, fits the skin well, has good sealing performance, and enhances the passive noise reduction effect. It can be combined with a hard sound guide tube by secondary injection molding (rubber coating).

Silicone: Softer, anti-allergic, but more expensive, mostly used in high-end products. Liquid silicone rubber (LSR) injection molding is usually used instead of traditional injection molding.

Internal structural components

POM (polyoxymethylene) : Used for precision gears and slide rails (such as volume knobs), it is wear-resistant and self-lubricating.

LCP (liquid Crystal Polymer) : It is used for ultra-thin and high-precision acoustic grids (dust-proof nets), with excellent fluidity and dimensional stability.

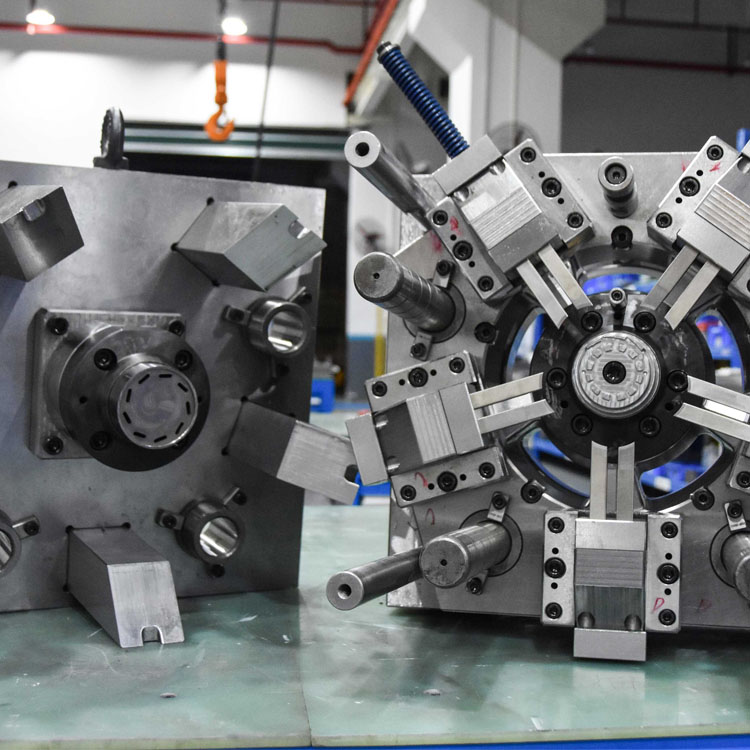

Phase Two: Precision Mold Design and Manufacturing - A Contest at the Micrometer Level

Headphone molds are representatives of high-precision molds.

Ultra-high precision processing

Precision slow wire cutting, mirror electrical discharge machining and five-axis CNC are used to process tiny acoustic holes, complex clips and curved surfaces.

The mold steel must be made of high-grade polished steel (such as S136, NAK80).

Ultimate surface treatment

Mirror polishing: Used for shell cavities that require a high-gloss surface.

Fine etching (bite) : It is used to create matte, frosted, leather and other textures, which can not only enhance the hand feel, but also hide fingerprints and minor scratches.

Hot runner system

The needle valve type hot runner is a standard configuration, ensuring an aesthetically pleasing gate, no residue, and efficient production.

Precision exhaust system

Exhaust grooves with a depth of less than 0.015mm must be opened at the end of the melt and deep rib positions to prevent trapped gas from causing charring or incomplete filling, which is crucial for microstructures.

Special two-color/rubber-coated molds

It is used for manufacturing components that combine hard and soft rubber, such as earplugs or shells with TPE soft rubber. Precise mold rotation or sliding mechanisms are required.

Phase Three: Injection Molding Process - The combination of Art and Science

The goal of process calibration is to achieve perfect appearance, precise dimensions and low internal stress.

Strict material handling

ABS, PC and other materials must be strictly dried (for example, ABS should be dried at 80-85℃ for 3-4 hours) to prevent silver streaks.

High mold temperature process

Adopt a relatively high mold temperature (ABS/PC can be raised to 60-80℃) to achieve a high-gloss surface, reduce the strength of the weld line, and lower internal stress.

Multi-stage fine injection

Adopt a "slow-fast-slow" injection speed control to eliminate jet marks and ensure the perfect replication of mold surface details.

Clean production environment

It is recommended to produce in a 10,000-level or 100,000-level dust-free workshop to prevent dust from settling on the product surface and causing appearance defects.

Phase Four: Post-processing, assembly and ultimate quality inspection

Post-processing and secondary processing

Gate removal: Automatically completed by a mechanical hand or precisely trimmed by hand.

Spraying/electroplating: The shell needs to be sprayed with UV primer, color paint, UV topcoat, or electroplated to achieve a metallic texture.

Laser engraving/silk-screen printing: Engrave the Logo, model number or indicator light transmission hole on the shell.

Assembly

In the dust-free workshop, speaker units, PCB boards, microphones, batteries, etc. are installed into injection-molded shells.

** rigorous quality inspection ** :

100% Inspection: Under standard light sources, each part is inspected with the naked eye or automated visual inspection (AOI). No scratches, dirt spots, shrinkage or color differences are allowed.

Dimensional inspection: Use a 2D image measuring instrument or a 3D image measuring instrument to inspect the key mating dimensions.

Functional test

Acoustic testing: Frequency response curves, distortion, sensitivity, etc. are tested in an anechoic chamber to ensure that the sound quality meets the standards.

Sealing performance test: Test the sealing performance of the cavity connection.

Life test: Conduct thousands of plug and pull and press tests on buttons and interfaces.
