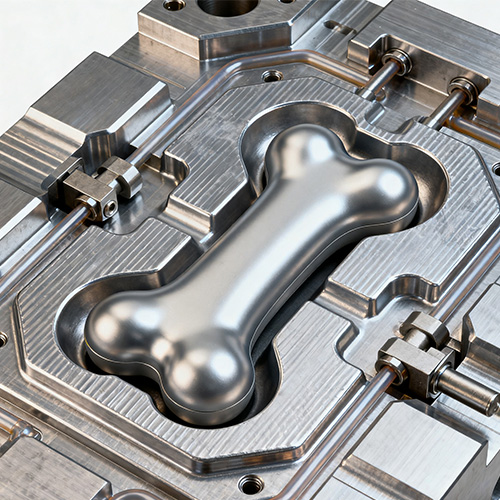

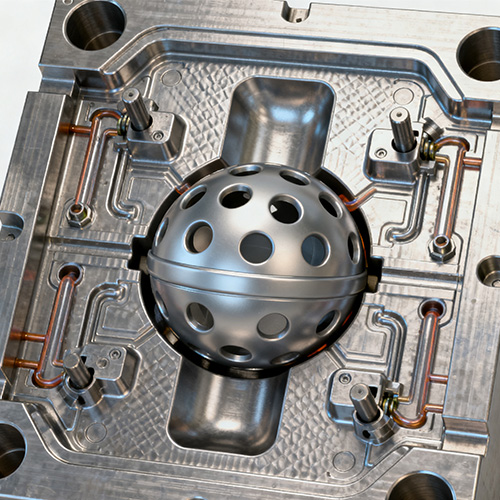

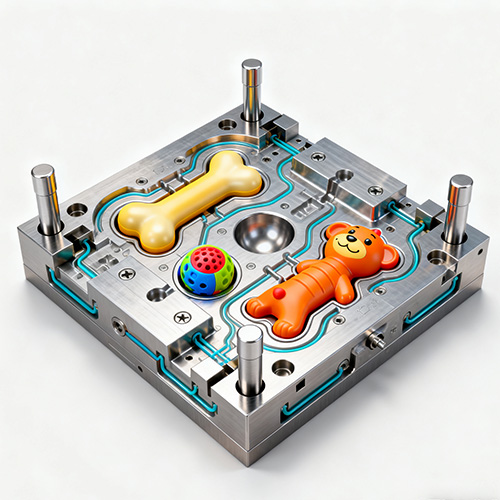

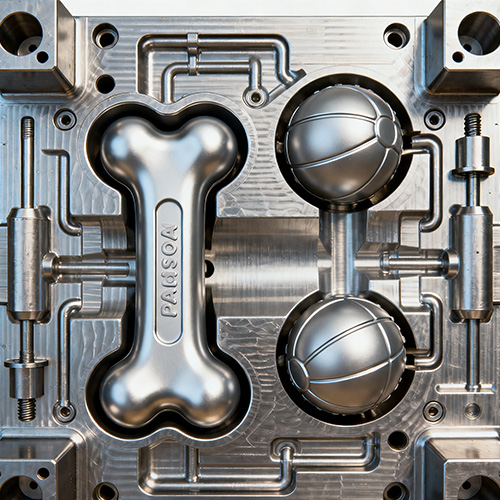

Injection Mould For Pet Toys

Pet toy injection mold is a precision tool used in injection molding process, which is made of metal materials (such as P20, 718H pre hardened steel, or H13 hot work mold steel) according to the specific shape, size, and functional requirements of pet toys. Its working principle is that under the action of the injection molding machine, plastic raw materials (such as TPR, PP, ABS, nylon, etc.) in molten state are injected into the cavity inside the mold under high pressure. After the plastic is cooled and solidified, the mold is opened to take out the molded pet toy products, so as to realize the batch production of "the first mock examination with many pieces" or "the first mock examination with one piece".

Unlike ordinary injection molds, injection molds for pet toys need to focus on the special usage scenarios of pets - for example, the design of the mold cavity needs to avoid sharp edges and corners (to prevent scratching pets), the mold material needs to withstand frequent opening and closing wear (to meet high production requirements), and some molds also need to integrate special structures (such as the "whistle cavity" used to make sound making pet toys and the "texture groove" used to make bite toys), ensuring that the final product not only meets pet safety standards, but also has practical properties such as bite resistance and impact resistance.

P&M Injection Mould For Pet Toys Introduction

The production of injection molds for pet toys is a precision manufacturing process that integrates design, processing, and testing. It usually includes the following 8 core steps, and the accuracy of each step directly affects the final performance of the mold:

1. Requirement analysis and design planning

Firstly, the mold manufacturer needs to coordinate with the pet toy brand to clarify the product parameters (size, weight, material), functional requirements (such as whether it produces sound and can be assembled), production batch (small batch trial production or large batch mass production), and safety standards of the toy. Based on these requirements, the design team will use CAD software to draw 2D assembly drawings and 3D models of the mold, focusing on planning key structures such as the number of cavities, cooling water path positions, exhaust hole sizes, and ejection mechanism types. CAE software will be used for mold flow analysis to simulate the flow, filling, and cooling processes of plastic in the mold, identify potential defects in advance, and optimize the mold design scheme.

2. Selection and procurement of mold materials

Select appropriate mold materials based on the design requirements and expected service life of the mold.

3. Mold processing: Manufacturing the basic framework of the mold

The mold base is the "skeleton" of the mold, consisting of fixed mold seat plate, movable mold seat plate, guide column, guide sleeve and other components. Its main function is to support the mold cavity and ensure accurate opening and closing of the mold. During processing, the steel is first roughly machined using a milling machine to mill out the approximate shape of the mold base and installation groove; Then, precision machining is carried out using a grinder to control the flatness and parallelism errors of the mold blank within 0.01mm; Finally, assembly holes such as guide column holes and screw holes are machined using a drilling machine, and rust removal treatment (such as sandblasting and phosphating) is performed on the surface of the mold base to prepare for subsequent cavity processing.

4. Mold cavity processing: Manufacturing of the core molding part of the mold

The cavity is a critical part that directly determines the shape of pet toys, and its processing accuracy requires extremely high precision. According to the complexity of the cavity, various precision machining processes will be used:

CNC milling, electrical discharge machining (EDM), wire cutting machining (WEDM), polishing treatment

5. Mold component assembly: Combine dispersed components into a complete mold

6. Trial molding and debugging: Verify mold performance and optimize defects

Trial molding is a key verification step in the mold production process, usually carried out on dedicated injection molding machines. Firstly, set injection molding parameters based on the characteristics of the toy's raw materials; Then, inject the plastic raw materials into the mold, take out the molded "trial mold sample", and perform multidimensional testing on the sample:

Dimensional inspection, appearance inspection, performance inspection.

7. Mold surface treatment: improve mold durability and safety

8. Mold acceptance and delivery: Ensure compliance with production requirements

P&M Injection Mould For Pet Toys(Specification)

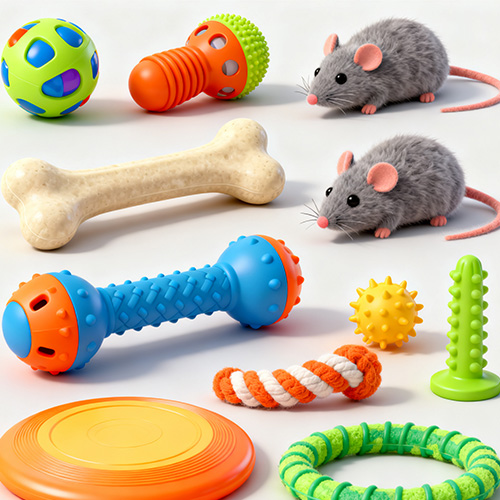

P&M Injection Mould For Pet Toys Feature And Application

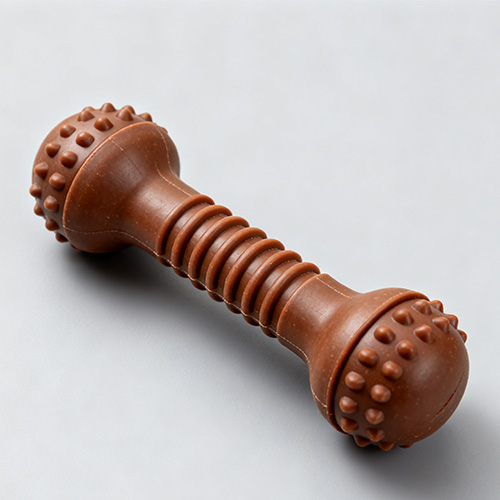

1. Production of chew pet toys

Chewing is the nature of pets (especially dogs), and such toys need to have the characteristics of wear resistance and bite resistance. The corresponding injection mold design focuses on "structural strength" and "material compatibility".

2. Production of sound producing pet toys

Sound producing toys attract pets' attention through built-in speakers (such as whistles and airbags), and the core requirements of such molds are "integrated molding" and "sealing guarantee".

3. Production of interactive pet toys

Interactive toys are mainly used for playing between pets and their owners, and should have the characteristics of being lightweight and easy to control. The corresponding mold design focuses on "lightweight" and "multifunctional integration".

4. Production of educational pet toys

Puzzle toys enhance pets' cognitive abilities through complex structures, and the design of such molds is the most difficult, requiring precise coordination of multiple components and complex cavity molding.
