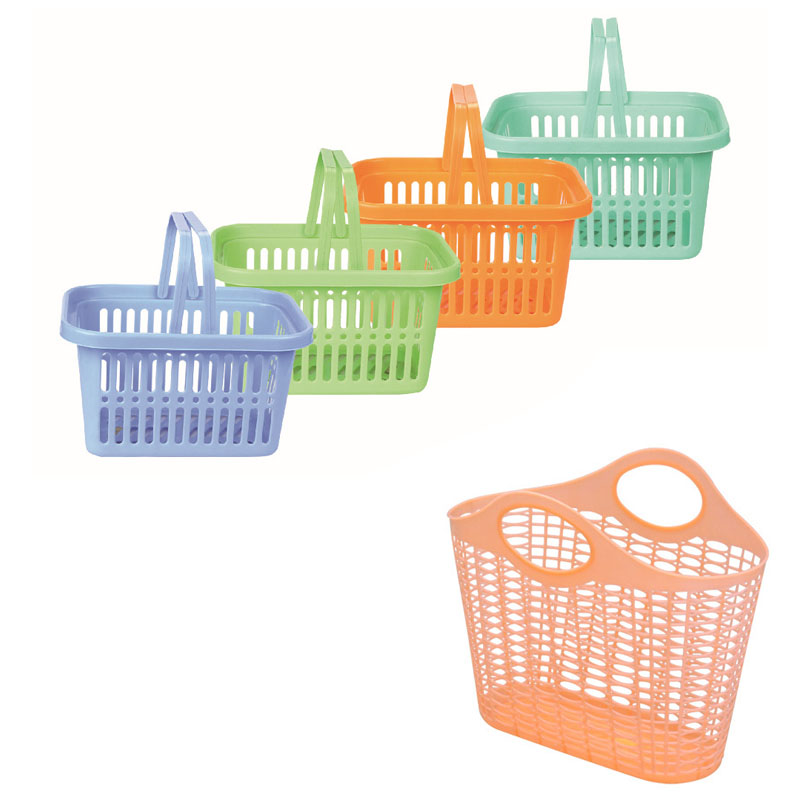

Injection mould supermarket basket

In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized injection mould supermarket basket  moulding products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For injection mould supermarket basket  moulding products, we can make corresponding plastic parts, which is mainly done through injection molds.

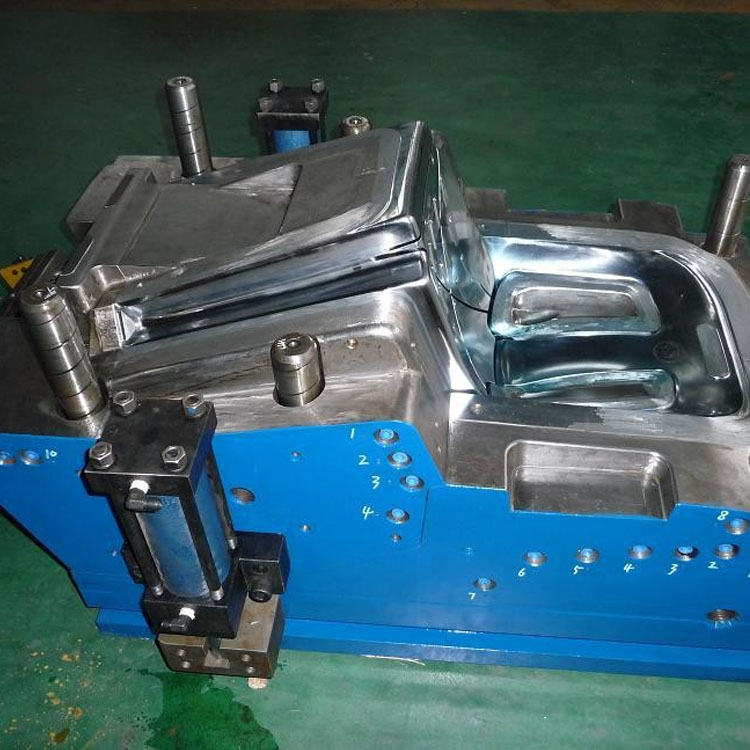

Creating an injection mold for a supermarket shopping basket is a typical large-scale project, requiring complex processes and high technical requirements.

The following details the production process for a supermarket shopping basket injection mold:

The entire process for supermarket shopping basket injection mold production can be divided into five core phases: Design Review → Mold Design and Processing → Mold Assembly and Trial → Mass Production and Delivery → After-sales Service.

Phase 1: Design Review (DFM - Design for Manufacturing Feasibility)

This is the most critical step, determining the success or failure of all subsequent work. The injection molding plant requires close communication with the client (supermarket or brand).

Product Requirements Confirmation:

Dimensions and Capacity: Confirm the length, width, height, and carrying capacity of the shopping basket (e.g., 20L, 30L, 50L).

Structural Design: Confirm the handle type (integrated/foldable), the layout of the bottom reinforcement ribs, whether the sidewalls are nestable and stackable, and whether the edges are smooth and scratch-resistant.

Material Requirements: High-impact polypropylene (PP) is typically used due to its excellent toughness, light weight, low cost, and food contact compliance.

Color Requirements: Provide a Pantone color card number or swatch to ensure color accuracy.

Load Test Standard: Confirm the maximum load required (e.g., 25 kg) and the test method.

Mold Design for Material Function (DFM) Report:

Draft Angle Analysis: Due to the deep nature of the shopping basket, a sufficient draft angle (typically at least 1.5°) is required to prevent demolding or damage the product.

Parting Line (P/L) Determination: Determine the location of the parting line between the front and rear molds, typically along the top edge of the basket. This ensures aesthetics without compromising functionality.

Gating System Design: Due to the large size of the product, a hot runner system must be used with multiple gating points to ensure rapid and even filling of the large cavity, minimizing weld marks and conserving raw material.

Cooling System Design: Design efficient cooling water circuits to ensure uniform mold temperature, shorten injection cycles, and improve production efficiency.

Ejector System Design: Plan the position and number of ejector pins or push plates to ensure smooth, uniform, and deformation-free ejection of large, deep-cavity parts.

Venting System Design: Create venting slots at weld lines and the final filling area to prevent trapped air from causing defects such as burning and underfill.

Phase Two: Mold Design and Processing (Core Manufacturing)

Mold Design:

Fully 3D mold design is performed using advanced 3D software such as UG, Pro/E (Creo), and CATIA.

Production of detailed part drawings, assembly drawings, wire-cut drawings, electrode diagrams, etc.

Material Preparation:

Mold Base: Select a large standard mold base (such as LKM mold base) to ensure rigidity and stability.

Mold Core/Cavity: Use high-performance mold steels such as P20, 718H, and S136 (for excellent rust resistance) and pre-harden them to ensure long life.

Precision Machining:

CNC Milling: Uses a large gantry CNC machine tool to perform rough and fine machining of the mold base and core, forming the main cavities and cores.

Deep Hole Drilling: Processes complex cooling channels.

Electrical Discharge Machining (EDM): Uses copper electrodes to perform electrical discharge machining on corners, ribs, and logos that are difficult to machine using CNC.

Wire Cutting Machine (WEDM): Used to machine precision straight-walled parts such as inserts and sliders.

Polishing/Texturing: Polishes the cavity surface to a mirror finish; or performs texturing (sunburst) to achieve a matte or leather-like texture on the shopping basket surface.

Phase 3: Mold Assembly, Mold Trial, and Acceptance (T0 Mold Trial)

Mold Assembly (Fitting):

Technicians assemble all processed parts, including sliders, lifters, ejectors, and hot runner systems, and check for clearances and smooth movement.

Mold Trial:

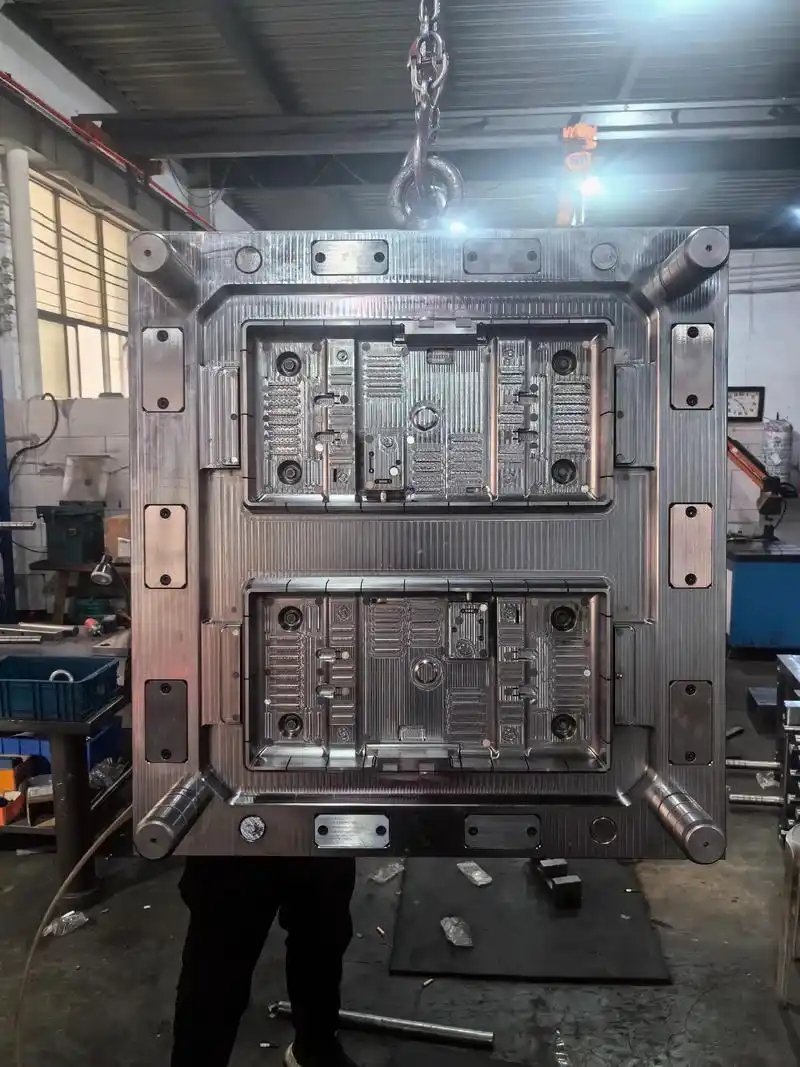

The mold is hoisted onto a large injection molding machine with a capacity of over 1,000 tons.

Connect the hot runner temperature control box and cooling water pipes.

Begin debugging injection molding process parameters: injection speed, pressure, holding pressure, screw position, cooling time, etc.

Test mold sample evaluation:

Dimensional inspection: Use a 3D measuring instrument to check whether key dimensions conform to the drawings.

Appearance inspection: Check for defects such as shrinkage, flash, air marks, weld marks, missing material, and white top.

Functional testing: Perform load tests, stacking tests, drop tests, etc.

Submit the sample to the customer for approval.

Mold modification and optimization:

Based on the test mold results and customer feedback, make minor adjustments to the mold (such as adjusting gate size, modifying venting, adjusting polishing, etc.) until the sample is fully qualified.

Phase 4: Mass Production and Delivery

Small-batch trial production: After the process parameters stabilize, conduct small-batch production with continuous quality monitoring.

Mass production: The mold is put into continuous production 24 hours a day. Operators are required to conduct regular quality checks.

Packaging and Delivery: The shopping baskets are packaged as required (typically bagged and stacked) and delivered to the customer.

Phase 5: Mold Maintenance and Care

Regular mold maintenance is performed: cleaning the cavity, rust prevention, checking for wear on moving parts, and replacing consumable parts to extend the mold life. (A good shopping basket mold typically lasts for over 500,000 to 1,000,000 cycles).

Flowchart Overview

Customer Requirements → 3D/2D Drawings → Design for Material (DFM) Analysis Report → Mold Design → Procurement of Steel/Mold Base/Standard Parts → CNC Machining → EDM/WEDM Machining → Polishing/Texturing → Mold Assembly → T0 Mold Trial → Sample Inspection and Customer Confirmation → Modifications and Optimization → Final Mold Trial (T1) → Customer Approval → Mass Production → Mold Maintenance

We are a injection mould supermarket basket moulding manufacturer, providing high-quality injection mould supermarket basket moulding manufacturing. As long as you want to customize/develop injection mould supermarket basket moulding products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

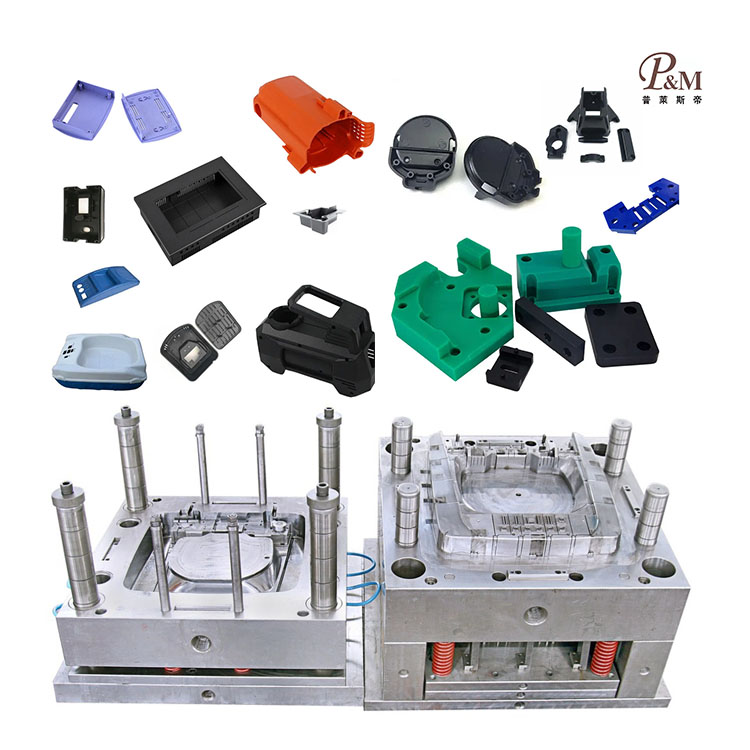

Plastic Injection Mould making

Plastic molding specifications

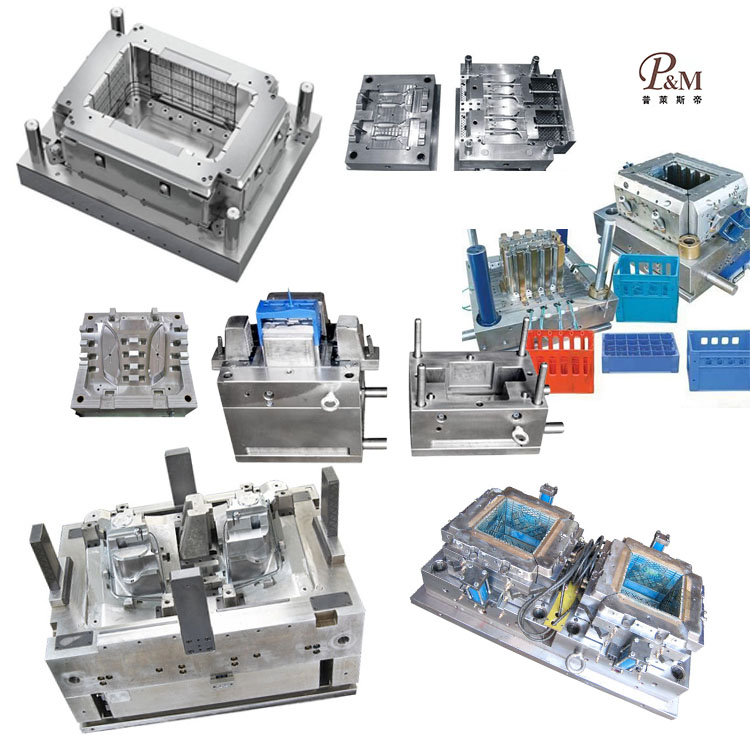

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
