Injection Moulding Custom Part

Injection Moulding Custom Part refers to personalized plastic parts produced through customized mold design and injection molding processes according to customers' specific needs (such as product structure, dimensional accuracy, performance requirements, appearance design, etc.). Different from standardized mass-produced parts, such parts require the development of exclusive molds for single or small-batch application scenarios. From raw material selection, mold structure design to injection molding process parameter setting, all are accurately matched around customer needs, and finally produce non-universal parts that meet specific functional and appearance requirements. They are widely used in personalized equipment or special working condition scenarios in automotive, electronics, medical, home appliance and other fields.

P&M Injection Moulding Custom Part Introduction

A.Core Advantages of Injection Moulding Custom Part

1. High Adaptability to Specific Needs

Injection Moulding Custom Parts can realize "demand-driven" production and accurately match customers' personalized requirements for parts: in terms of structure, complex special-shaped structures (such as integrated parts with buckles, grooves, and hollows) can be designed according to the equipment assembly space to avoid assembly errors caused by multi-part splicing; in terms of precision, through customized molds and process optimization, dimensional tolerances at the ±0.01mm level (such as precision connectors in medical equipment) can be achieved to meet high-precision assembly needs; in terms of performance, through material modification or compounding (such as adding glass fiber reinforcement, flame retardants), parts can have special properties such as high and low temperature resistance, impact resistance, and corrosion resistance, adapting to extreme working conditions (such as high-temperature resistant parts in automobile engine compartments).

2. High Cost-Effectiveness for Small-Batch Production

For small-batch (usually 100-10,000 pieces) part requirements, injection molding customization has more cost advantages than traditional processing methods (such as CNC milling, 3D printing): CNC milling requires piece-by-piece processing, which is inefficient and has high unit cost; 3D printing does not require molds, but has slow production speed and low material strength, making it difficult to meet batch functional needs. After the mold development is completed, injection molding customization can realize rapid mass production, and the unit cost gradually decreases with the increase of output. The service life of the mold can reach 100,000-1,000,000 times (depending on the mold steel material and usage frequency). If there are additional orders later, the mold can be directly reused, further reducing long-term production costs.

3. Strong Structural Integrity and Stability

Injection Moulding Custom Parts are formed by one-time injection molding, which can avoid structural weak points caused by multi-part splicing (such as easy falling off of glue joints and easy loosening of screw connections). The overall structural integrity is stronger and the mechanical performance is more stable. For example, compared with spliced shells, the customized shell in home appliances through integrated injection molding has an impact resistance increased by more than 30%, and there is no splicing gap on the surface, so the dustproof and waterproof performance is better; at the same time, the plastic melt fills the cavity evenly during the injection molding process, the internal density of the part is consistent, and there are no defects such as bubbles and shrinkage cavities, so the performance attenuation rate is low during long-term use and the reliability is higher.

B.Core Process of Injection Moulding Custom Part

1. Demand Communication and Scheme Design

This stage is the foundation for the success of customized parts, and in-depth communication with customers is required: clarify the functional requirements of the parts (such as load-bearing, sealing, insulation), usage environment (such as temperature range, medium contact), dimensional accuracy (provide 2D/3D drawings or samples), appearance requirements (such as color, surface texture, logo identification) and output requirements (determine the number of mold cavities and materials). Based on the requirements, engineers draw 3D models of parts through CAD (Computer-Aided Design) software, and use CAE (Computer-Aided Engineering) software for structural simulation analysis (such as stress analysis, assembly interference check), optimize design details such as part wall thickness (avoid deformation caused by uneven wall thickness) and fillets (reduce stress concentration), form a preliminary customization plan, and enter the mold design stage after confirmation with customers.

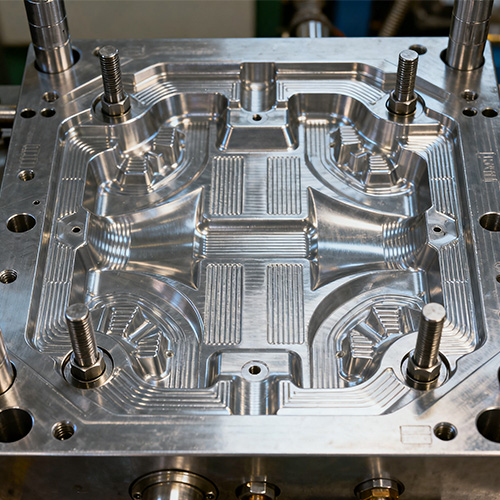

2. Custom Mold Development

Mold design is carried out according to the 3D model of the part, and the core includes: cavity and core design (strictly according to the part size, reserving plastic shrinkage rate, such as 1.5%-2% for PP materials), gating system design (select gate type according to part structure, such as pin gate for parts with high appearance requirements, side gate for thick-walled parts), cooling system design (arrange cooling water channels evenly according to part thickness to ensure consistent cooling rate), ejection system design (select ejector pins, ejector sleeves and other components to avoid damaging parts during ejection). Mold materials are selected according to output: P20 pre-hardened steel (low cost, fast processing) can be used for small batches (≤10,000 pieces); H13 hot work mold steel (strong wear resistance, long service life) is used for large batches (≥100,000 pieces). Mold processing uses precision equipment (such as CNC milling, EDM, wire cutting) to ensure that the mold precision is consistent with the part design. After processing, mold trial and debugging are carried out to verify the feasibility of the mold.

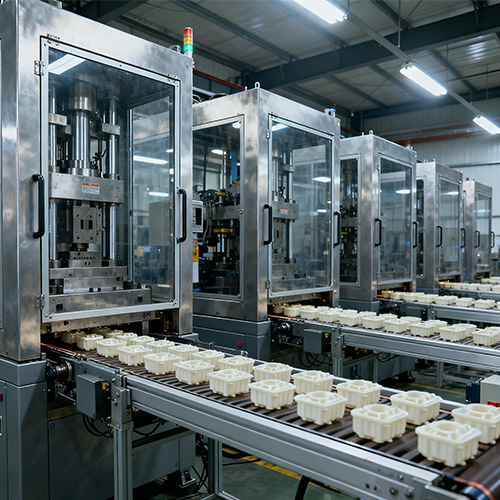

3. Injection Production and Quality Inspection

After the mold debugging is qualified, it enters the injection production stage: set process parameters according to the material characteristics of the part, such as PC material injection temperature 260-300℃, injection pressure 80-120MPa, to ensure that the plastic melt is fully melted and filled evenly; real-time monitor parameters such as mold temperature and injection speed during production to avoid defects such as flash and material shortage. Quality inspection is carried out in multiple links: appearance inspection (check whether there are scratches, bubbles, color differences on the part surface through visual or machine vision); dimensional inspection (use a coordinate measuring machine to detect key dimensions to ensure compliance with tolerance requirements); performance inspection (such as tensile test, temperature resistance test to verify the mechanical properties and environmental adaptability of parts). Unqualified parts need to analyze the reasons (such as mold wear, process parameter deviation) and adjust, while qualified parts undergo subsequent processing (such as gate removal, polishing, surface coating).

4. Follow-up Services and Mold Maintenance

After delivering the customized parts, it is necessary to provide subsequent technical support: if the customer reports part assembly problems, assist in adjusting the assembly plan or optimizing the part structure; if additional orders are needed, quickly start the mold reuse and production process to shorten the delivery cycle. At the same time, provide customers with mold maintenance suggestions: regularly clean the mold cavity (avoid part defects caused by plastic residues), check the wear of guide pillars and bushes (replace in time to ensure precision), and perform anti-rust treatment on the mold (such as applying anti-rust oil) to extend the mold service life. If the customer has part upgrade needs in the future, modifications can be made based on the original mold (such as adjusting cavity size, adding structural details) to reduce secondary development costs.

P&M Injection Moulding Custom Part(Specification)

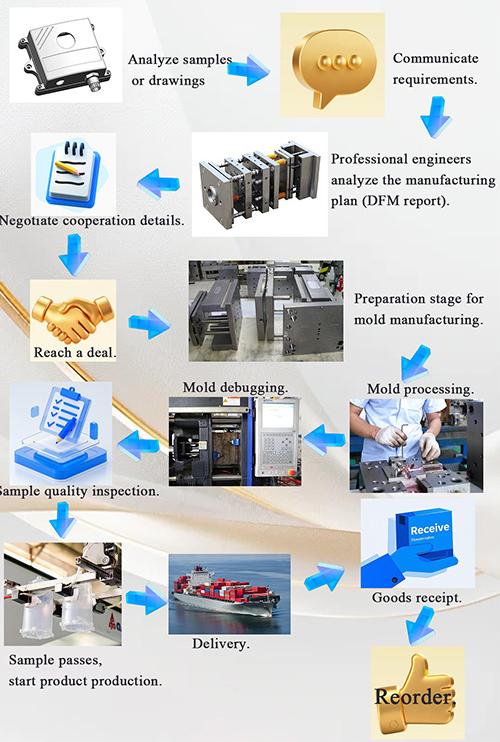

Customization Process

Factory&About US

NingBo Plastic Metal Product Co.,Ltd (P&M) is located in Yuyao, the so-called Mould City, Plastic Kingdom, in the southern tip of Hangzhou Bay Bridge,north of Shanghai, the east of Ningbo Port,tight double line of State Road 329 on land, sea and air trafic into a network to facilitate transport.

By the abundant technical strength,scientific management methods and good after-sales service, product deeply trusted and welcomed by customers from all over the world. P&M holds improved system of development and production, to achieve mold design, plastic products manufacturing and automatic production. Our main products is design and manufacturing of plastic mold, plastic product, metal product. 90% products of our enterprise are exported to America, Europe, Germany, Japan, Australia, etc. For many years, the company has been committed to the research of raw materials. The company has its own trademark and dozens of patents, providing more convenient technical support for mold making and product production. P&M started domestic business from 2008,named Shundi Mould Factory. And opened the international market from 2014. We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

P&M adheres to market-oriented to the quanlity of life and focus on quality service and continuous development of new products,determined to establish a better corporate image,and our friends at home and abroad to carry a wide range of business exchanges and cooperation, create brilliant.

Packing

Packaging according to your needs

1. By air ,it takes 3-7 days for delivery.

The goods can be shipped by DHL , Fedex , UPS .

2. By sea ,the delivery time is based on your port.

To South East Asian Countries takes about 5-12 days.

To Middle east countries takes about 18-25 days.

To European countries takes about 20-28 days.

To American countries takes about 28-35 days.

To Australia takes about 10-15 days.

To African countries takes about 30-35 days.

P&M Bike parts, centered around children, balances safety, health, and fun, aiming to add a bright color to children's beautiful childhood. We look forward to working together with you to serve our children.

The path of a child's growth is paved with bricks and tiles.

FAQ

1.Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2.How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Mould, Plastic Product, Metal Product, Dental Product, CNC machining.

4.Why should you buy from us not from other suppliers?

We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply: 3d design - 3d printing - mold making - plastic injection.

5.What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency: USD, EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6.What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Well-trained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
