mould injection plastic

In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized mould injection plastic products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For mould injection plastic products, we can make corresponding plastic parts, which is mainly done through injection molds.

The core points of injection plastic molds, combined with the cutting-edge technology and development trends in 2025, are systematically explained from the four dimensions of material science, structural design, intelligent control and sustainable manufacturing:

I. Mold materials and surface strengthening

1. Substrate selection criteria

Pre-hardened steel, small and medium-sized molds, P20 (HRC 30-32), low cost and fast processing

Quenched steel, high-life demand parts, H13 (HRC 48-52), heat crack resistance ↑40%

Powder metallurgy steel, precision optical parts (lenses/light guide plates), ASP60 (HRC 64-66), mirror polishing Ra≤0.01μm

2. Surface treatment technology

Nano-composite coating:

AlCrN/TiSiN multilayer coating (thickness 3-5μm), wear resistance ↑200% (friction coefficient <0.15)

Micro-arc oxidation (MAO): 20μm ceramic layer is generated on the surface of aluminum alloy cavity, heat dissipation efficiency ↑35%

Functional texture:

Leather grain laser engraving (accuracy ±5μm), supports biomimetic design (such as lotus leaf effect texture)

II. Structural design innovation

1. Thermal management system revolution

graph LR

A[hot runner] --> B[needle valve sequential control]

A --> C[precision temperature control ±0.3℃]

D[cooling system] --> E[3D conformal water channel]

D --> F[topology optimization flow channel]

G[mold temperature controller] --> H[partition pulse cooling]

2. Exhaust and ejection system

Exhaust, vacuum assisted + multi-step groove, residual gas ≤ 0.01% volume

Ejection, electromagnetic driven ejector (response < 1ms), ejection balance > 95%

III. Intelligent process control (2025 core technology)

1. AI-driven closed-loop optimization

Real-time control matrix:

# Melt front pressure prediction model

def pressure_control(sensor_data):

return CNN_LSTM(sensor_data).predict() # Accuracy ±0.5MPa

Self-learning defect repair: Generate process compensation solution based on GAN network (sink mark elimination rate > 90%)

IV. Green manufacturing and cost control

1. Sustainable technology breakthrough

Mold lightweight, topology optimization + additive manufacturing titanium alloy, weight ↓ 40%, energy consumption ↓ 25%

Recycled material adaptation, mold cavity corrosion resistant coating upgrade, support 100% recycled PP injection molding

Low-carbon manufacturing, solar-driven mold temperature controller, single mold carbon footprint ↓ 1.2 tons/year

2. Cost reduction design strategy

Modular combination mold frame: standard parts account for ＞80% (manufacturing cycle↓60%)

Quick mold change system: hydraulic locking + intelligent positioning (switching time <3min)

V. Frontier trends and challenges

4D printing mold

Shape memory alloy (NiTiHf) mold core, adaptive shrinkage deformation (compensation rate ±0.08%)

Bio-integrated manufacturing

Injection molding synchronously generates antibacterial surface (silver ion implantation), medical application approved by FDA 510(k)

Quantum sensing monitoring

Diamond NV color center sensor, real-time monitoring of molecular orientation in the mold (resolution 10nm)

Mold full life cycle management matrix

Design, parametric AI design (AutoMold), development cycle ≤15 days

Manufacturing, five-axis milling + ECM electrochemical machining M, accuracy ±5μm

Service, blockchain maintenance records, unexpected downtime <0.5%

Recycling, material sorting laser marking, recycling rate >85%

2025 Technology Iron Law:

Precision rule: For every 1℃ increase in cooling efficiency, cycle time ↓0.6% (Δt=Q/αA)

Economic red line: mold cost ≤20% of the total cost of injection molded parts

Failure warning: areas with stress concentration factor >2.5 must be redundantly reinforced

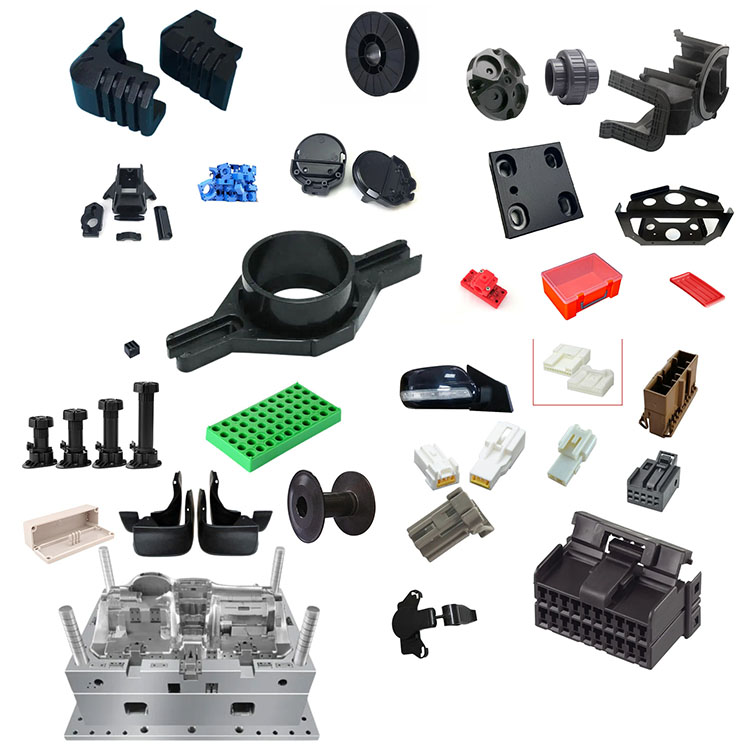

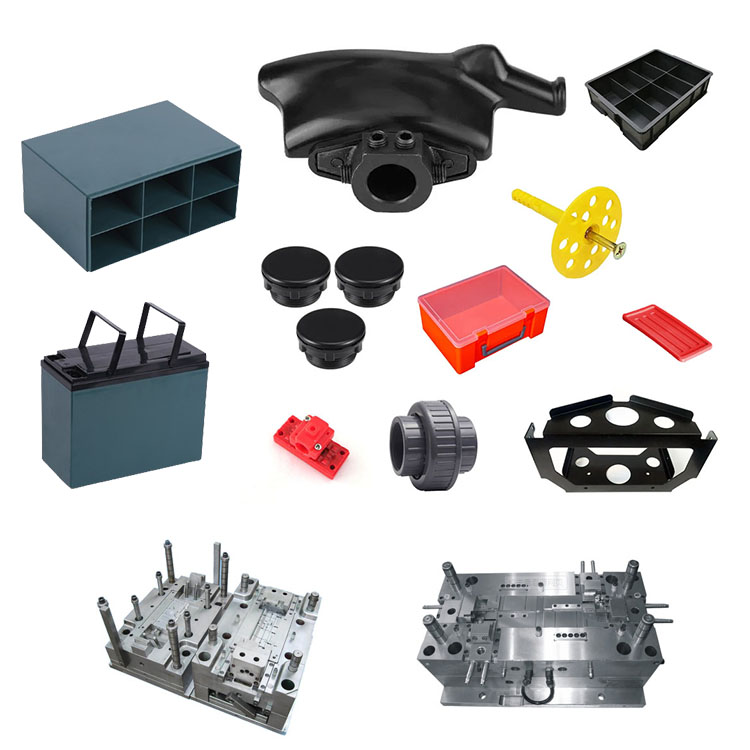

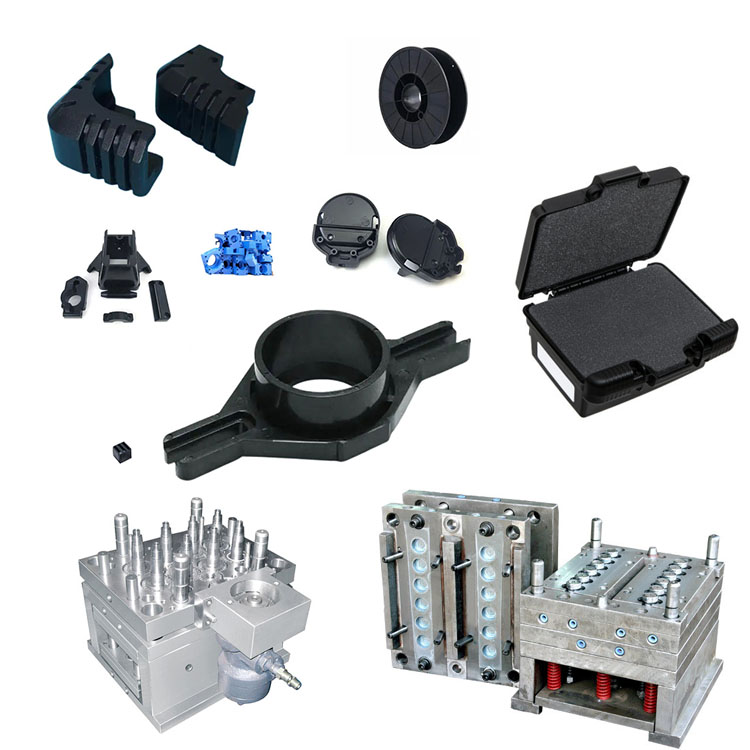

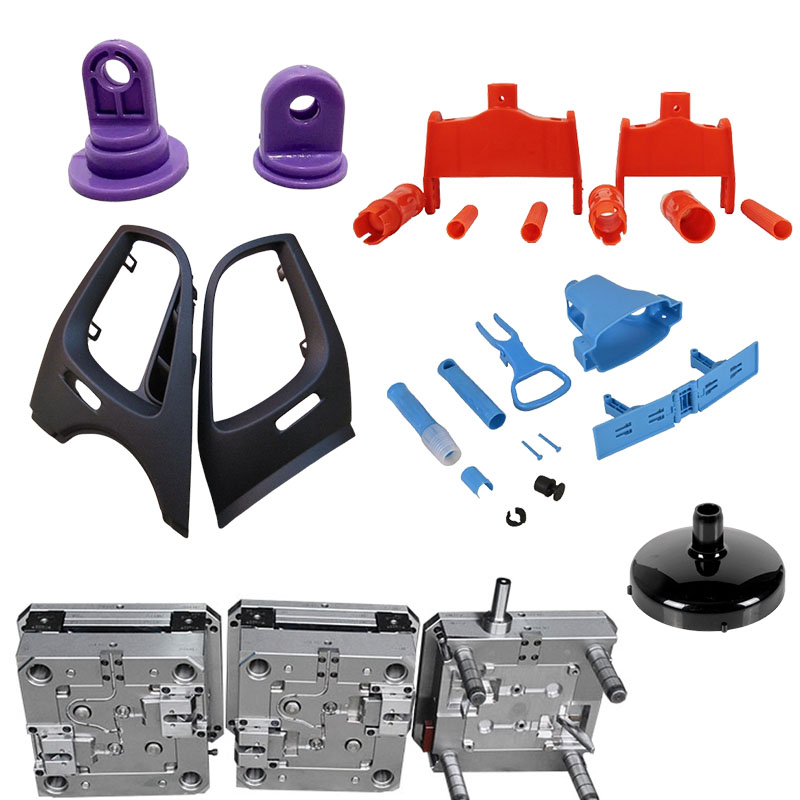

Mould injection plastic

We are a mould injection plastic manufacturer, providing high-quality mould injection plastic manufacturing. As long as you want to customize/develop mould injection plastic products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
