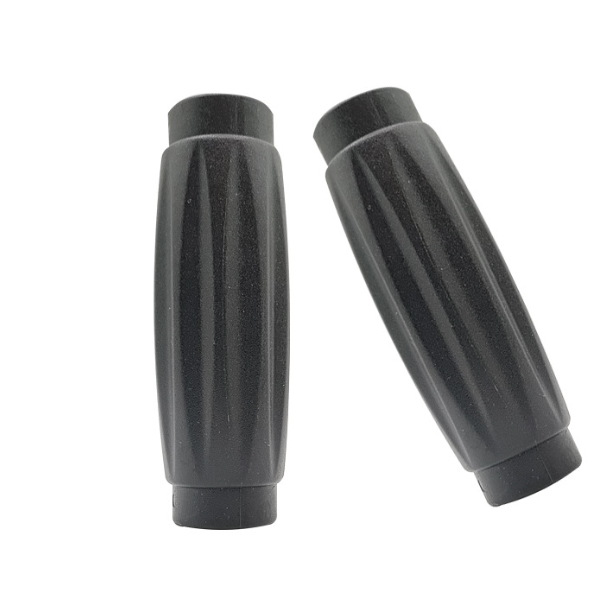

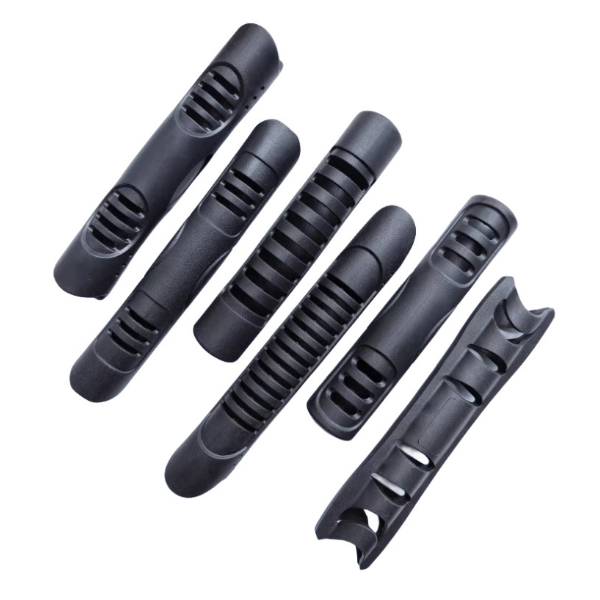

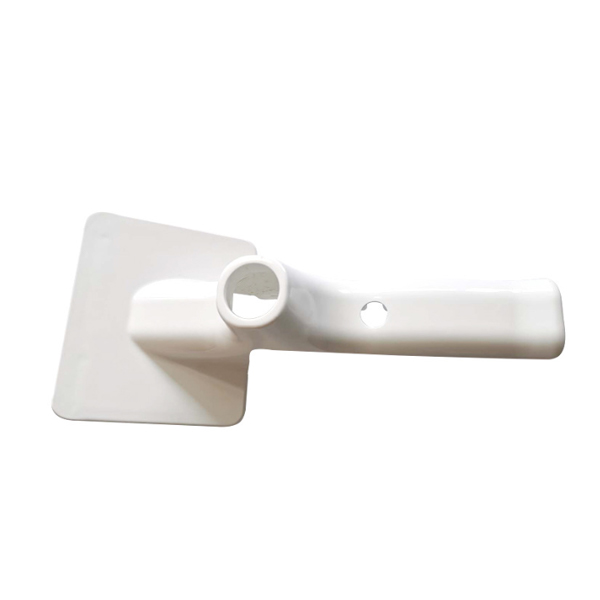

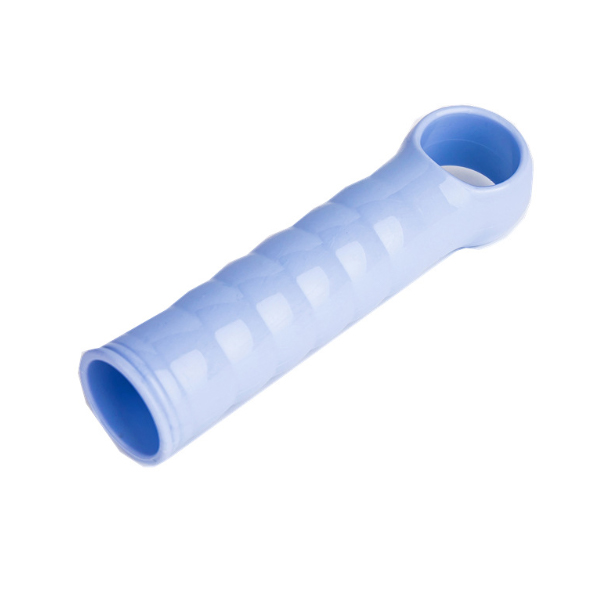

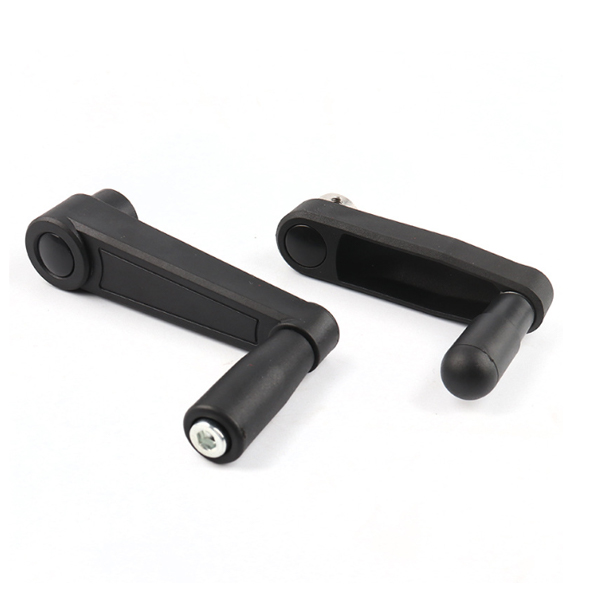

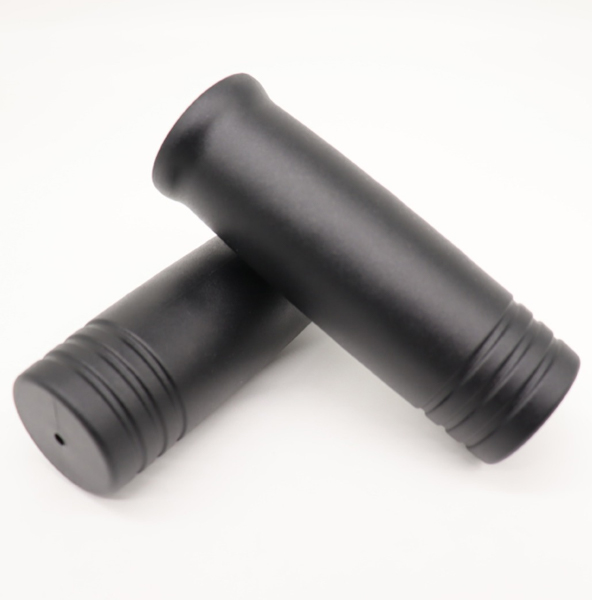

Plastic handle mold

As an industry leader in plastic handle mould development and injection moulding, we focus on providing high-precision, high-performance, and highly customized handle solutions for tooling equipment, household appliances, medical devices, sports equipment, and other fields. From mould design and material selection to mass production and component assembly, we help our customers create functional, comfortable and cost-effective plastic handle parts through our vertically integrated manufacturing system and 20 years of injection moulding technology.

1. Ergonomic Grip Design

Dual-material injection molding process:

Outer layer: High-strength hard plastics such as ABS/PC/PA, Shore D hardness D75–D85, capable of withstanding mechanical loads

Inner layer: TPE/TPU soft rubber (Shore A hardness A40–A70), provides shock absorption and anti-slip properties, with a contact surface friction coefficient ≤ 0.3

Curved surface precision:

Reverse engineering via 3D scanning, with tolerance control of ±0.1mm, ensuring a natural curvature that fits the hand's ergonomic contour

Custom anti-slip textures:

12 texture options including diamond-shaped bumps, wave patterns, and microporous ventilation

Enhances friction resistance by 50%

Laser-etched mold technology enables fine textures with a depth of 0.05mm

2. High-Strength Connection Structure

Insert molding with metal components:

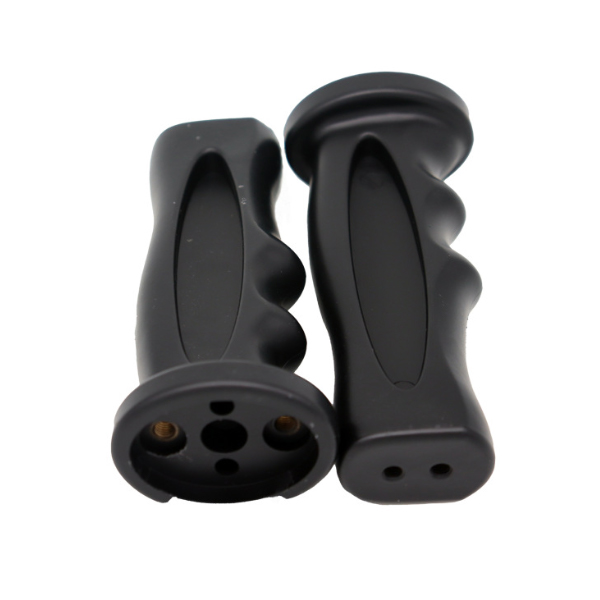

Embedded stainless steel threaded inserts (M6–M20) and spring clips to enhance the grip-to-device connection strength

Tensile resistance ≥ 500N, torque resistance ≥ 30N·m

Quick-assembly interface:

Standardized slot/rail designs (compliant with ISO 9001 interchangeability standards) reduce customer assembly time

Optional fool-proof structures to prevent incorrect installation

3. Lightweight Design & Functional Integration

Microcellular foam injection molding:

Reduces density by 15%–20% while maintaining equivalent mechanical performance (e.g., impact strength ≥ 60kJ/m²)

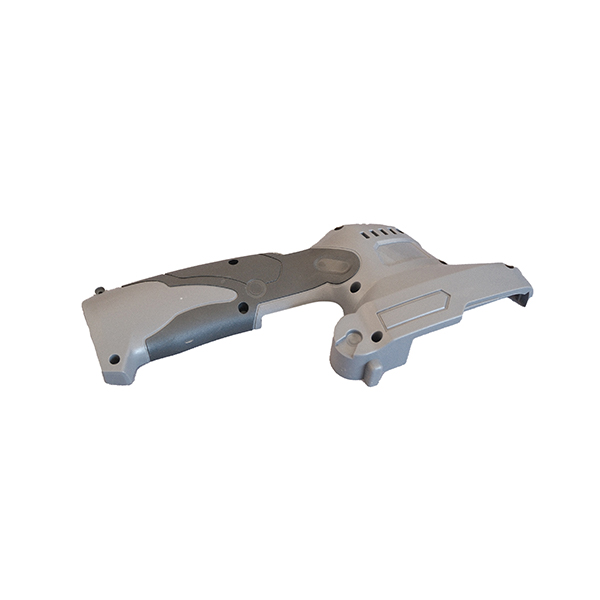

Ideal for weight-sensitive applications such as power tool handles and trekking pole grips

Built-in wiring channels:

Concealed wire groove design (width 3mm ± 0.1), supports integration of power/signal cables in electronic device handles

Flash-free parting line treatment ensures smooth internal channels without burrs

We are plastic mold maker and can provide custom mold service, we can make injection molds, blow molds, rotational molds and die-casting molds.

For custom injection molds, we can provide professional custom injection molding services. Usually Plastic injection mold manufacturing Molding are manufactured using injection molding technology. The mold materials for injection molds can be chosen from P20, 718, S136, H13 and so on. The mold material reflects the mold life and product material requirements.For parts that require blow molding production, we can also provide professional custom blow molding services.

Plastic injection mold manufacturing Injection Mould making

1.We communicate product design according to samples/drawings and your requirements.

2.After the product design is confirmed, we carry out the mold design, we provide all kinds of injection molds, blow molds, silicone molds, die-casting molds services.

3.Material procurement, steel cutting and mold basic tools.

4.Mold assembly

5.Mold inspection, tracking and controlling mold processing.

6. We will inform you the date of mold trial and send you the sample inspection report and injection parameters together with the sample.

7.Your instruction and confirmation of shipment.

8.Prepare the mold before packing

Plastic injection mold manufacturing molding Specification

1. Professional manufacturer, design, production injection mould and stamping mould quality control

2. rich export experience plastic injection mould and stamping mould

3. Reasonable price of design mould

4. Cavities: single or as per your requirements cavity

5. Treatment: S45C Pretreat>25Hrc,And Nitriding

6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Moldbase :LKM available

7. Standard:DEM ,HUSKY,available

8. Hot runner: according to your demand

9. Life time: >300 Thousand Times

10. Package: Plywood case, anti-rust paint

Mold design：

Information you need to provide us

1. If you have drawings, 2D drawings, 3D drawings (preferably in STEP format).

2. If there are no drawings, you need to provide specific length, width, height and weight information. (It’s best to send us samples)

3. Should the mold be sent to your country, or leave the mold in our factory and we will help you produce the product.

4. Mold material requirements, cavity number requirements (you can tell us about the size of your injection molding machine)

5. Product material requirements and product quantity. (You can tell us about the use of the product and we can give you suggestions)

Transaction process:

Mold testing：

Once the mold is complete, I do a mold test. It usually takes about 3-5 days to complete. We need to assemble the mold, adjust the pressure data of the machine, and try production. We need to check whether there are problems during the normal production of the mold and make modifications.

Product packaging

Packaging according to your needs

1.By air ,it takes 3-7 days for delivery .The goods can be shipped by DHL ,Fedex ,UPS .

2.By sea ,the delivery time is based on your port .

To South East Asian Countries takes about 5-12 days

To Middle east countries takes about 18-25 days

To European countries takes about 20-28 days

To American countries takes about 28-35 days

To Australia takes about 10-15 days

To African countries takes about 30-35 days.

Factory

Video-1: (Factory Video)

Video-2: (Injection Molding)

Video-3: (Blow molding)

Video-4: (Blow molding)

Video-5: (Roll molding)

Customer satisfaction is our most important goal. We focus on communication and cooperation with our customers, always pay attention to their needs and provide quick response and quality customer service. Our injection production mold factory is committed to establishing long-term relationships and ensuring that our customers receive the best after-sales service during the purchase and use of our products, and we will definitely do our best to solve any problems for our customers.

FAQ

1. Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern.

Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3. What can you buy from us?

Mould,Plastic Product, Metal Product,Dental Product,CNC machining.

4. Why should you buy from us not from other suppliers?

Ningbo P&M Plastic Metal Product Co., Ltd. We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply:3d design - 3d printing - mold making - plastic injection.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6. What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Welltrained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
