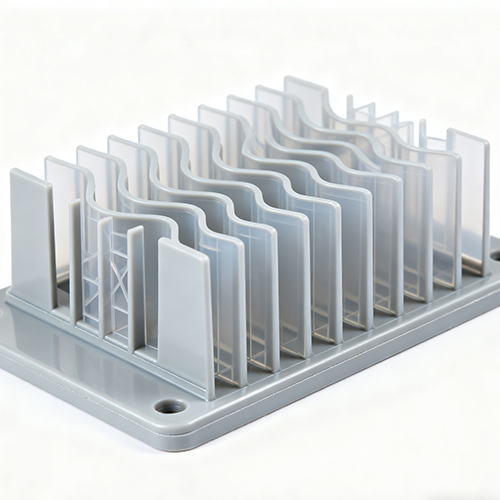

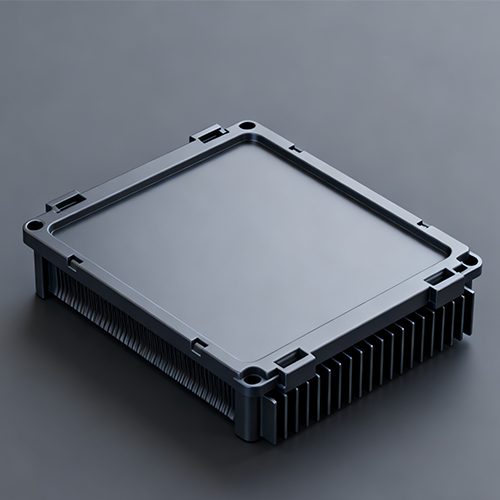

Plastic Injection Heat Sink Moulding

Plastic Injection Heat Sink Moulding is a manufacturing technology that injects molten plastic into a dedicated mold through an injection molding process, and after cooling, produces plastic components with heat dissipation functions.

Combining the advantages of plastic's light weight and low cost with heat dissipation structure design, this technology is widely used in electronic equipment, automotive electronics and other fields to solve the problem of heat accumulation in components.

P&M Plastic Injection Heat Sink Moulding Introduction

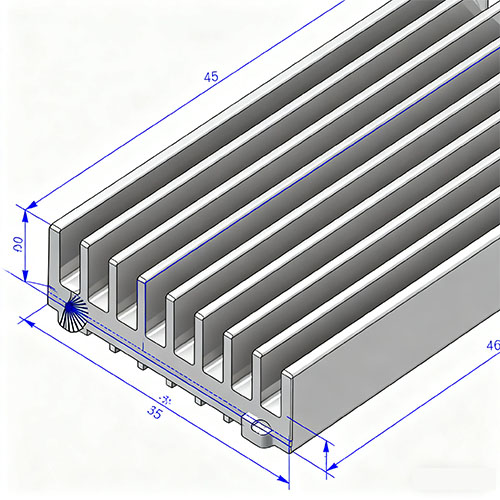

Mold Design & Manufacturing

Design the mold cavity according to the heat sink structure (such as fin density, thickness, heat dissipation channel), and use high-precision processing (such as CNC milling, EDM electrical discharge machining) to ensure mold accuracy, with tolerances usually controlled within ±0.02mm.

Raw Material Preparation

Modified plastics with thermally conductive fillers (such as graphite, aluminum powder, ceramic particles) are selected. Common substrates include PP, PA66, PPS, etc. The thermal conductivity can be increased to 10-50 W/(m·K), while ensuring the material's high temperature resistance (usually requiring long-term temperature resistance ≥120℃).

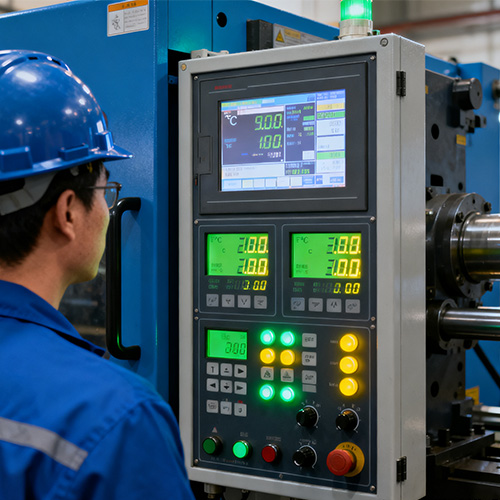

Injection Molding

Inject molten plastic into the mold cavity at high pressure (50-150MPa) and high speed (50-200mm/s), compensate for plastic shrinkage through the pressure-holding stage (holding pressure is usually 60%-80% of injection pressure), and then cool and shape (cooling time accounts for 40%-60% of the total cycle).

Post-Processing

It includes demolding, deburring (achievable by frozen trimming or laser cutting), surface treatment (such as spraying thermally conductive coating, vacuum coating), and some products need to be assembled (such as bonding with metal heat dissipation bases).

P&M Plastic Injection Heat Sink Moulding(Specification)

P&M Plastic Injection Heat Sink Moulding Feature And Application

一、Technical Advantages & Application Scenarios

1. Technical Advantages

Lightweight：The weight of plastic heat sinks is 30%-60% lighter than that of metal heat sinks of the same volume, suitable for portable electronic devices (such as laptops, drones).

Design Flexibility：It can form complex structures (such as special-shaped fins, built-in heat dissipation channels) in one step without subsequent welding or splicing.

Cost Advantage：The mold has a long service life (up to 1 million cycles or more), high mass production efficiency, and the unit product cost is 20%-40% lower than metal processing.

2. Application Scenarios

Consumer Electronics：

Heat dissipation modules for routers, set-top boxes, and LED lamps.

Automotive Electronics：

Heat dissipation components for in-vehicle navigation, ADAS systems, and battery management systems (BMS).

Industrial Equipment：

Heat dissipation structures for frequency converters, sensors, and charging piles.

二、Quality Control Points

Heat Dissipation Performance Testing：

Measure the surface temperature distribution of the heat sink with a thermal imager to ensure that the component temperature does not exceed the safety threshold under rated power (for example, IC chips usually require ≤85℃).

Dimensional Accuracy Testing：

Use a coordinate measuring machine to detect key dimensions (such as fin spacing, height) to ensure compliance with design tolerances.

Appearance Defect Testing：

Use a visual inspection system to check for defects such as material shortage, bubbles, and burrs, with a pass rate of over 99.5%.

Customization Process

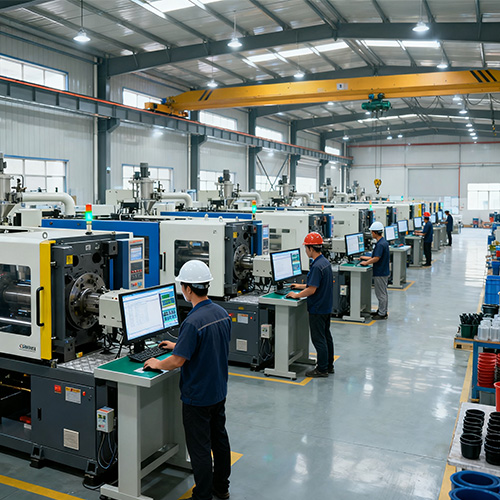

Factory&About US
