Plastic Injection Table Fan Moulding

Plastic Injection Table Fan Moulding refers to a manufacturing technology that produces core plastic components of table fans (such as fan blades, mesh frame, body shell, base, and control panel) through plastic injection molding processes. Its core feature is realizing lightweight structural molding of components, safety protection design and functional adaptability according to the usage characteristics of table fans, including ventilation and heat dissipation, safety protection, and multi-scenario placement. Compared with traditional metal components (heavy weight, easy to rust, high cost), plastic injection components reduce the overall weight of table fans by 40%-60%. At the same time, they have the advantages of flexible design (capable of forming special-shaped fan blades and colorful shells) and controllable cost (plastic components account for 75%-85%). They are widely used in home bedrooms, offices, studies, small shops and other scenarios, and are key manufacturing technologies for realizing portability, aesthetics and low-cost mass production of table fans.

P&M Plastic Injection Table Fan Moulding Introduction

1 Core Characteristics of Plastic Injection Table Fan Moulding

1. Balancing Lightweight and Structural Stability

The table fan should be easy to move and stable to place, and the plastic components should ensure structural strength on the basis of lightweight:

Lightweight design of fan blades: PP or ABS thin-walled injection is used, with a single fan blade weight of ≤ 20g. The centrifugal force is small during rotation, reducing motor load; The edges of the fan blades are rounded to avoid generating airflow noise during rotation;

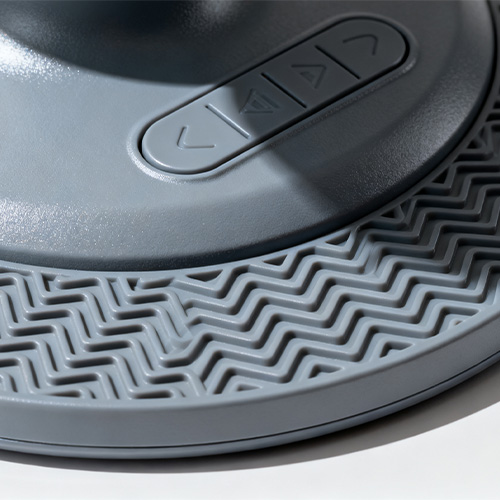

Stable structure of the base: The base adopts a "thin top and thick bottom" design, with a wall thickness of 2-2.5mm at the connection between the upper part and the fuselage, and a wall thickness of 4-5mm in the lower counterweight area, achieving static stability standards; The bottom of the base is injection molded with anti slip foot pads to prevent the table fan from sliding during operation;

Body shell strength: The body shell is made of ABS+10% GF, with an impact resistance strength of ≥ 25kJ/m ², and can withstand a drop from a height of 1m without rupture; The installation position of the shell motor is designed with reinforcement ribs to disperse the vibration stress of the motor and extend its service life.

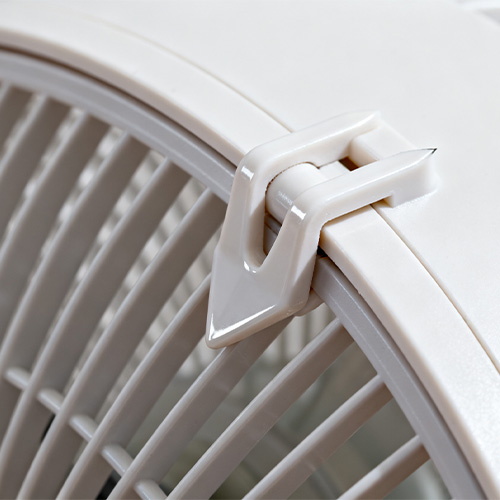

2. Adapting Safety Protection and Ventilation Efficiency

The platform fan needs to ensure ventilation and heat dissipation while ensuring user safety, and the design of plastic components needs to balance the two.

3. Weather Resistance and Scenario Adaptability

The desk fan needs to adapt to different usage environments (such as damp bedrooms and dry offices), and the plastic components need to have targeted weather resistance.

II Production Process of Plastic Injection Table Fan Moulding

1.Product Design and Mold Development

(1) Product Design

Structural design: Draw a 3D model using CAD software, with a focus on designing the fan blade profile curve, mesh size of the mesh frame, and thickness of the base counterweight area; Annotate key dimensional tolerances;

(2) Mold development

Mold material: H13 hot work mold steel (with good wear resistance and a lifespan of ≥ 500000 times) is selected for the fan blades and body shell molds; The mesh frame mold is made of P20 pre hardened steel (suitable for PP+GF injection molding, with moderate cost);

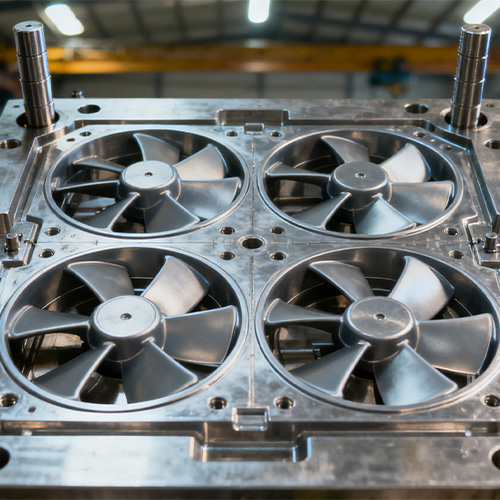

Mold cavity design: Multiple mold cavities are used, with symmetrical layout to ensure uniform filling; For complex blade profiles, 3D scanning reverse modeling technology is adopted to ensure that the deviation between the cavity and the design model is ≤ 0.02mm;

2. Raw Material Preparation and Injection Molding

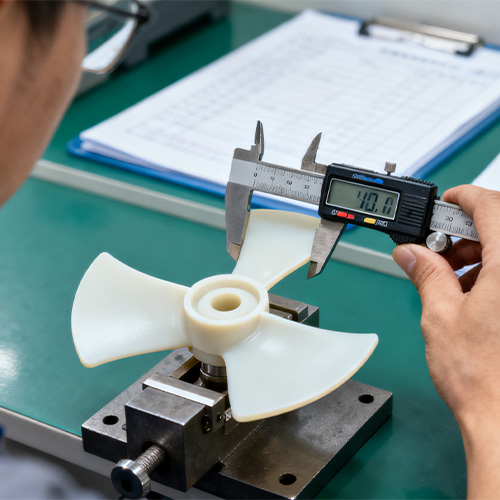

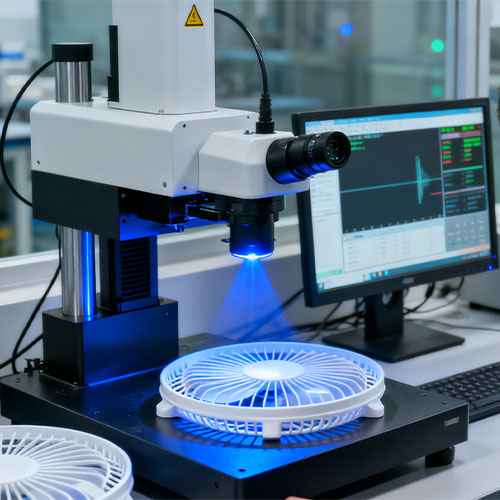

3. Post-Processing and Quality Inspection

P&M Plastic Injection Table Fan Moulding(Specification)

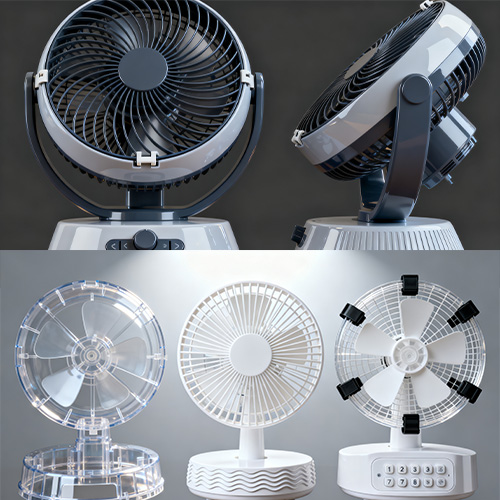

P&M Plastic Injection Table Fan Moulding Feature And Application

1. Home Bedroom Scenario

Core Requirements: Quiet, lightweight, beautiful appearance, adapting to the narrow space and sleeping environment of the bedroom.

2.Office Scenario

Core requirements: Simple and practical, multifunctional integration, suitable for office desktop placement, balancing office efficiency and space utilization.

3. Small Shop Scenario

Core requirements: high air volume, strong weather resistance, suitable for open environments of shops (such as convenience stores and fruit shops), requiring long-term continuous operation.

4. Outdoor Leisure Scenario

Core requirements: Waterproof and dustproof, portable and easy to store, suitable for outdoor scenes such as courtyards and camping, and able to withstand slight wind and rain.

Customization Process

Factory&About US

NingBo Plastic Metal Product Co.,Ltd (P&M) is located in Yuyao, the so-called Mould City, Plastic Kingdom, in the southern tip of Hangzhou Bay Bridge,north of Shanghai, the east of Ningbo Port,tight double line of State Road 329 on land, sea and air trafic into a network to facilitate transport.

By the abundant technical strength,scientific management methods and good after-sales service, product deeply trusted and welcomed by customers from all over the world. P&M holds improved system of development and production, to achieve mold design, plastic products manufacturing and automatic production. Our main products is design and manufacturing of plastic mold, plastic product, metal product. 90% products of our enterprise are exported to America, Europe, Germany, Japan, Australia, etc. For many years, the company has been committed to the research of raw materials. The company has its own trademark and dozens of patents, providing more convenient technical support for mold making and product production. P&M started domestic business from 2008,named Shundi Mould Factory. And opened the international market from 2014. We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

P&M adheres to market-oriented to the quanlity of life and focus on quality service and continuous development of new products,determined to establish a better corporate image,and our friends at home and abroad to carry a wide range of business exchanges and cooperation, create brilliant.

Packing

Packaging according to your needs

1. By air ,it takes 3-7 days for delivery.

The goods can be shipped by DHL , Fedex , UPS .

2. By sea ,the delivery time is based on your port.

To South East Asian Countries takes about 5-12 days.

To Middle east countries takes about 18-25 days.

To European countries takes about 20-28 days.

To American countries takes about 28-35 days.

To Australia takes about 10-15 days.

To African countries takes about 30-35 days.

P&M Bike parts, centered around children, balances safety, health, and fun, aiming to add a bright color to children's beautiful childhood. We look forward to working together with you to serve our children.

The path of a child's growth is paved with bricks and tiles.
