Plastic Office Chair Injection Moulding

Plastic Office Chair Injection Moulding refers to an office chair assembled by producing core structural parts such as seat pans, backrests, armrests, and five-star bases through plastic injection molding processes, combined with metal brackets, gas lifts, casters and other components. Its core feature is using the injection molding process to realize the integrated molding of large structural parts (such as the curved surfaces of seat pans and backrests). Key parts have high load-bearing capacity , fatigue resistance and ergonomic adaptability. Compared with traditional wooden office chairs or all-metal office chairs , plastic injection office chairs have the advantages of lightweight , controllable cost , and flexible design. They are widely used in office buildings, corporate offices, home offices, education and training scenarios, adapting to long-term office use needs of more than 8 hours.

P&M Plastic Office Chair Injection Moulding Introduction

1 Core Characteristics of Plastic Office Chair Injection Moulding

1. Integrated Molding of Large Structural Parts, Balancing Strength and Stability

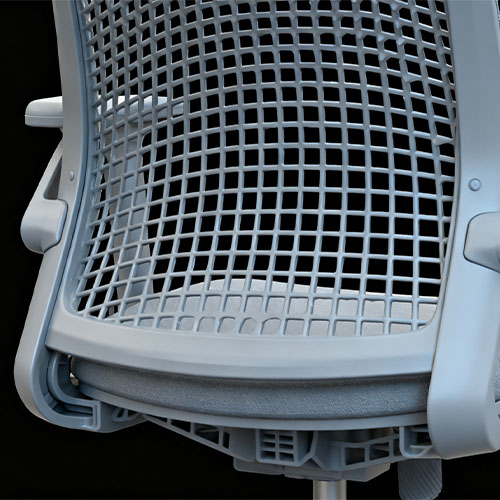

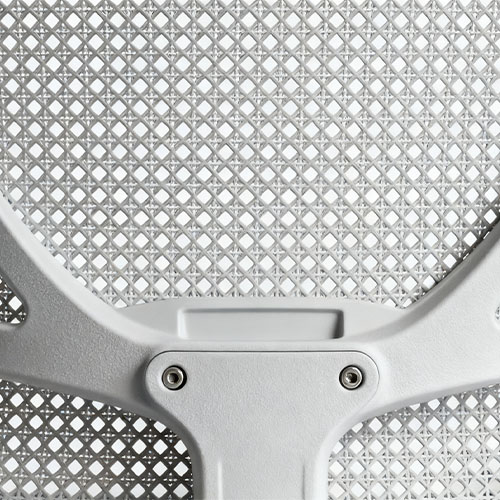

Integrated/Split Design of Seat Pan and Backrest: Ergonomic office chairs adopt split injection molding of seat pans and backrests, and the two are assembled through metal connectors ;  simple models adopt integrated injection molding , and reinforcing ribs are made at the transition between backrest and seat pan, with flexural strength ≥80MPa;

High Load-Bearing Structure of Five-Star Base: The five-star base adopts a radial reinforcing rib design , and the injection material uses glass fiber reinforced PP or PA66 with static load-bearing ≥500kg, dynamic load-bearing ;

Uniform Wall Thickness and Stress Dispersion: The wall thickness of large parts is controlled at 2.5-4mm , and a gradual wall thickness design is adopted ;  key stress-bearing parts are rounded to disperse stress and avoid fracture risks.

2. Precise Ergonomic Adaptation, Improving Long-Term Office Comfort

In response to the fatigue problem of long-term office work, plastic injection molded parts are optimized ergonomically through structural design

3. Targeted Material Selection, Adapting to Diverse Usage Environments

The material performance requirements vary greatly in different office scenarios, and precise matching is required during injection molding

General office scenarios (office buildings, enterprises): ABS/PC alloy is used for chair seats and backrests, with a matte surface treatment that is resistant to dirt and easy to clean;

Wet environment (during the southern rainy season, near the pantry): Fiberglass reinforced PA66 (with a water absorption rate of ≤ 1.5% and better moisture resistance than PP) is used for five-star feet and handrails to avoid strength degradation caused by long-term humidity;

High frequency usage scenarios (call centers, training institutions): Adding anti fatigue agents to chair seats and backrests to improve material creep resistance and extend service life.

II Production Process of Plastic Office Chair Injection Moulding

1. Product Design and Mold Development

(1) Product Design

Structural design: Draw a 1:1 3D model of the office chair using CAD software, with a focus on designing parameters for the "S" curve of the chair back, layout of hollow holes in the chair seat, and distribution of five starred foot reinforcement ribs; Annotate key dimensional tolerances

(2) Mold development

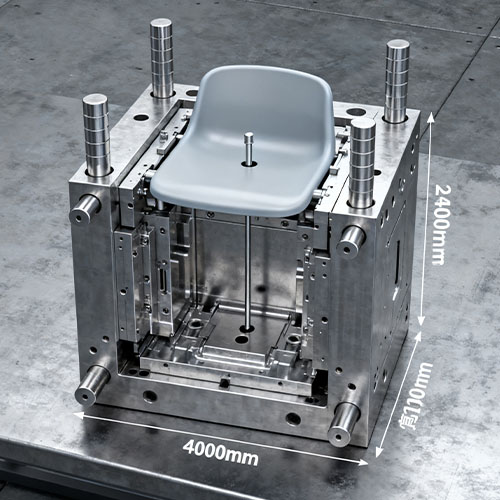

Mold material: H13 hot work mold steel is used for large components such as chair seats and backrests; The five-star foot mold is made of NAK80 pre hardened steel due to high stress;

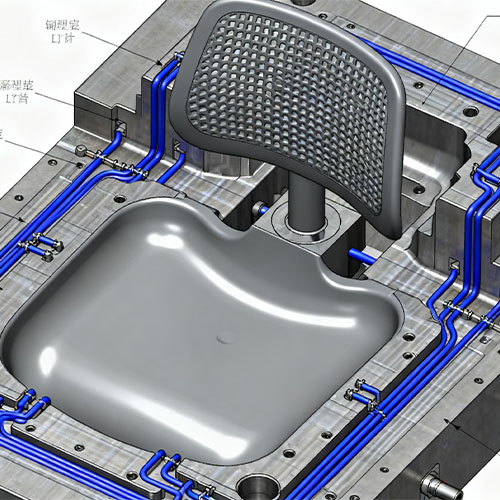

Mold cavity design: using single or double cavity molds (chair seat mold 1 mold 1 cavity, five-star foot mold 1 mold 2 cavities); For hollow structures, the mold is equipped with a core pulling mechanism to ensure complete hole formation;

2. Raw Material Preparation and Injection Molding

(1) Raw material pretreatment

(2) Injection molding

3. Assembly and Quality Inspection

P&M Plastic Office Chair Injection Moulding(Specification)

P&M Plastic Office Chair Injection Moulding Feature And Application

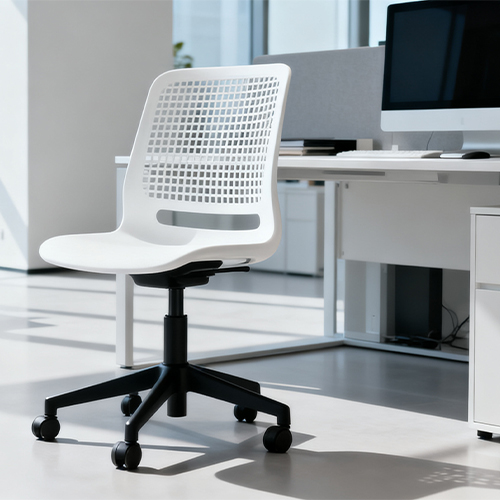

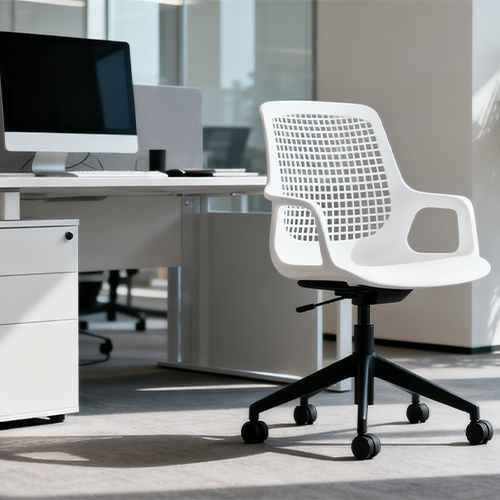

1. Corporate Office Scenario

Core Requirements: Simple and beautiful, strong durability, adapting to multi-person office environments, and compatible with various uses such as meetings and daily office work.

Product Features:

Plastic parts use ABS/PC alloy (scratch-resistant, easy to clean), and colors are mainly black and gray (adapting to office decoration styles);

The backrest adopts a simple flat design (with basic lumbar support), and the seat pan has no hollowing (to avoid document falling), with an overall weight of 25-30kg, easy to move;

The five-star base uses PA66+25%GF (load-bearing 500kg), and the casters are made of silent rubber (sliding noise ≤30dB) to avoid affecting the office environment;

Supports 3-level backrest reclining adjustment (100°, 115°, 130°), adapting to office sitting posture and short rest needs.

2. Home Office Scenario

Core requirements: high comfort, personalized appearance, space saving, suitable for small apartments and home decoration styles.

Product features:

The plastic components are made of PP+TPR composite material, and the chair straps have a hollow and breathable structure;

Chair seat width 450-500mm, foldable design, easy to store when not in use;

The armrest is detachable, and integrated functions such as cup holders and file bags are added (through injection molding) to enhance the convenience of working from home;

The overall weight is 20-25kg, and women can easily move around, suitable for use in different rooms of the home.

3. High-Frequency Usage Scenario

Core requirements: High durability, fatigue resistance, easy maintenance, suitable for scenarios such as call centers, training institutions, internet cafes, etc. that require more than 10 hours of daily use.

Product features:

Plastic components are made of glass fiber reinforced PA66 and ABS/PC alloy, with the addition of anti creep agents. After 100000 fatigue tests, the deformation rate is ≤ 3%
