Plastic retainer mold

We specialize in custom plastic retainer mold development, plastic retainer component production, and optional assembly services—not finished product trading. Our molds are engineered to match plastic retainers’ unique needs (e.g., secure part positioning, anti-displacement performance, compatibility with mating components) , with tailored designs, durable material compatibility, and optimized injection molding to deliver reliable plastic retainer parts for electronics, automotive, home appliances, and industrial equipment.

1. Custom Mold Structures: Tailored to Plastic Retainer Requirements

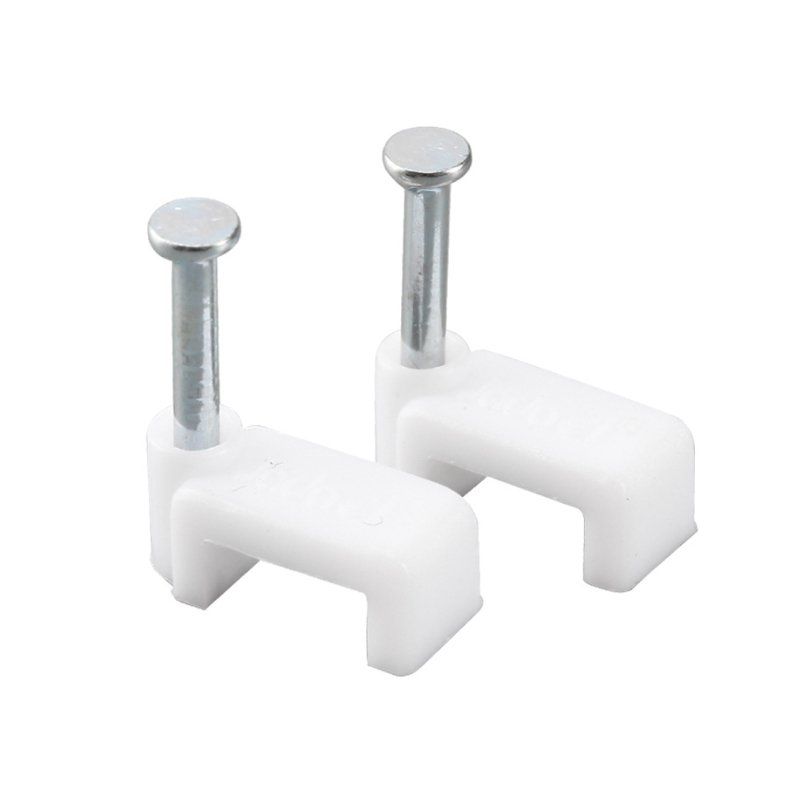

Plastic retainers (e.g., electronic component retainers, automotive wire retainers, appliance part fasteners) demand precise fitting with target parts, structural stability to resist displacement, and often compact designs for tight spaces—our mold structures are customized to address these key demands:

Cavity & Core: Machined via high-precision CNC machining (tolerance as tight as ±0.01mm) to replicate critical features:

Fitting precision (e.g., snap-fit jaws with inner diameter tolerance ±0.008mm, slot widths for part insertion with tolerance ±0.01mm) to ensure snug, non-loose positioning of target parts (e.g., circuit boards, wires, small mechanical components).

Anti-displacement structures (e.g., barb-like protrusions with height 0.2–0.5mm, friction-enhancing ribs on inner surfaces) to prevent the retained part from slipping or falling out during use.

Compact geometry optimization (wall thickness 0.6–2mm, minimal material waste) to fit tight installation spaces (e.g., automotive door panels, electronic device casings).

Mounting compatibility (e.g., screw holes with thread tolerance ±0.01mm, adhesive pads for no-drill installation) to simplify integration into larger assemblies.

Gating System: Designed to avoid weakening fitting zones and visible defects:

Micro pin gates (0.3–0.6mm diameter, positioned at non-fitting, non-visible areas) for small retainers (e.g., electronic connector retainers)—minimizes gate marks that could interfere with part fitting, a critical risk for precision snap-fit retainers.

Hot runner systems (for large or multi-cavity retainers, e.g., bulk automotive wire retainers) to maintain consistent melt temperature—reduces material waste by 15–20% and ensures uniform wall thickness (critical for maintaining snap-fit elasticity and fitting accuracy).

Cooling System: Optimized for retainers’ compact, thin-walled structures:

Micro cooling channels (diameter 1–2mm, spaced 5–8mm apart) to ensure rapid, even heat dissipation—prevents warping of thin-walled fitting zones (which would ruin part compatibility) and reduces cycle time by 30–40%.

Targeted cooling for anti-displacement features (e.g., barbs, ribs) to avoid shrinkage—prevents deformation of small protrusions, which are key to anti-slip performance.

Ejection System: Calibrated to protect fitting precision and small structures:

Ultra-thin ejector pins (diameter 0.5–1mm, arranged at non-fitting areas) to avoid damaging delicate anti-displacement features (e.g., tiny barbs)—ensures the retainer’s positioning function isn’t compromised.

Vacuum ejection (for micro-sized retainers ≤5mm) to gently release parts without applying pressure—prevents bending of thin walls or breakage of small structural elements.

2. Suitable Plastic Materials: Matched to Plastic Retainer Applications

Plastic retainers face mechanical stress (from retained parts), environmental exposure (temperature changes, moisture), and long-term wear—we select materials based on fitting stability, durability, and use scenarios:

PP (Polypropylene): Ideal for general-purpose retainers (e.g., home appliance wire retainers, light-duty part fasteners). Offers good flexibility (supports repeated snap-fit use), chemical resistance (to water, mild detergents), and cost-effectiveness—suitable for low-stress, indoor scenarios (retained part weight ≤500g).

ABS (Acrylonitrile Butadiene Styrene): Used for precision electronic retainers (e.g., circuit board retainers, connector fasteners). Boasts high dimensional stability (shrinkage 1.5–2.5%), good rigidity (Shore D 75–80), and compatibility with electronic assembly processes—ensures consistent fitting with delicate components, ideal for indoor electronic devices.

PA66 (Polyamide 66): Perfect for high-stress retainers (e.g., automotive engine bay retainers, industrial equipment part fasteners). Features high tensile strength (up to 70 MPa) and heat resistance (up to 120°C)—supports retained part weight ≤2kg and withstands harsh environments (e.g., engine heat, industrial dust), suitable for automotive and industrial use.

TPU (Thermoplastic Polyurethane): Great for flexible, shock-absorbing retainers (e.g., electronic component anti-vibration retainers, wire harness retainers). Provides high elasticity (Shore A 50–70) to absorb vibrations and prevent part damage—gentle on delicate retained parts (e.g., sensors) while maintaining secure positioning.

POM (Polyoxymethylene): Suitable for precision-fitting, low-friction retainers (e.g., sliding part retainers, mechanical component guides). Offers high dimensional accuracy (tolerance ±0.005mm) and low friction coefficient (0.15–0.3)—ensures smooth insertion/removal of retained parts (when needed) and long-term fitting stability, ideal for mechanical assemblies.

3. Injection Molding Process: Optimized for Plastic Retainer Quality

Our injection molding process is fine-tuned to meet plastic retainers’ fitting precision, stability, and compact design demands, with key advantages:

Fitting Precision Guarantee:

Injection parameters (temperature 180–260°C, pressure 50–90 MPa) optimized to enhance material uniformity—no internal voids in fitting zones, ensuring each retainer meets tight tolerance requirements (variation ≤0.01mm for critical dimensions), avoiding part misalignment.

Post-molding optical inspection (via high-resolution scanners) to verify fitting dimensions—defect rate for precision retainers kept below 0.2%, critical for ensuring compatibility with mating components.

Anti-Displacement Performance:

Tensile and shear testing of anti-displacement features (e.g., barbs, ribs)—ensures they withstand minimum 2x the weight of the retained part without deformation, preventing accidental part

Environmental aging tests (temperature cycling -40°C to 85°C, humidity 95%) for automotive/industrial retainers—confirms long-term stability, no loss of fitting performance after 1,000+ hours of exposure.

Efficient Production:

Multi-cavity molds (64–128 cavities for micro-retainers, e.g., electronic wire clips) maximize output—daily production reaches 100,000–200,000 components, meeting high-volume demands for automotive or electronics industries.

Automated sorting and quality checks—reduces labor costs and ensures only retainers with fitting precision enter the next process.

Cost Optimization:

Hot runner systems reduce material waste—especially for high-cost materials like PA66 or TPU, cutting per-unit cost by 12–18% for large orders (100,000+ retainers).

Integrated molding of anti-displacement and mounting features—eliminates post-processing (e.g., secondary drilling of holes), reducing production time and costs.

4. Our Services: Beyond Molds—Plastic Retainers & Assembly

We provide end-to-end solutions for plastic retainer production, not just molds:

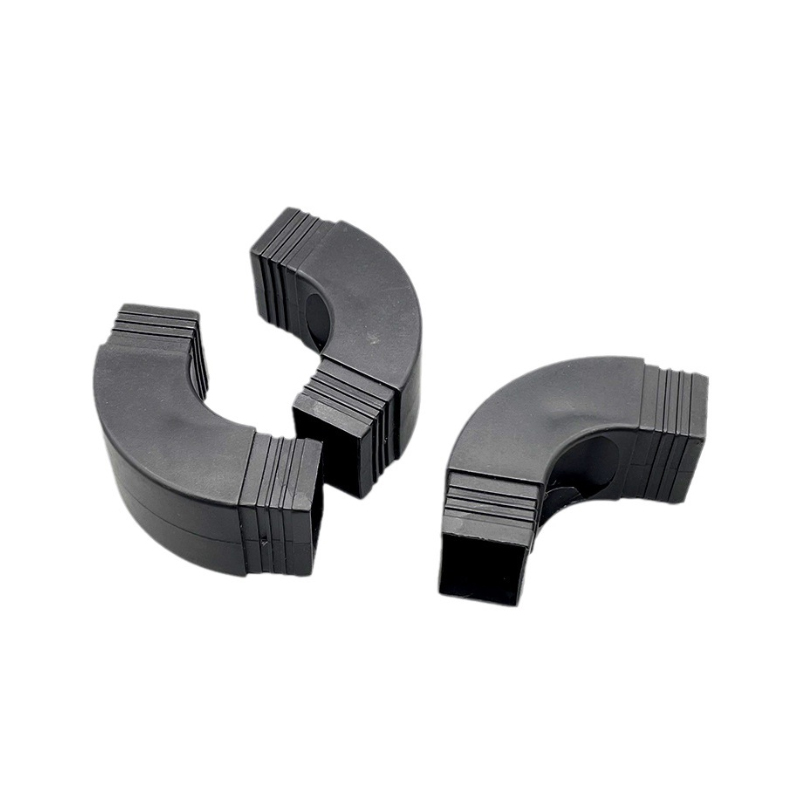

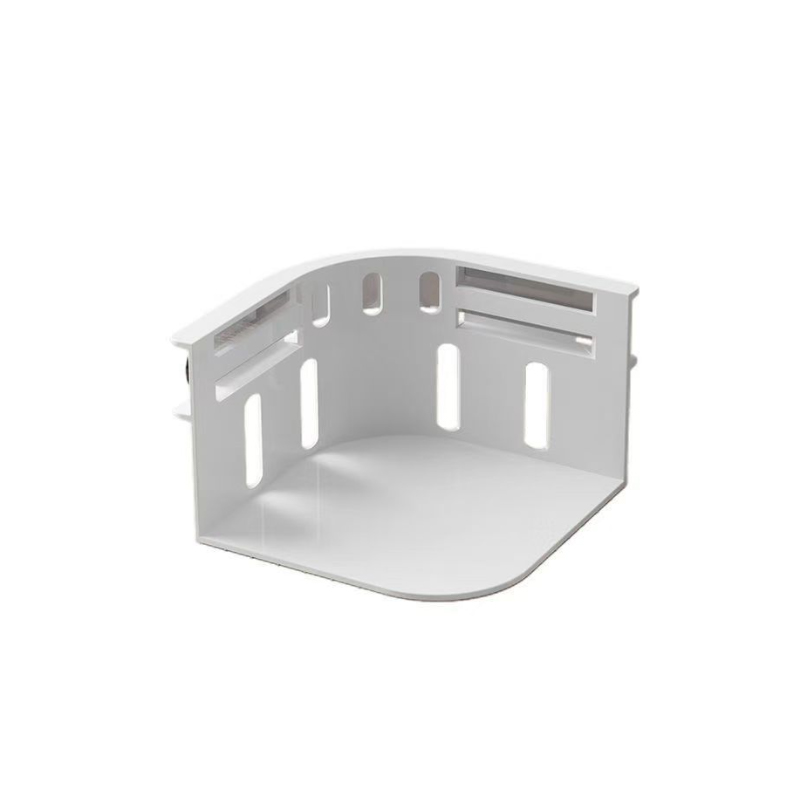

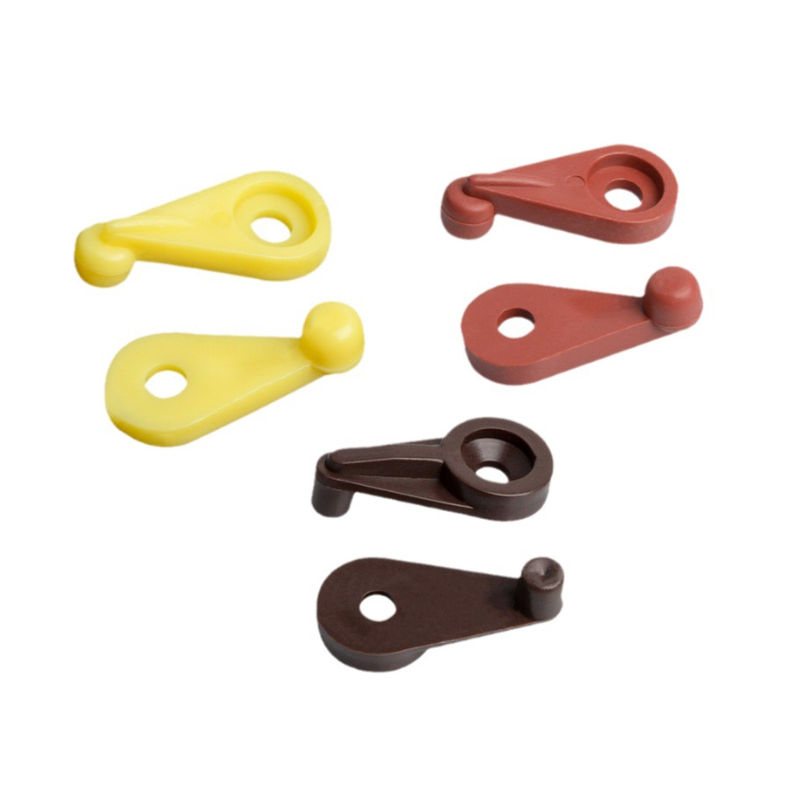

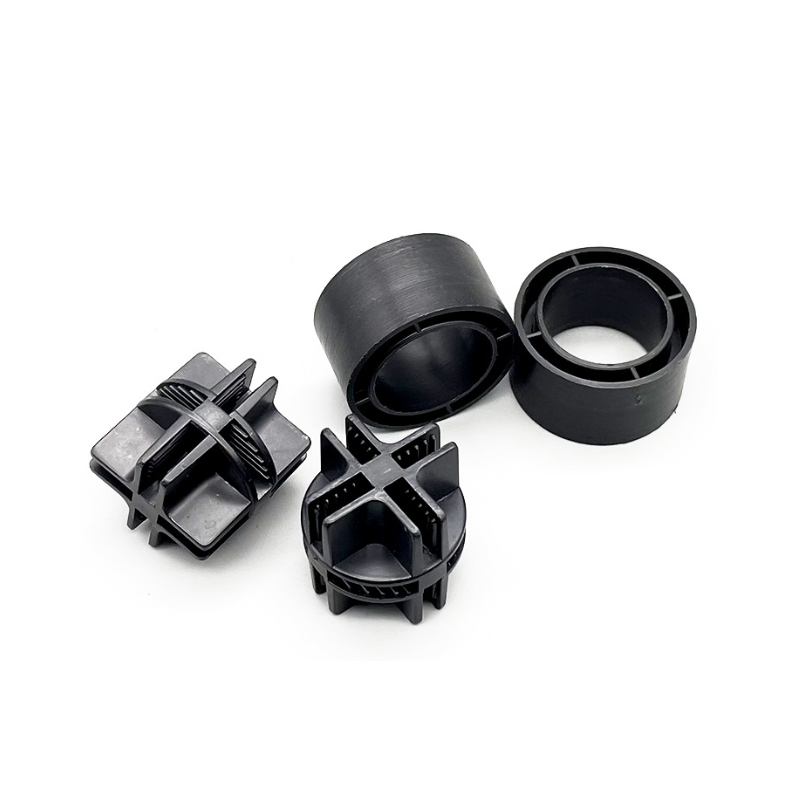

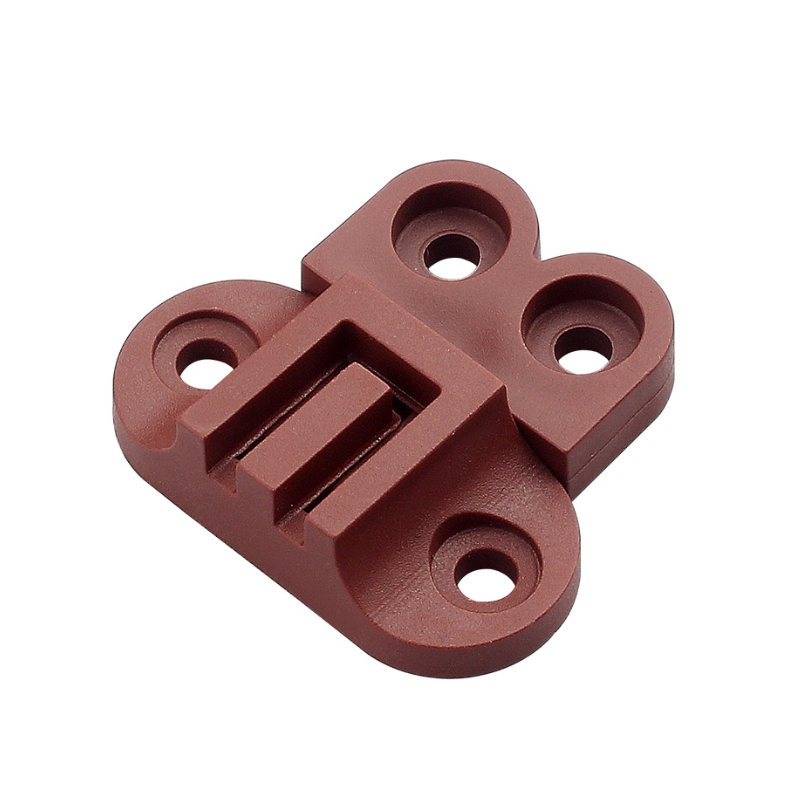

Plastic Retainer Manufacturing: Produce custom retainers in various sizes (3×3mm to 50×30mm), designs (snap-fit, slot-type, clamp-type), and fitting specifications (customized to your target part dimensions). Supports custom colors (RAL/Pantone codes) and surface treatments (anti-static coating for electronics, UV-resistant coating for outdoor use).

Value-Added Assembly: Optional assembly services for retainer sub-assemblies—e.g., attaching adhesive tapes (for quick mounting), assembling retainer sets with mating parts (e.g., wire retainers + cable ties), or integrating foam pads (for anti-vibration). Delivers ready-to-install sub-assemblies, saving your production time.

Custom Design Support: Offer 3D mold design and rapid prototyping (via injection molding or CNC machining). We can produce 50–100 prototype retainers in 2–3 days for you to test fitting precision, anti-displacement performance, and mounting compatibility—optimizing the mold design before mass production.

We are plastic mold maker and can provide custom mold service, we can make injection molds, blow molds, rotational molds and die-casting molds.

For custom injection molds, we can provide professional custom injection molding services. Usually Plastic injection mold manufacturing Molding are manufactured using injection molding technology. The mold materials for injection molds can be chosen from P20, 718, S136, H13 and so on. The mold material reflects the mold life and product material requirements.

For parts that require blow molding production, we can also provide professional custom blow molding services.

Plastic injection mold manufacturing Injection Mould making

1.We communicate product design according to samples/drawings and your requirements.

2.After the product design is confirmed, we carry out the mold design, we provide all kinds of injection molds, blow molds, silicone molds, die-casting molds services.

3.Material procurement, steel cutting and mold basic tools.

4.Mold assembly

5.Mold inspection, tracking and controlling mold processing.

6. We will inform you the date of mold trial and send you the sample inspection report and injection parameters together with the sample.

7.Your instruction and confirmation of shipment.

8.Prepare the mold before packing.

Plastic injection mold manufacturing molding Specification

1. Professional manufacturer, design, production injection mould and stamping mould quality control

2. rich export experience plastic injection mould and stamping mould

3. Reasonable price of design mould

4. Cavities: single or as per your requirements cavity

5. Treatment: S45C Pretreat>25Hrc,And Nitriding

6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Moldbase :LKM available

7. Standard:DEM ,HUSKY,available

8. Hot runner: according to your demand

9. Life time: >300 Thousand Times

10. Package: Plywood case, anti-rust paint

Mold design：

Information you need to provide us

1. If you have drawings, 2D drawings, 3D drawings (preferably in STEP format).

2. If there are no drawings, you need to provide specific length, width, height and weight information. (It’s best to send us samples)

3. Should the mold be sent to your country, or leave the mold in our factory and we will help you produce the product.

4. Mold material requirements, cavity number requirements (you can tell us about the size of your injection molding machine)

5. Product material requirements and product quantity. (You can tell us about the use of the product and we can give you suggestions)

Transaction process:

Mold testing：

Once the mold is complete, I do a mold test. It usually takes about 3-5 days to complete. We need to assemble the mold, adjust the pressure data of the machine, and try production. We need to check whether there are problems during the normal production of the mold and make modifications.

Product packaging

Packaging according to your needs

1.By air ,it takes 3-7 days for delivery .The goods can be shipped by DHL ,Fedex ,UPS .

2.By sea ,the delivery time is based on your port .

To South East Asian Countries takes about 5-12 days

To Middle east countries takes about 18-25 days

To European countries takes about 20-28 days

To American countries takes about 28-35 days

To Australia takes about 10-15 days

To African countries takes about 30-35 days.

Factory

Video-1: (Factory Video)

Video-2: (Injection Molding)

Video-3: (Blow molding)

Video-4: (Blow molding)

Video-5: (Roll molding)

Customer satisfaction is our most important goal. We focus on communication and cooperation with our customers, always pay attention to their needs and provide quick response and quality customer service. Our injection production mold factory is committed to establishing long-term relationships and ensuring that our customers receive the best after-sales service during the purchase and use of our products, and we will definitely do our best to solve any problems for our customers.

FAQ

1. Who are we?

We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Southern Europe(10.00%),Northern.

Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3. What can you buy from us?

Mould,Plastic Product, Metal Product,Dental Product,CNC machining.

4. Why should you buy from us not from other suppliers?

Ningbo P&M Plastic Metal Product Co., Ltd. We main do all kinds of 3d design, 3d printing and plastic metal molds tooling and products. We have our own engineer and factory. One-stop supply:3d design - 3d printing - mold making - plastic injection.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian.

6. What are the characteristics of your service?

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Welltrained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality.
