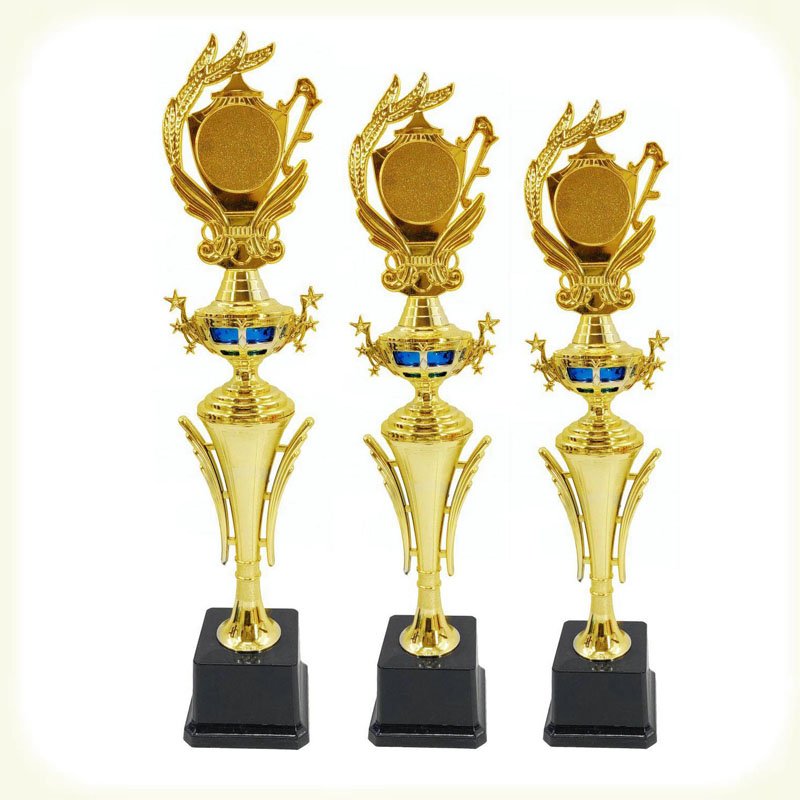

Plastic trophy parts moulding

In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized plastic trophy parts moulding products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For plastic trophy parts moulding products, we can make corresponding plastic parts, which is mainly done through injection molds.

The injection molding of plastic trophy parts requires comprehensive consideration of multiple factors, including material selection, mold design, process parameter control, and quality inspection. The following is a summary of key points:

1. Material Selection

Plastic trophies are commonly made of thermoplastics (such as ABS, PS, and PP). The appropriate material should be selected based on the intended use (decoration, collection, durability, etc.). Consider the material's physical properties (strength, temperature resistance), surface characteristics (gloss, ease of processing), and shrinkage (which affects dimensional accuracy). For example, decorative trophies require high-gloss materials (such as ABS), while shatter-resistant trophies can choose PP.

2. Mold Design (Core Step)

Trophy designs often have complex structures (such as three-dimensional shapes, parting lines, and decorative patterns). Mold design focuses on the following key points:

Design Dimensions and Specific Requirements

Parting surface design: Avoid complex shapes and set parting lines appropriately to prevent flash and infill. Planar or beveled parting surfaces are preferred. Cavity Structure: Complex curved surfaces require optimized wall thickness (generally 3-8mm). Cooling channels should be added to thick-walled areas to prevent shrinkage cavities. Ribs should be designed to avoid stress concentration.

Gating and Ejector System: Gates should be positioned away from decorative patterns, using side gates or point gates. Ejector pins or pins should be evenly distributed to prevent deformation.

Mold Material: Steel molds are preferred for large-scale production (durability, with a lifespan exceeding one million cycles); aluminum molds are suitable for small-scale production (low cost, but with consideration for wear).

Surface Treatment: High-gloss polishing or electroplating are required after molding to avoid defects such as burrs and sink marks (especially for transparent materials).

III. Process Parameter Control

Rational process parameters are key to ensuring trophy quality and production efficiency:

Parameter Type Setting Points

Barrel Temperature: Adjust according to the material (e.g., ABS is typically 210-250°C, PS 240-280°C), taking into account both melt uniformity and material properties. Injection Pressure and Speed: Complex cavities require higher injection pressure (50-120 MPa) to ensure complete mold filling; speed adjustment should be made in steps (slow injection for filling, fast injection for holding pressure).

Dwelling Time: Sufficient holding time is required (typically 10-30 seconds) to prevent shrinkage or sinking caused by cooling shrinkage.

Cooling Time: Thick-walled areas require longer cooling times (30-60 seconds), while thin-walled areas require shorter cooling times (15-30 seconds) to avoid deformation due to large temperature differences between the inside and outside.

IV. Precautions During the Molding Process

Drying: Hygroscopic materials (such as PA) require pre-drying (at 80-100°C for 2-4 hours) to prevent moisture-induced pores.

Mold Preheating: Increasing the mold temperature (50-80°C) can reduce material sticking and improve surface quality.

Production Batch Adaptation: Large-scale production requires steel molds and automated equipment (such as robotic part handling); small-scale production can use aluminum molds with manual assistance. Cycle Optimization: Use a hot runner system to minimize weld marks and reduce waste; regularly clean the screw to prevent material residue.

V. Quality Inspection and Post-Processing

Defect Detection: Focus on inspecting for issues such as short spots (incomplete injection), bubbles (air inclusion), and warpage (uneven cooling). (This can be detected using illumination or a coordinate measuring machine).

Dimension Calibration: Adjust mold dimensions based on material shrinkage (typically 0.5%-2%) to ensure the final trophy meets design requirements.

Post-Processing: After molding, gates must be cut, burrs removed, and the surface polished (e.g., mirror finish). Electroplating or spraying can be used to enhance the appearance if necessary.

We are a plastic trophy parts moulding manufacturer, providing high-quality plastic trophy parts moulding manufacturing. As long as you want to customize/develop plastic trophy parts moulding products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
