Vacuum Cleaner Plastic Injection Moulding

Vacuum Cleaner Plastic Injection Moulding refers to a manufacturing technology that produces core plastic components of vacuum cleaners (such as body shells, dust cups, suction nozzles, hose connectors, and roller brackets) through plastic injection molding processes. Its core feature is realizing high-strength structural molding of components, sealed leak-proof design and functional adaptability (such as wear resistance of suction nozzles, transparent visibility of dust cups) according to the usage characteristics of vacuum cleaners, including high-frequency vibration, negative pressure dust suction, and multi-scenario cleaning. Compared with traditional metal components (heavy weight, easy to rust), plastic injection components reduce the overall weight of vacuum cleaners by 30%-50% . At the same time, they have the advantages of flexible design and controllable cost (plastic components account for 70%-80%). They are widely used in various vacuum cleaners such as handheld, horizontal, vertical, and wireless intelligent models, and are key manufacturing technologies for realizing lightweight, portable, and multi-functional vacuum cleaners.

P&M Vacuum Cleaner Plastic Injection Moulding Introduction

1 Core Characteristics of Vacuum Cleaner Plastic Injection Moulding

1. High Structural Strength and Impact Resistance

Vacuum cleaners often face collisions and vibrations during use, and plastic components need to have excellent mechanical properties:

Body shell strength: Made of fiberglass reinforced PP or ABS, with an impact strength of ≥ 30kJ/m ², it can withstand a drop from a height of 1.2m to a cement floor without breaking (far exceeding the 15kJ/m ² of ordinary plastics); Design reinforcement ribs for key parts of the shell to disperse vibration stress and avoid cracking caused by long-term vibration;

Wear resistant design of suction nozzle: Wear resistant rubber or TPU is injected into the contact area between the bottom of the suction nozzle and the ground, and integrated with the plastic body through dual color injection molding, which improves the wear resistance by 3-5 times and is suitable for different floor materials such as flooring and carpets;

Roller bracket load-bearing: The roller bracket is made of PA66+30% GF

2. Sealed Leak-Proof and Negative Pressure Adaptation

Vacuum cleaners rely on negative pressure to achieve suction function, and the sealing performance of plastic components directly affects suction efficiency:

Suction nozzle airflow channel: The internal airflow channel of the suction nozzle adopts a streamlined design, with a polished surface to reduce airflow resistance. At the same time, there are no splicing gaps at the channel connection to avoid air leakage and reduce suction efficiency.

3. Function Integration and Scenario Adaptation

The demand for different types of vacuum cleaners (handheld, horizontal, intelligent) varies greatly, and plastic injection molded parts need to be designed accordingly.

II Production Process of Vacuum Cleaner Plastic Injection Moulding

1. Product Design and Mold Development

(1) Product Design

Structural design: Draw a 3D model using CAD software, with a focus on designing the wall thickness distribution of the body shell, the size of the dust cup sealing groove, and the airflow channel curve of the suction nozzle; Annotate key dimensional tolerances

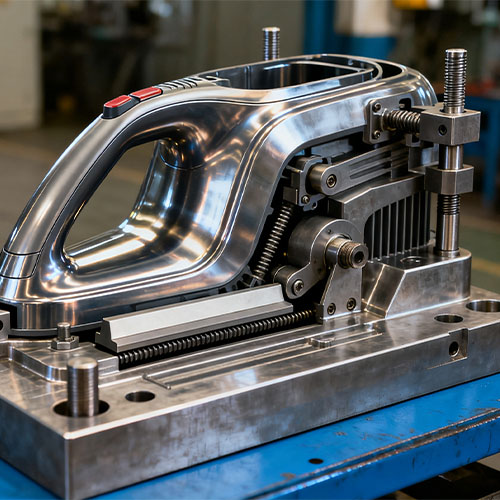

(2) Mold development

Mold material: H13 hot work mold steel (with good wear resistance and a lifespan of ≥ 500000 times) is used for the body shell and dust cup mold; The transparent dust cup mold is made of S136 stainless steel (with good polishing performance); The suction nozzle dual color mold cavity is made of P20 pre hardened steel (compatible with PP+TPU dual color injection molding);

Mold cavity design: Adopting multi cavity or single cavity molds, symmetrical layout ensures uniform filling; For complex structures, a core pulling mechanism is adopted to ensure complete molding;

2. Raw Material Preparation and Injection Molding

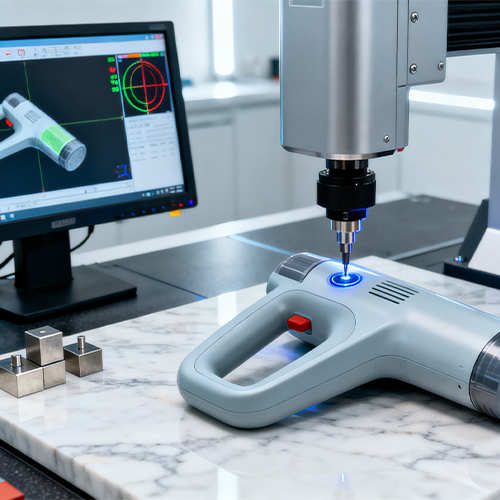

3. Post-Processing and Quality Inspection

P&M Vacuum Cleaner Plastic Injection Moulding(Specification)

P&M Vacuum Cleaner Plastic Injection Moulding Feature And Application

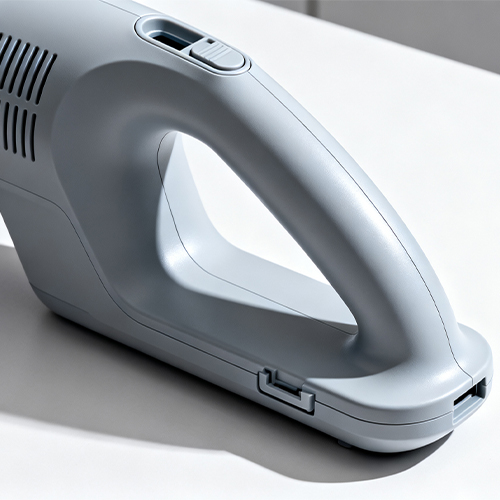

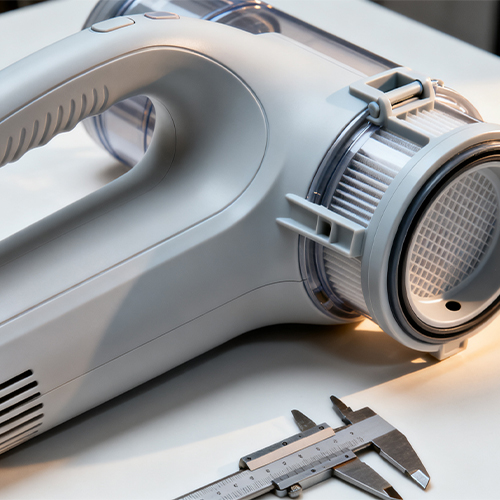

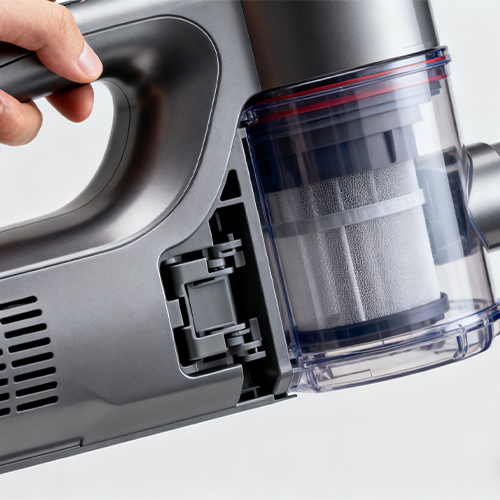

1. Handheld Vacuum Cleaner Scenario

Core Requirements: Lightweight, highly portable, adapting to cleaning of narrow spaces (such as sofa gaps, car interiors), and requiring one-hand operation.

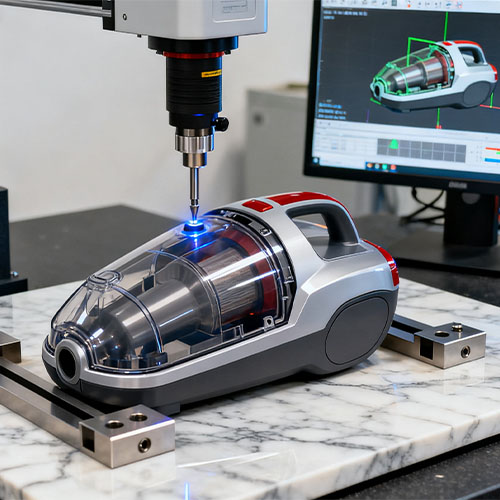

2.Horizontal Vacuum Cleaner Scenario

Core Requirements: Large capacity, strong suction, adapting to cleaning of large-area household floors (living rooms, bedrooms), and balancing mobility and storage capacity.

3. Vertical Vacuum Cleaner Scenario

Core requirements: upright storage, efficient cleaning, compatible with upright push and suction (such as carpets and floor tiles), requiring self-supporting function.

4. Wireless Intelligent Vacuum Cleaner Scenario

Core requirements: Intelligent navigation, automatic cleaning, suitable for unmanned cleaning of the entire house, compatible with sensor and algorithm integration.
